Rear Bumper: Components

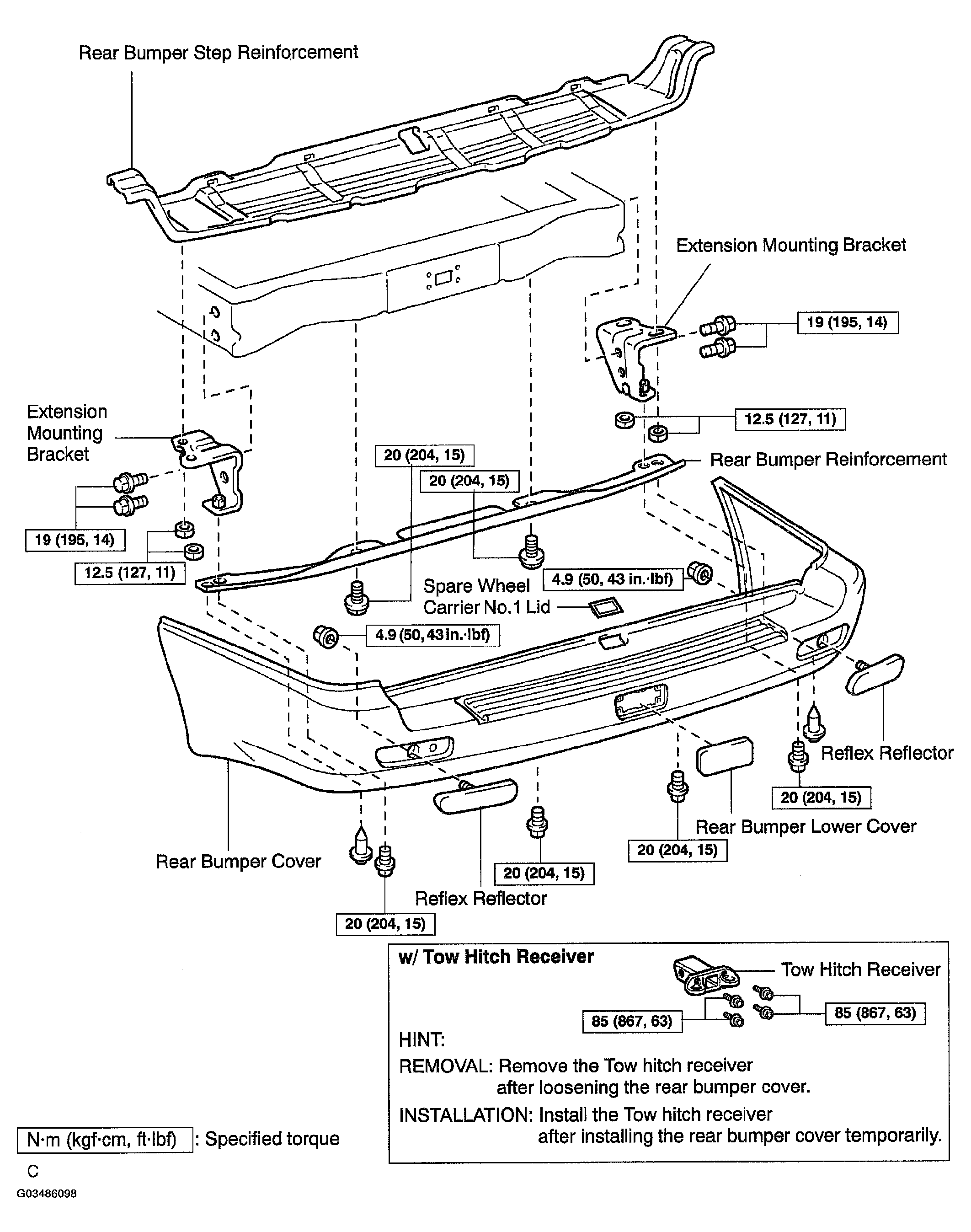

Fig 1: Exploded View Of Rear Bumper

G03486098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
