Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Lower Back Door >> Components

Lower Back Door: Components

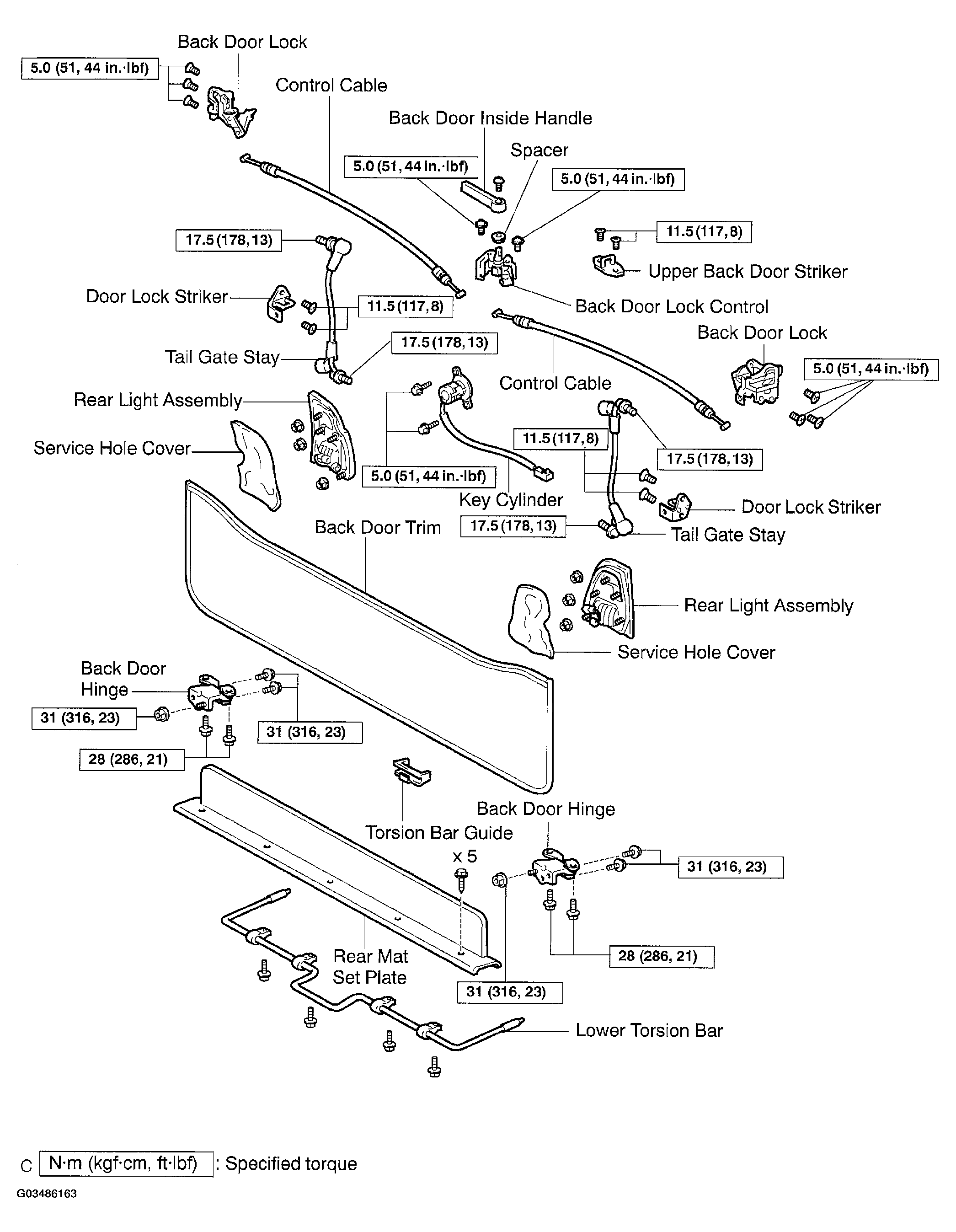

Fig 1: Exploded View Of Lower Back Door

G03486163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
