Lower Back Door: Adjustment

Loosen the door side hinge bolts to adjust it.

Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

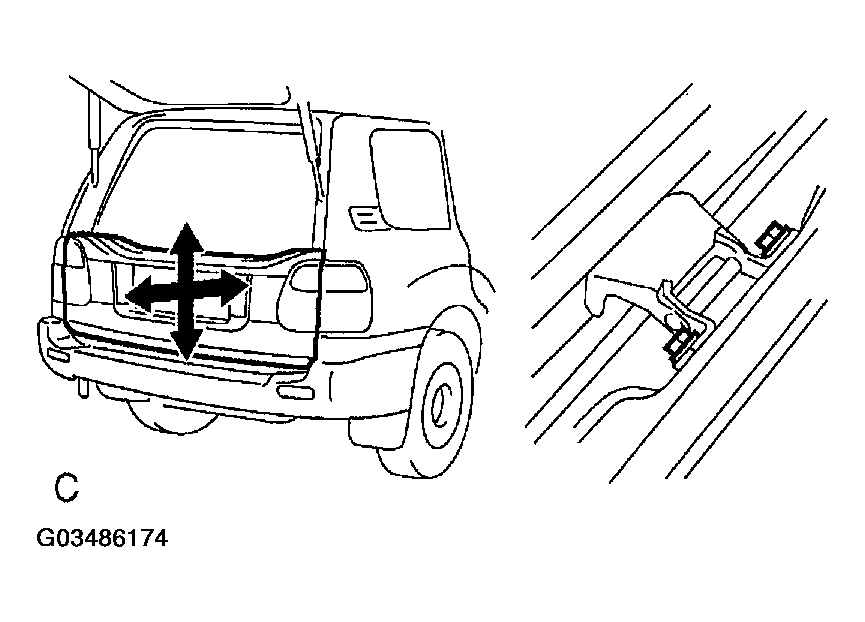

Fig 1: Adjusting Door In Forward/Rearward & Vertical Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Loosen the body side hinge bolts and the nuts to adjust it.

Torque: 31 N.m (316 kgf.cm, 23 ft.lbf)

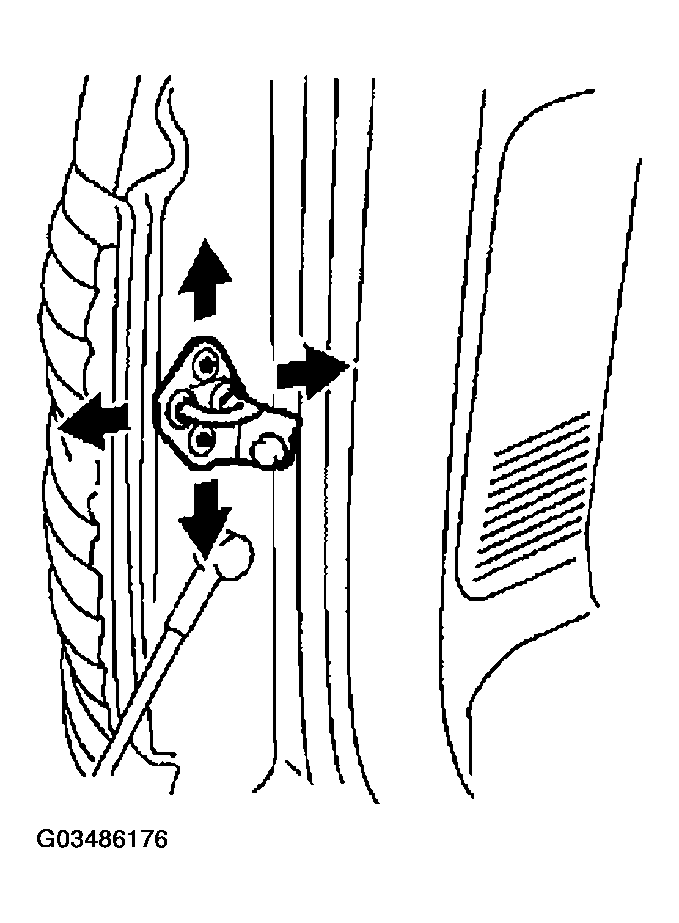

Fig 2: Adjusting Door In Left/Right & Vertical Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the door fits, and door linkages are adjusted correctly.
2. Using a Torx wrench, loosen the door lock striker mounting screws.

   Torx wrench: T40 (Part No. 09042-00020 or locally manufactured tool)

   Torque: 11.5 N.m (117 kgf.cm, 8 ft.lbf)

3. Using a plastic hammer, tap the striker to adjust it.

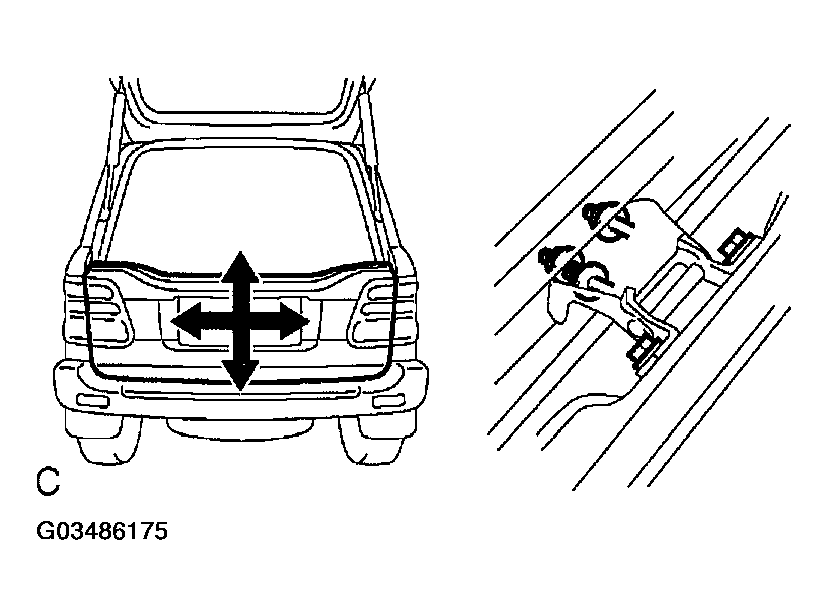

   Fig 3: Adjusting Door Lock Striker
