Exterior/Interior Trim: Hood: Components

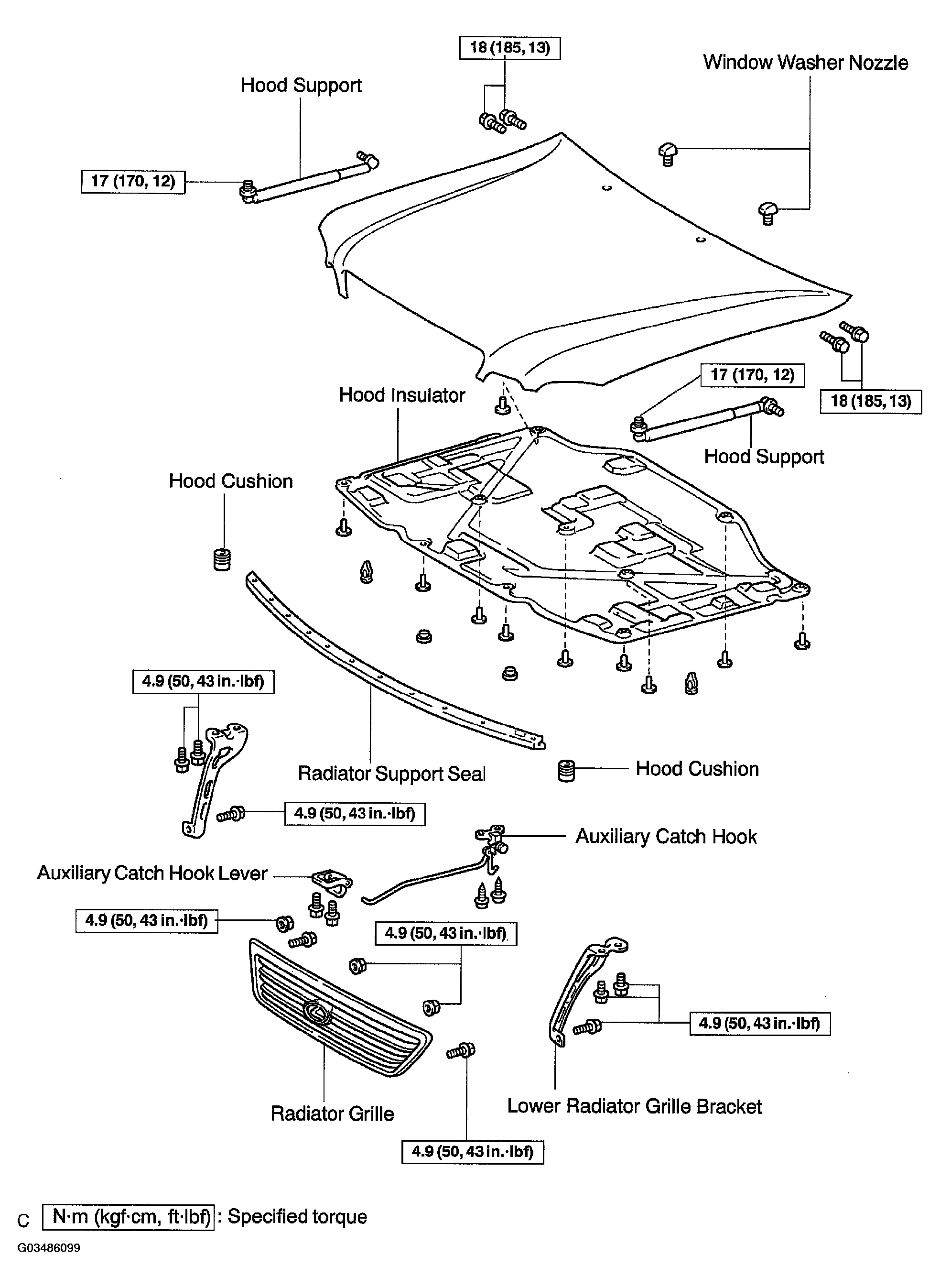

Fig 1: Exploded View Of Hood

G03486099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
