Hood Lock Control: Removal

REMOVE THESE PARTS:
1. Fender liner
2. Hood release lever
3. Hood lock
REMOVE HOOD LOCK CONTROL CABLE
1. Using a screwdriver, disconnect the cable from the clamps.
  HINT:

  Tape the screwdriver tip before use.

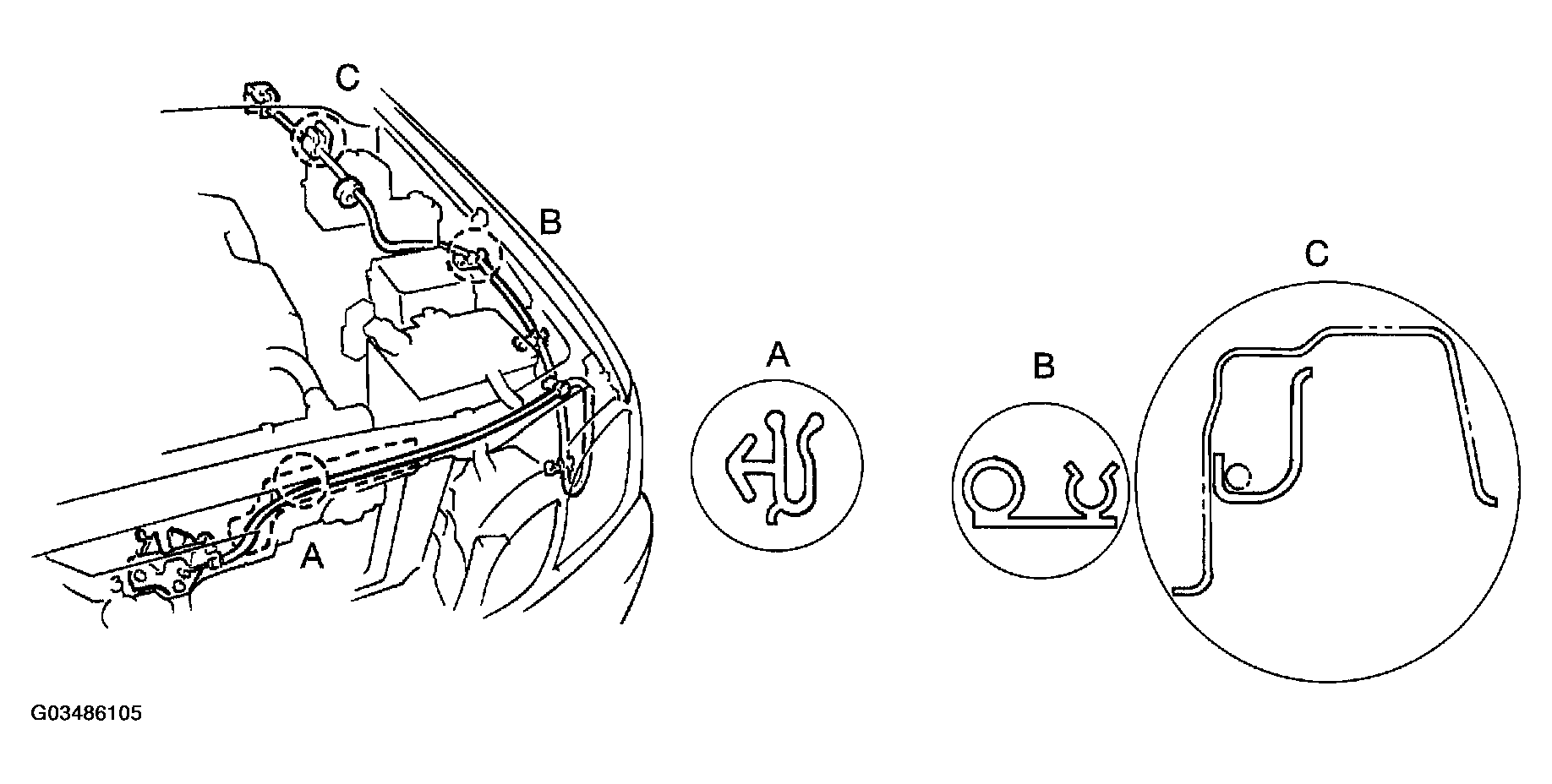

  Fig 1: Disconnecting Cable From Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, pry out the cable stopper from the grommet.
  HINT:
  - Tape the screwdriver tip before use.
  - Do not damage the grommet with the screwdriver.

    Fig 2: Prying Out Cable Stopper From Grommet
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Pull the cable from the front wheel housing to remove it.

Fig 3: Removing Cable From Front Wheel Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
