Front Bumper: Components

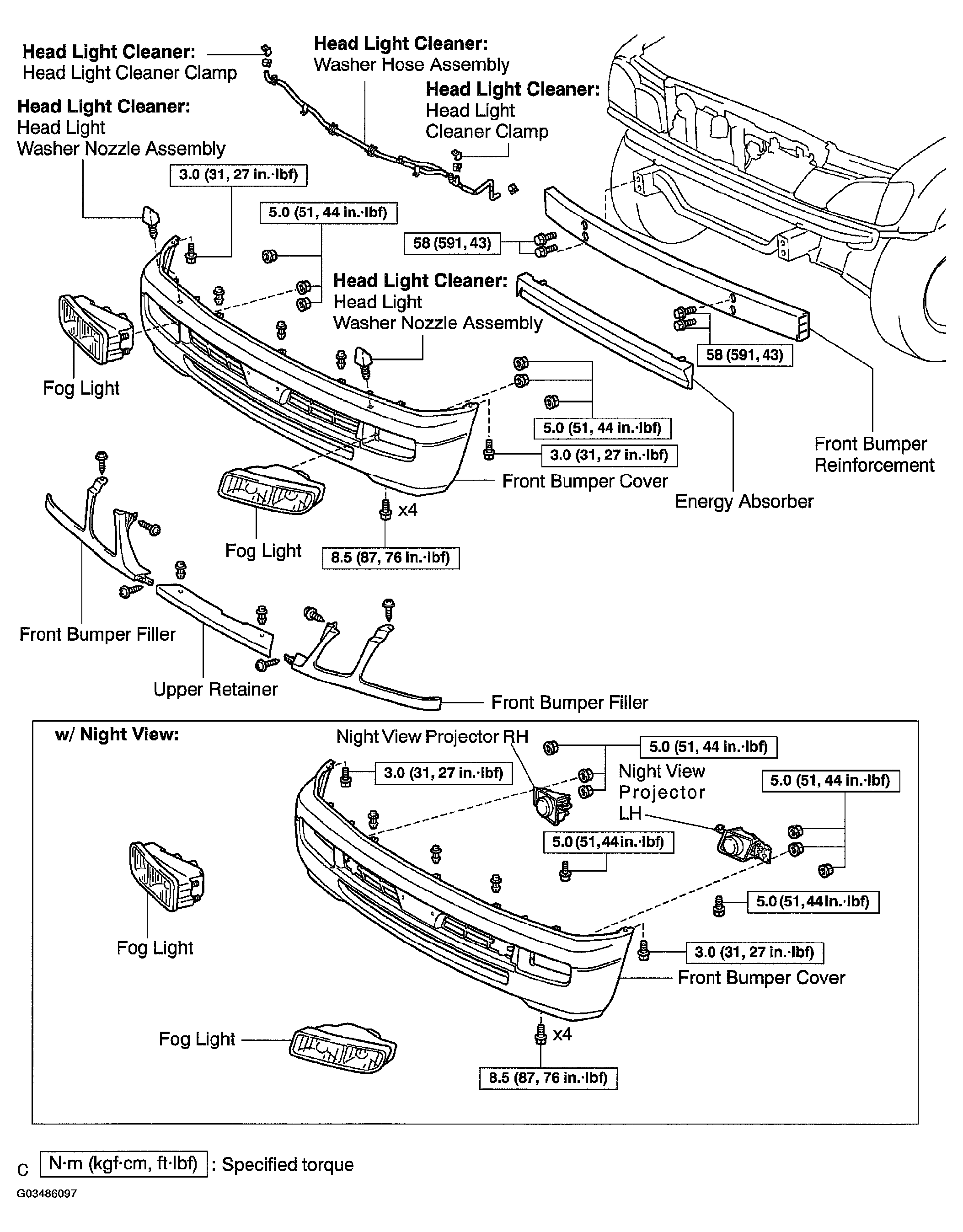

Fig 1: Exploded View Of Front Bumper

G03486097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
