Automatic Transmission ASSY (A761E): Components

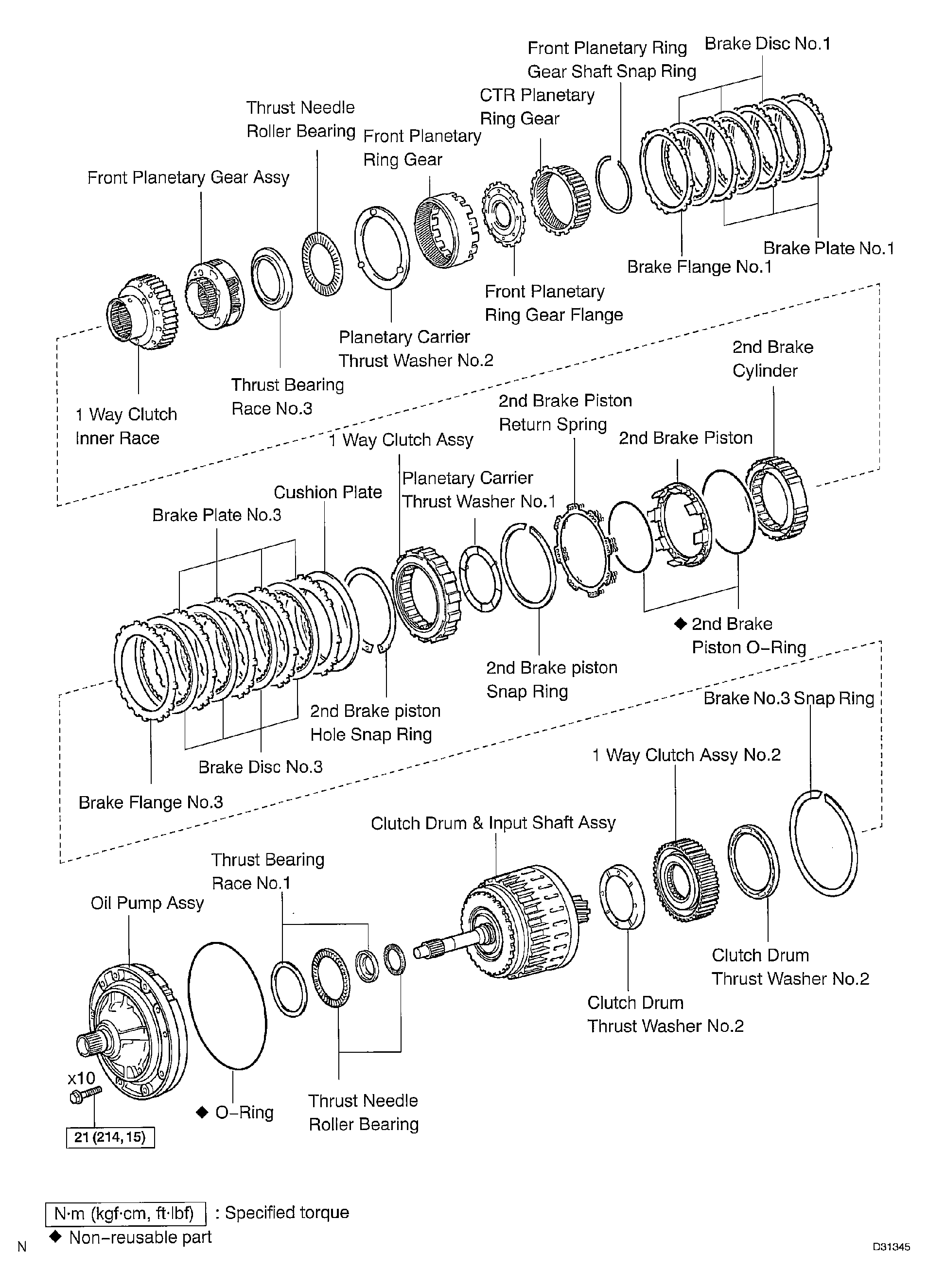

Fig 1: Identifying Components Automatic Transmission Assy (A761E) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

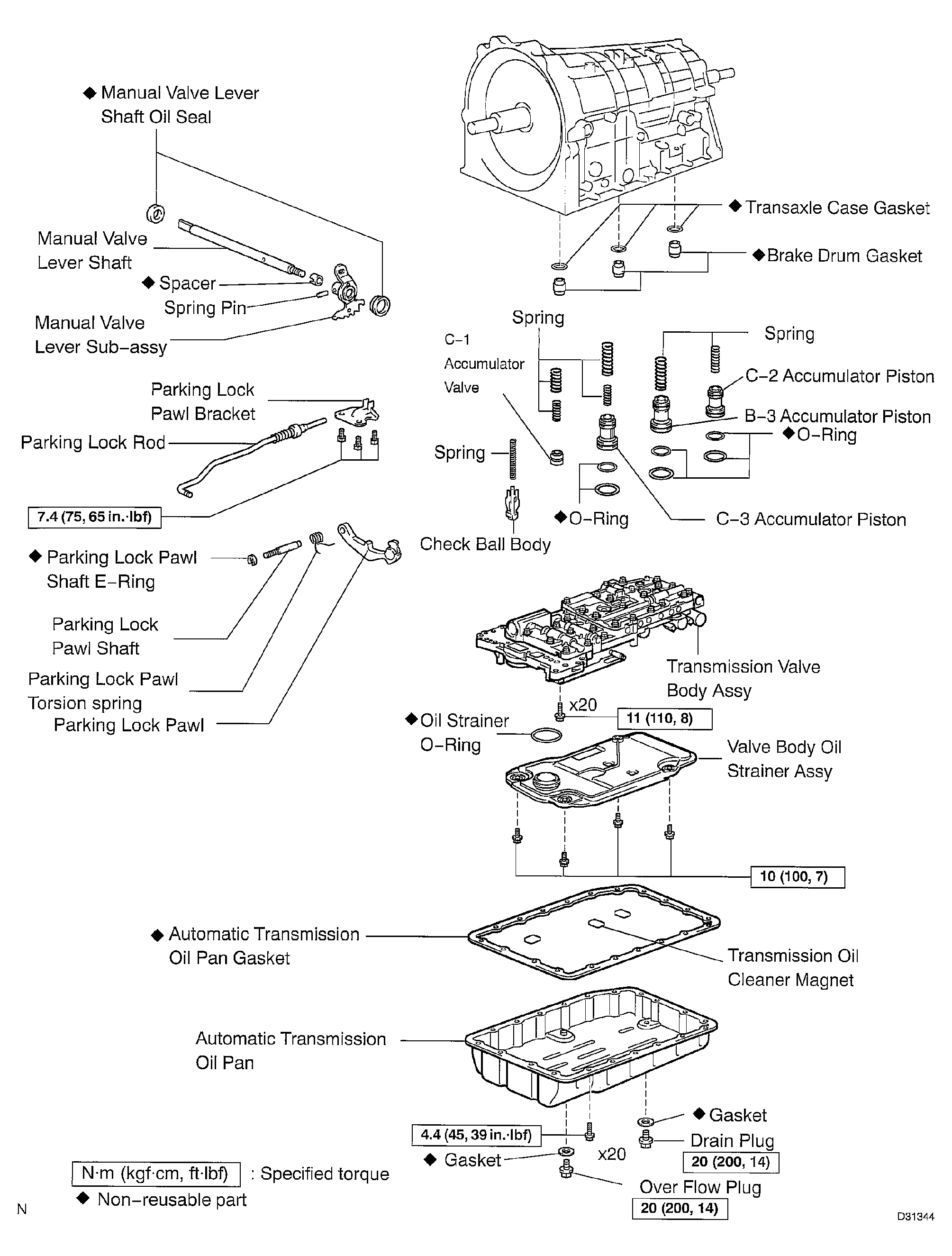

Fig 2: Identifying Components Automatic Transmission Assy (A761E) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

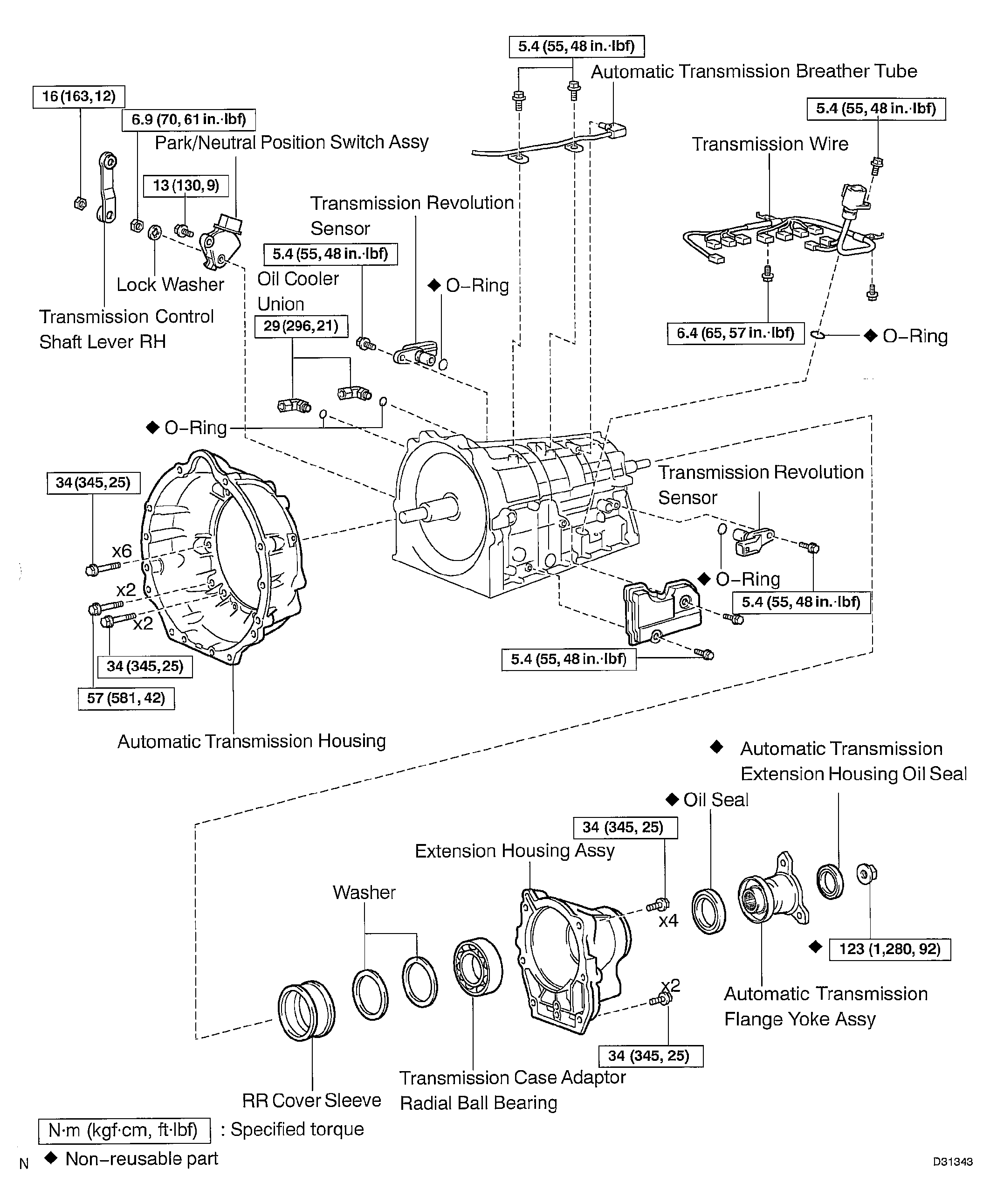

Fig 3: Identifying Components Automatic Transmission Assy (A761E) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

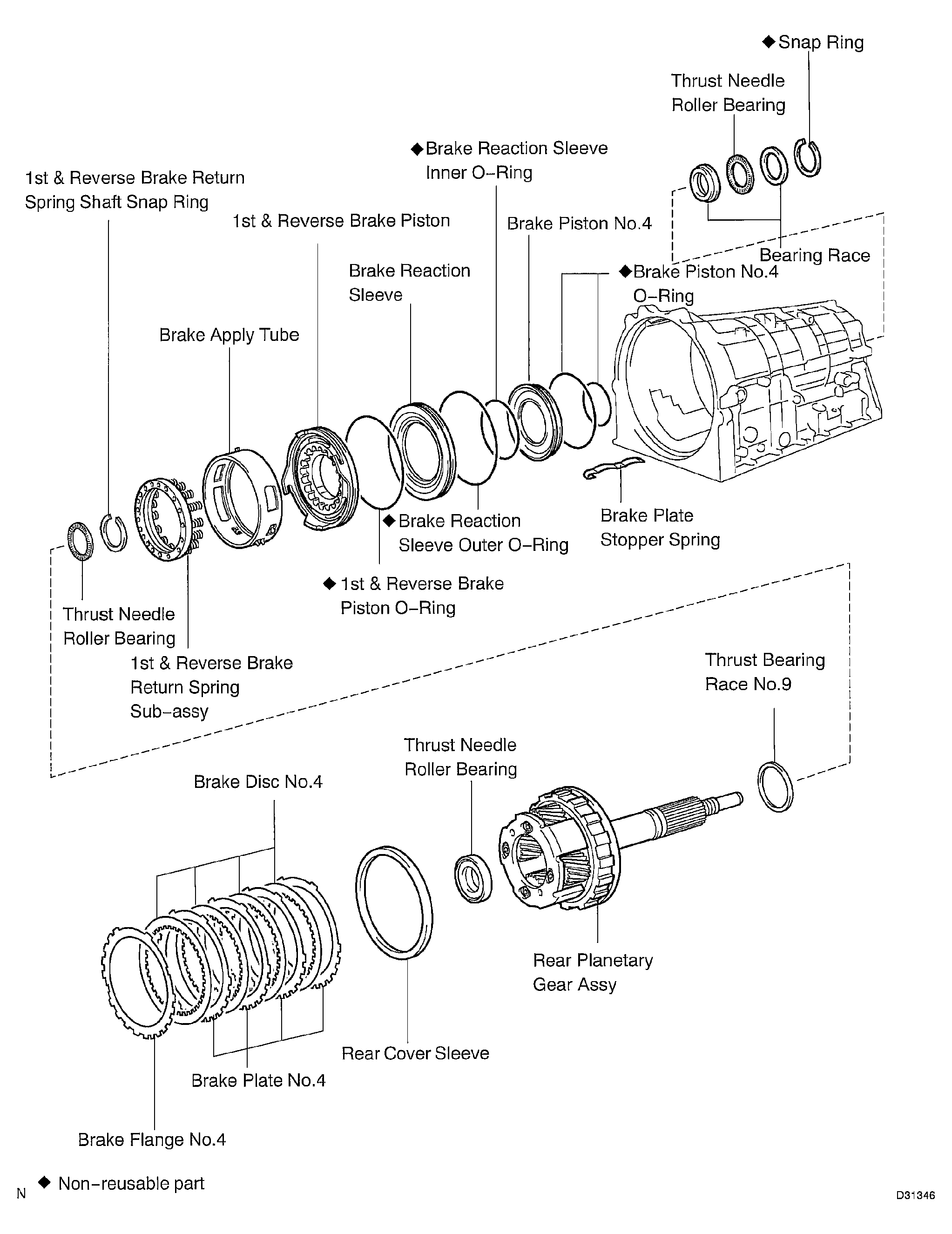

Fig 4: Identifying Components Automatic Transmission Assy (A761E) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

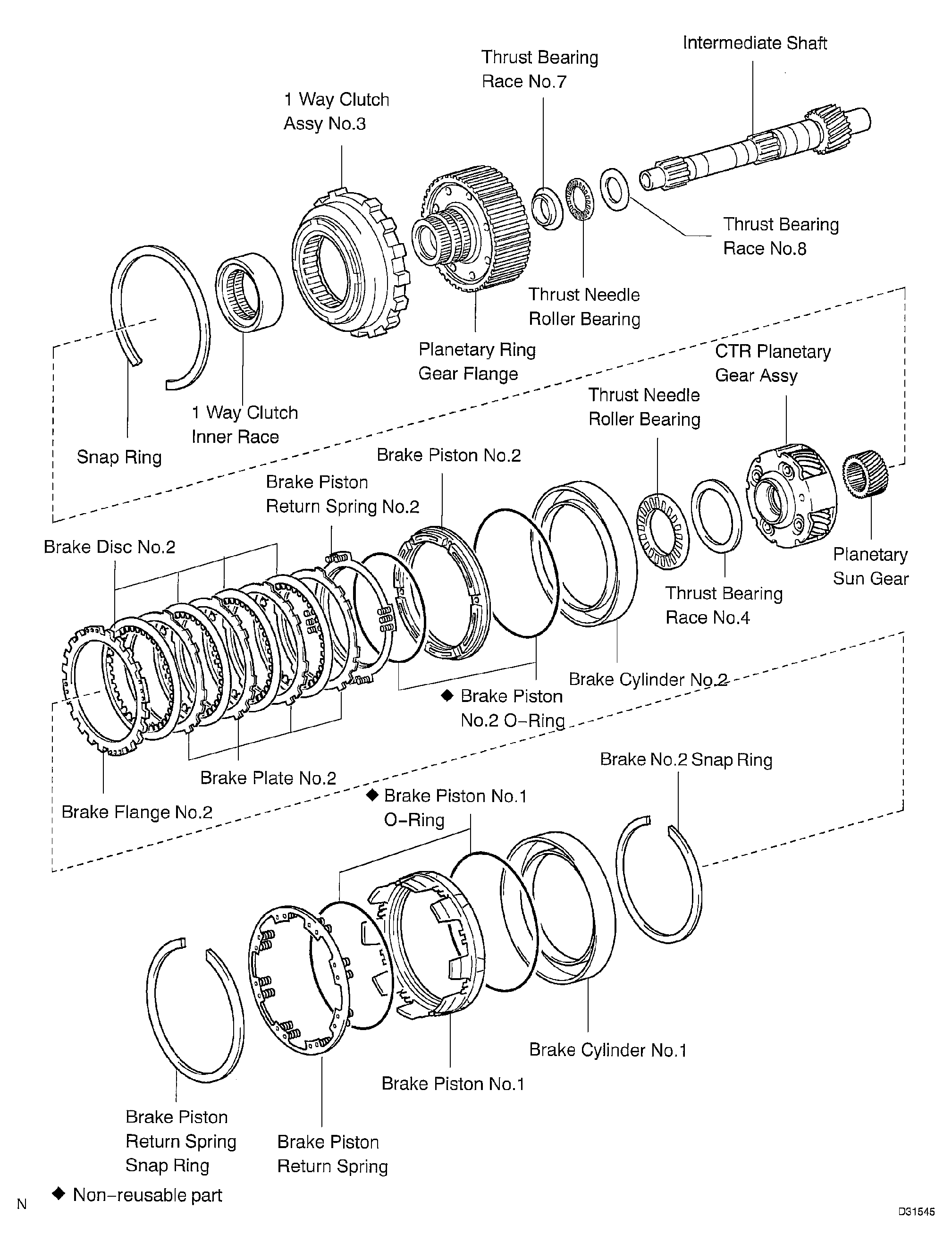

Fig 5: Identifying Components Automatic Transmission Assy (A761E) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
