Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt Warning System - Diagnosis >> Location

Seat Belt Warning System - Diagnosis: Location

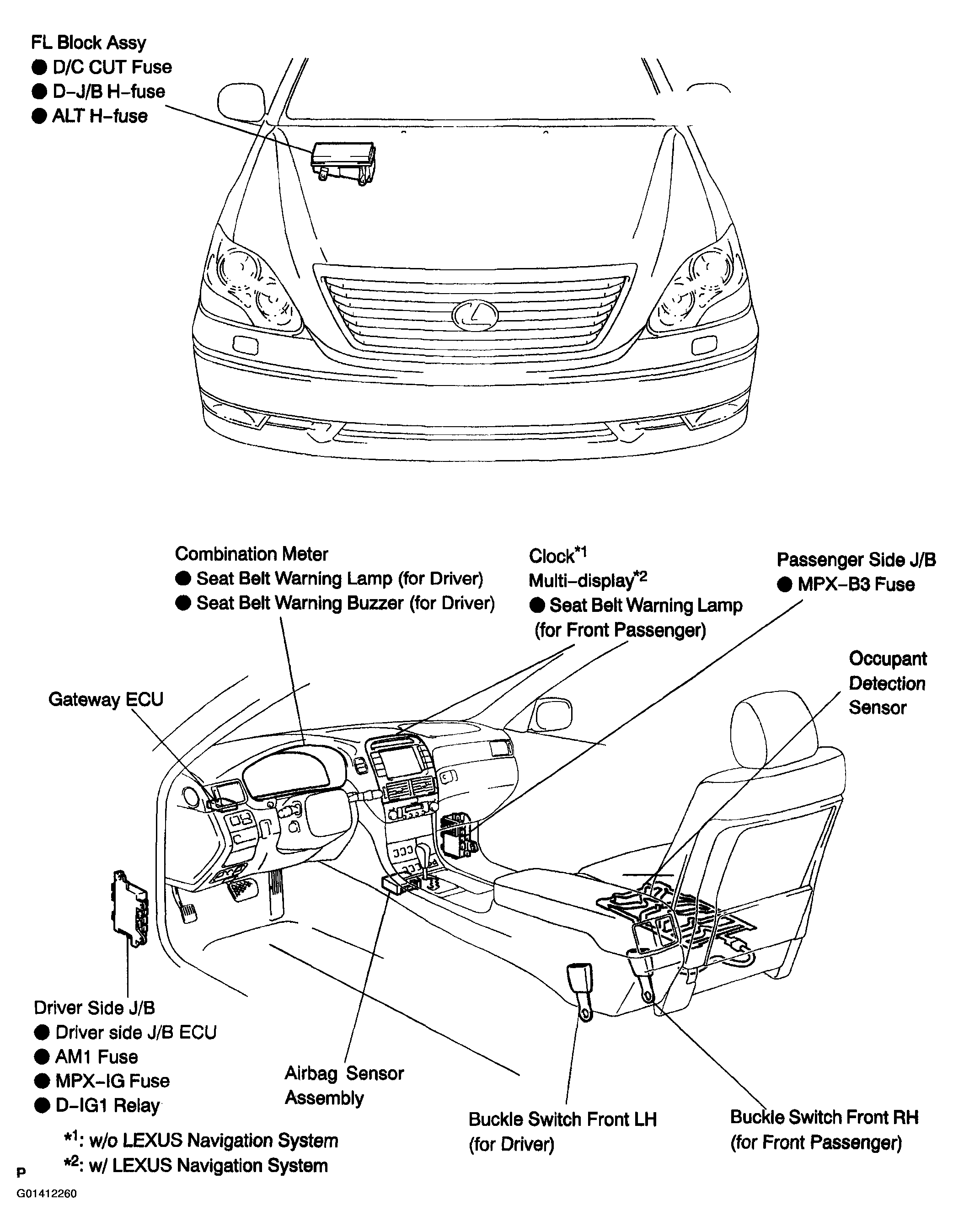

Fig 1: Identifying Component Location Of Seat Belt Warning System

G01412260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
