Window Lock Signal Circuit: Wiring Diagram

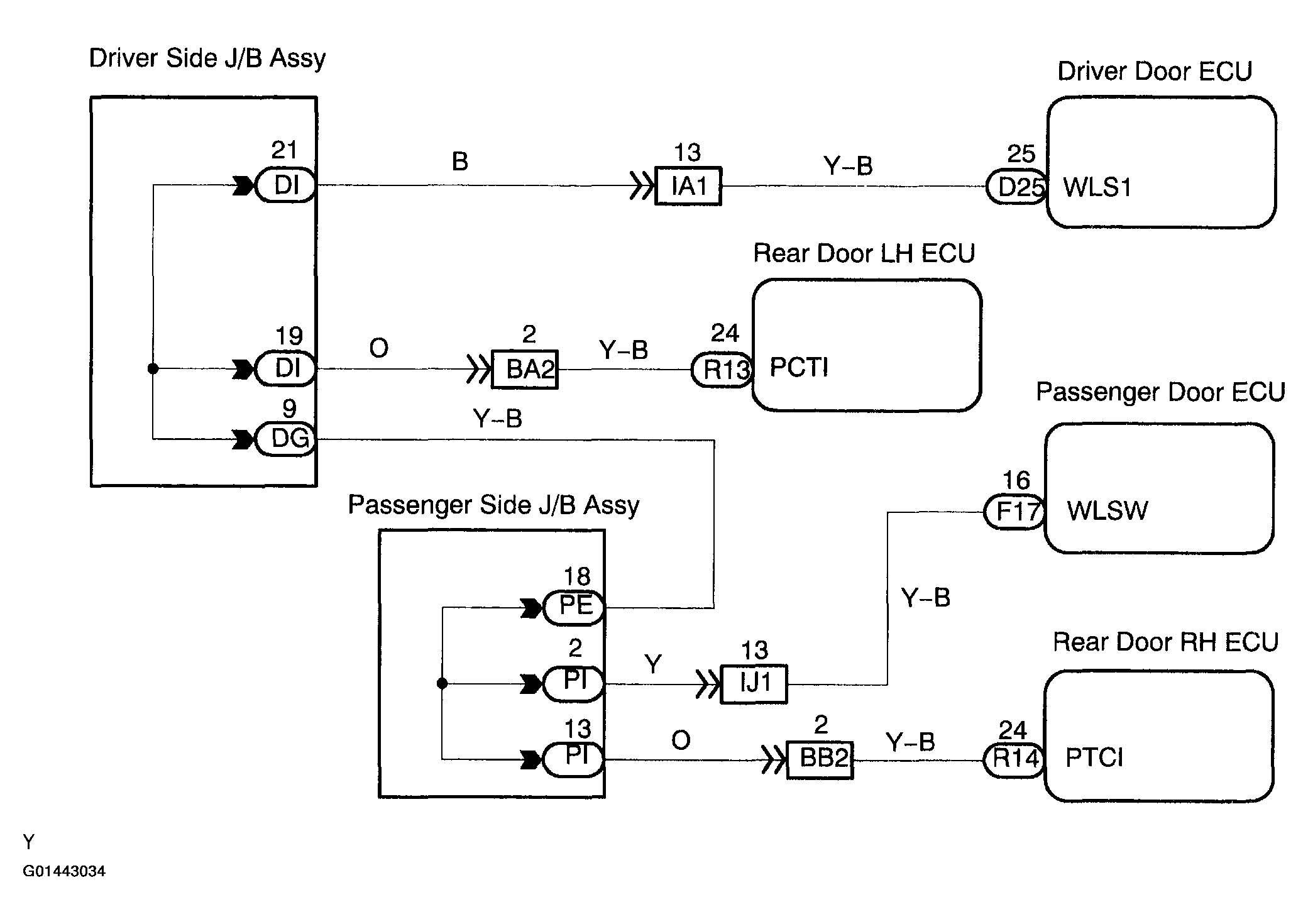

Fig 1: Window Lock Signal Circuit - Wiring Diagram

G01443034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
