Power Window Master Switch Circuit: Wiring Diagram

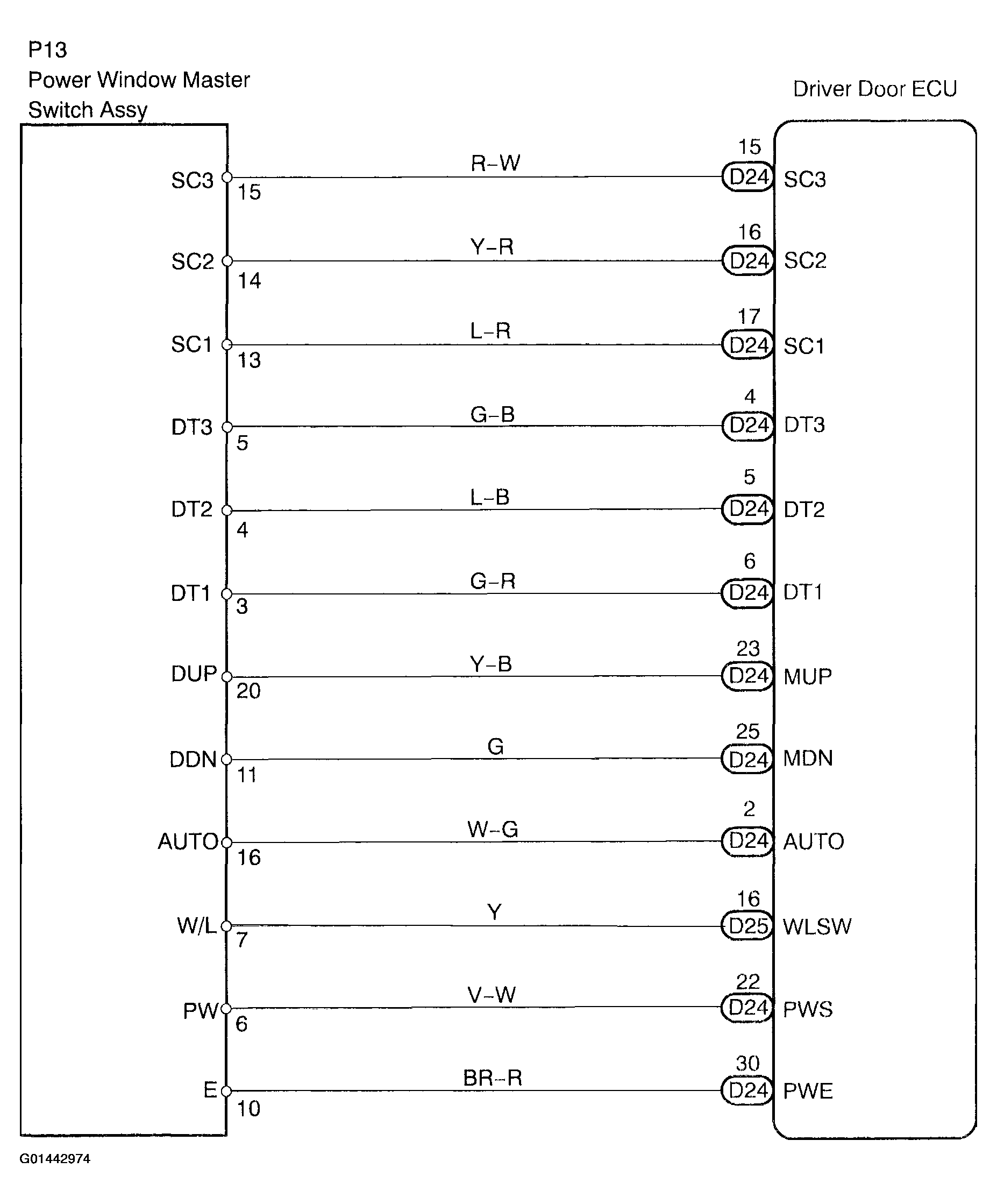

Fig 1: Power Window Master Switch Circuit - Wiring Diagram

G01442974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
