DTC B1231, B1232: Jam Protection Limit Switch Circuit On Driver Side Door, Jam Protection Pulse Sensor Circuit On Driver Side Door: Wiring Diagram

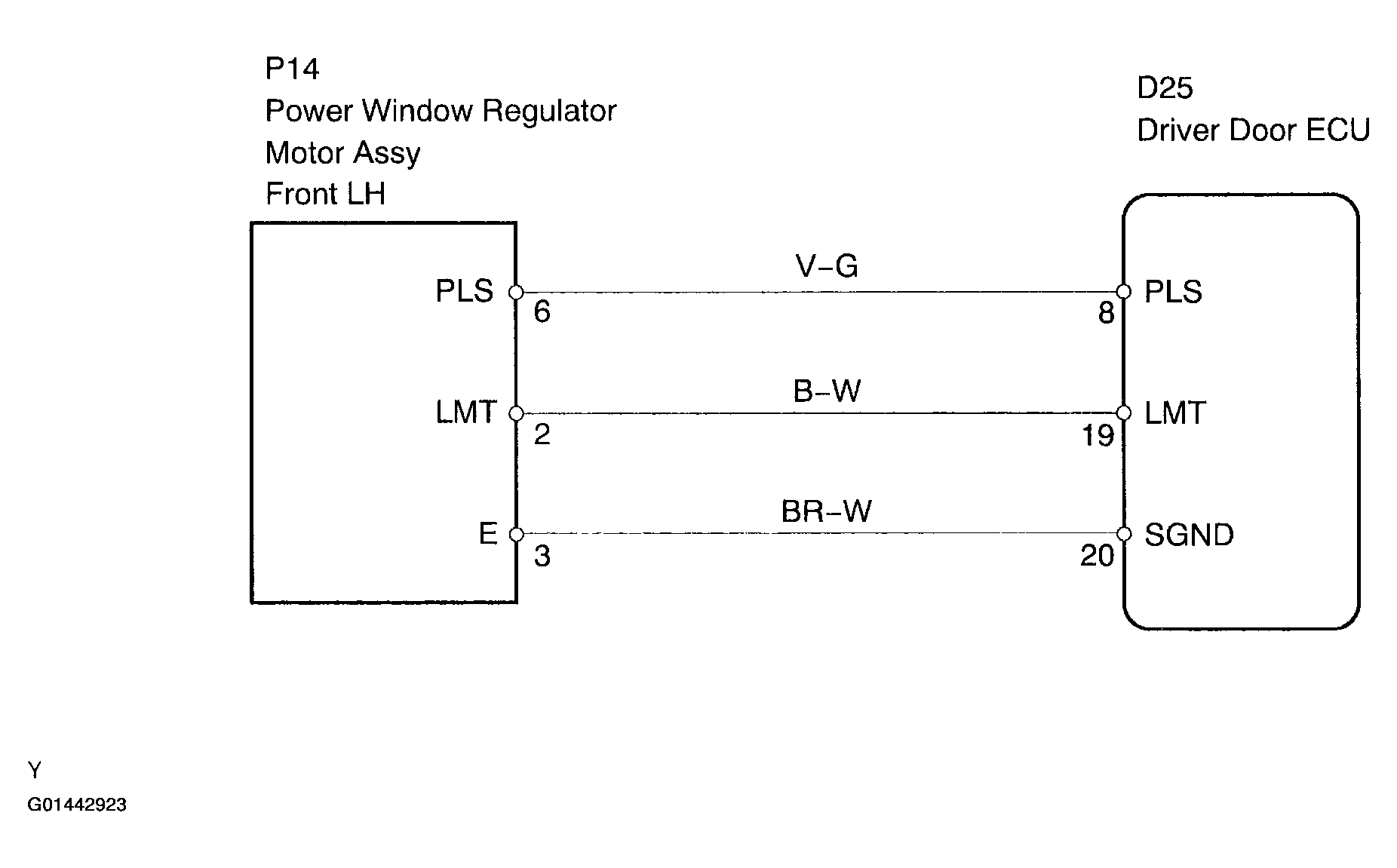

Fig 1: Jam Protection Limit Switch\Pulse Sensor Circuit On Driver Side Door - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
