Circuit Description

This DTC is output when any of the switches on the power window regulator switch assy is operated.

HINT:

• If this DTC is output when a switch is not operated, one of the switches may be stuck.
• If this DTC is not output when a switch is operated, the switch's contact is defective.

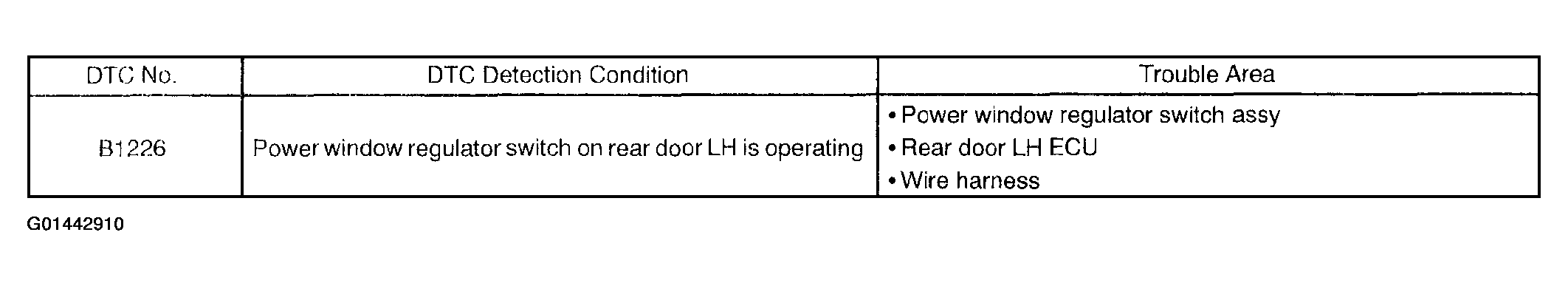

Fig 1: Power Window Switch Circuit On Rear Door LH - Circuit Description Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
