Lexus
>>
2004
>>
LS 430
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat Heater System
>>
System Diagram
System Diagram

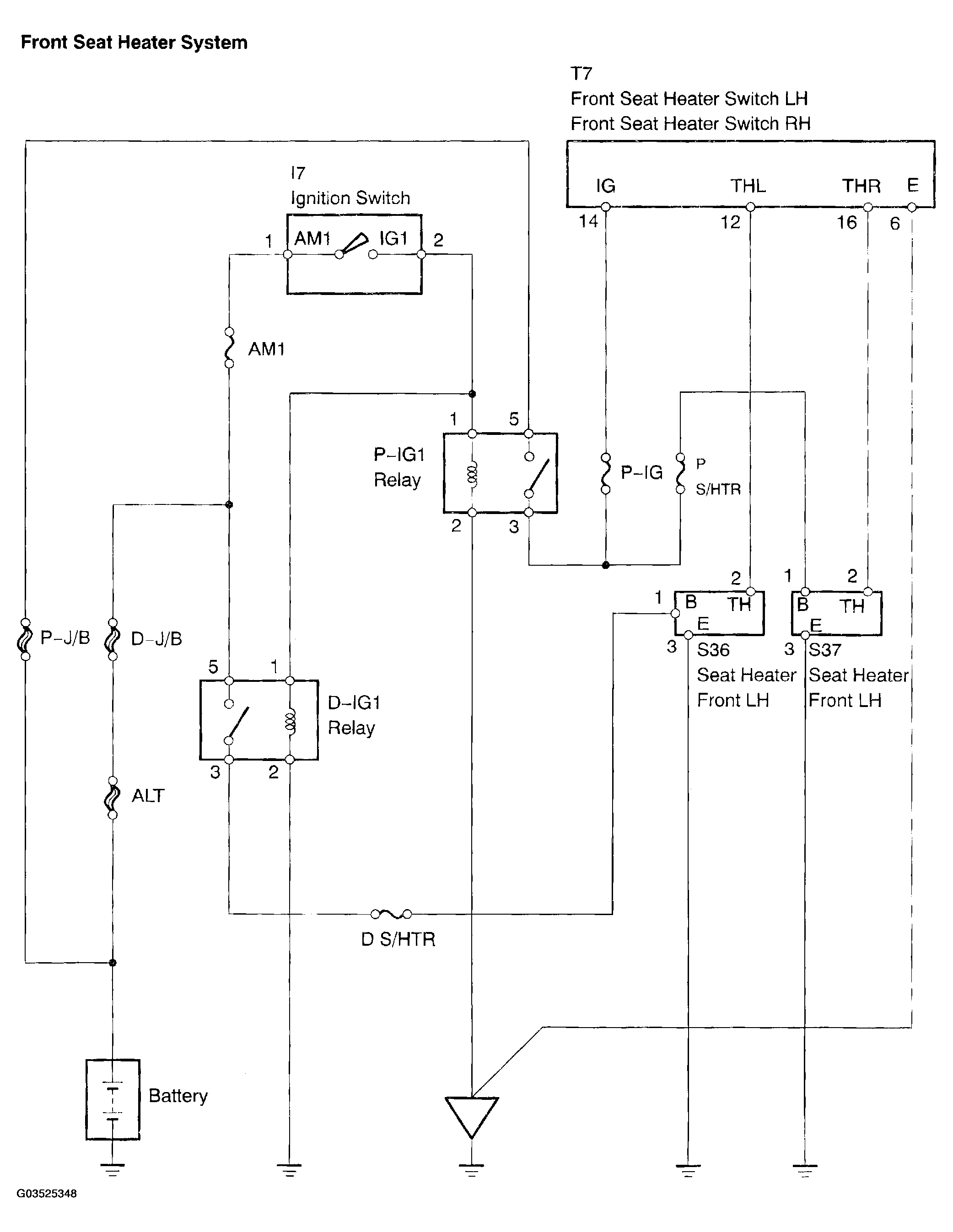

Fig 1: Front Seat Heater System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

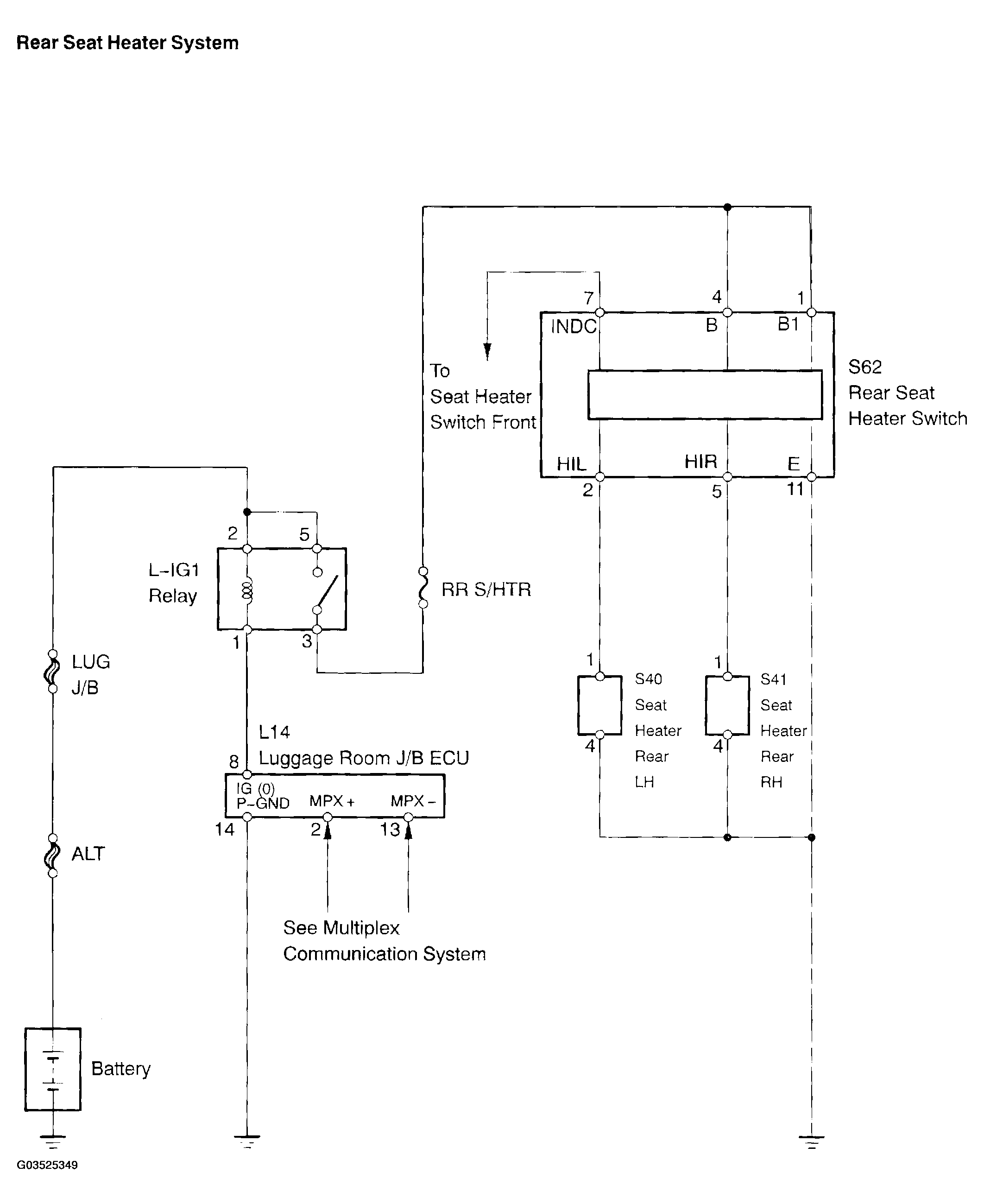

Fig 2: Rear Seat Heater System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
