Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heater System >> Location

Seat Heater System: Location

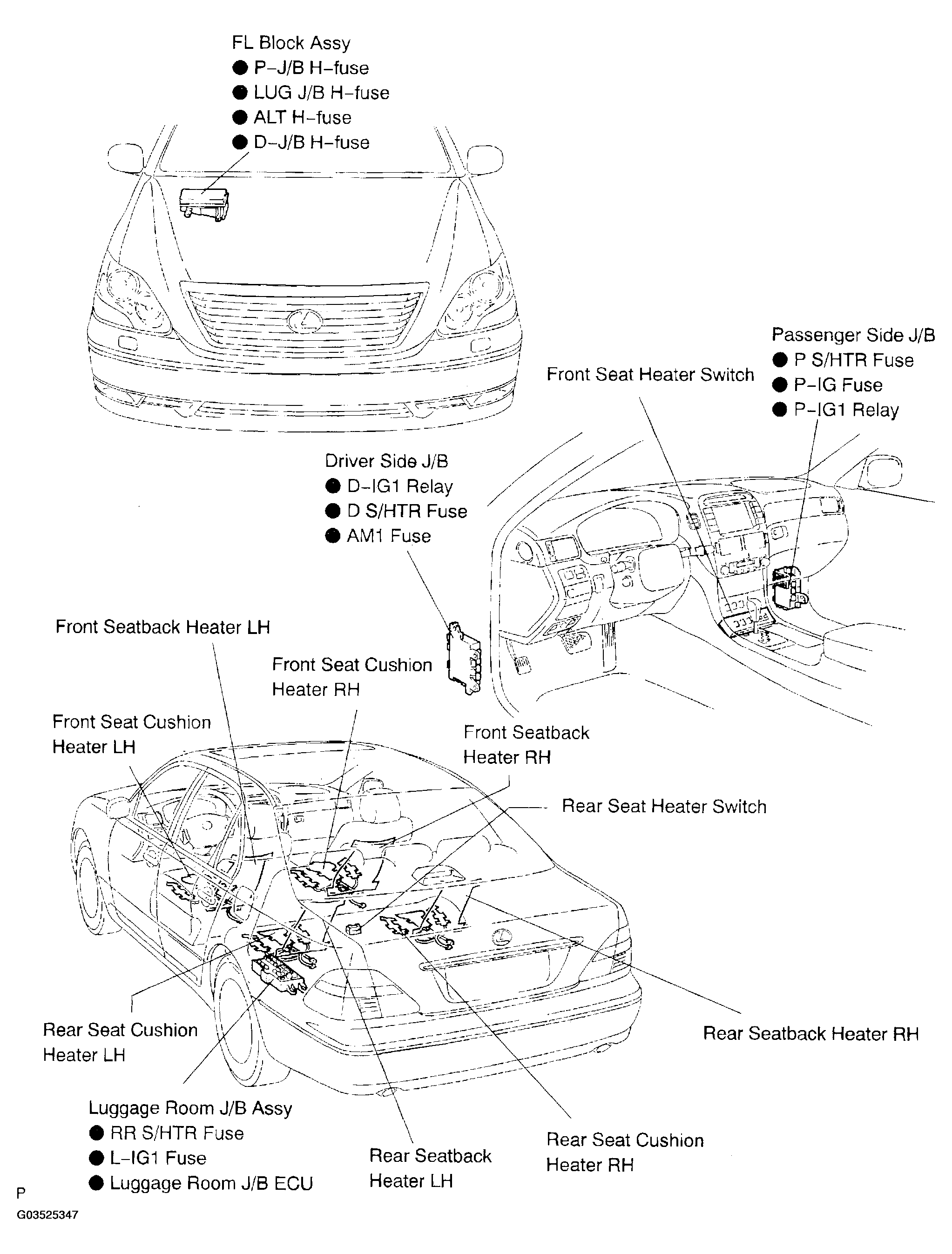

Fig 1: Locating Seat Heater System Location

G03525347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
