Front Power Seat Control System - Diagnosis: Location

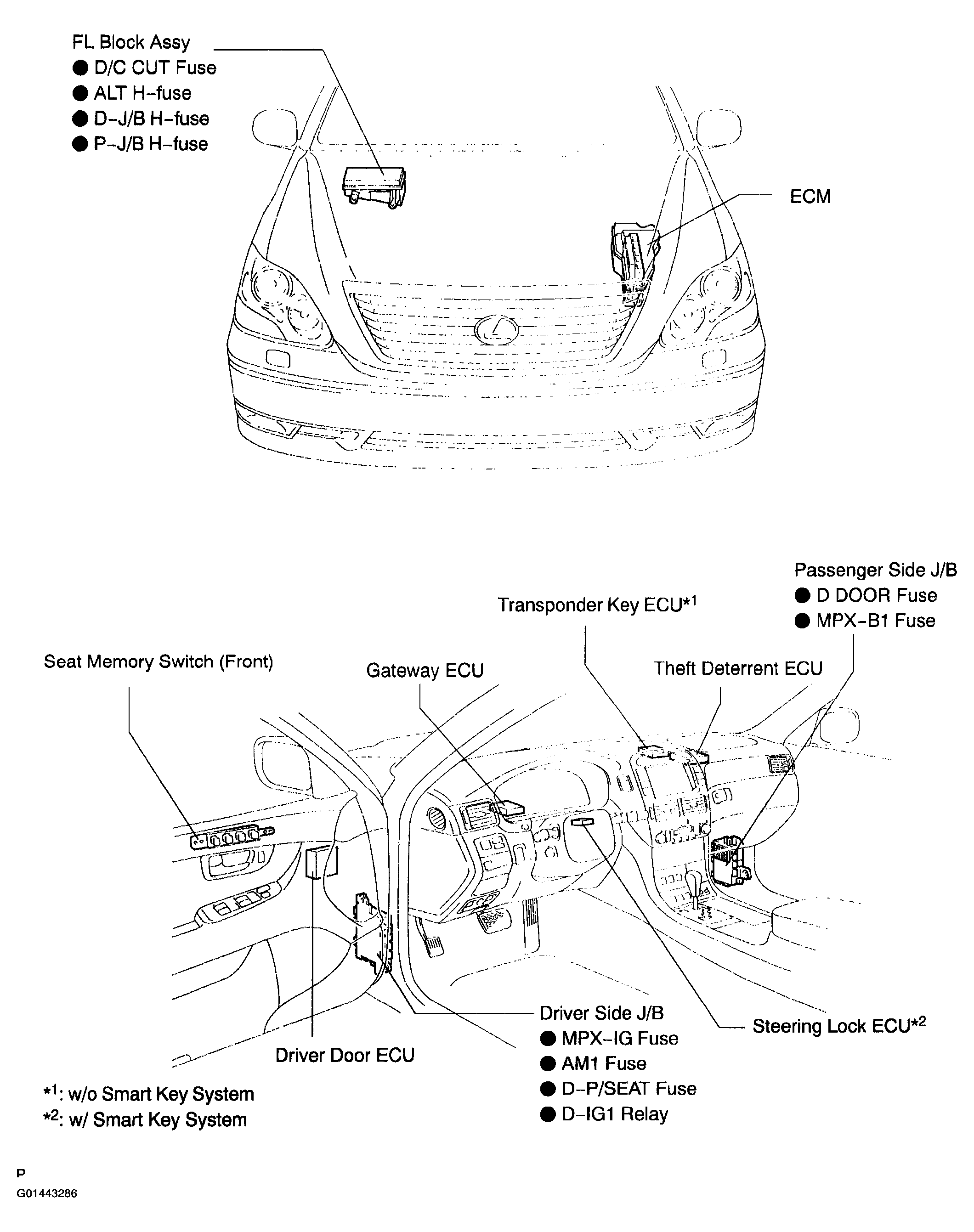

Fig 1: Identifying Front Power Seat Control System Components Location (1 Of 2)
G01443286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

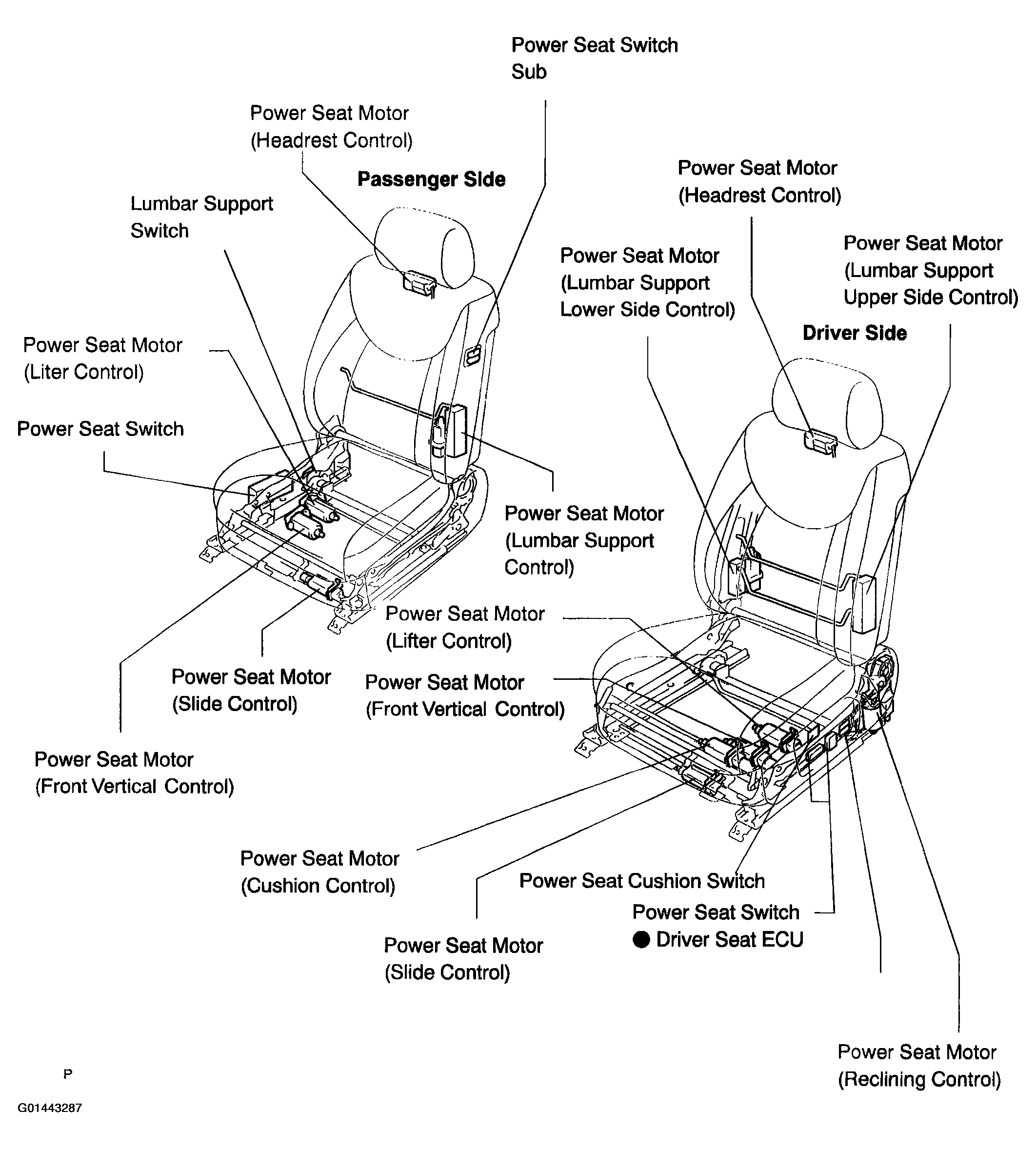

Fig 2: Identifying Front Power Seat Control System Components Location (2 Of 2)
G01443287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
