Front No.1 Speaker ASSY: Replacement

HINT:

• SEE: ADJUSTMENT .
• SEE: LOCATION
• Installation is in the reverse order of removal.
• The procedure for the left side is the same as that for the right side. The procedure for right side is shown below.

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (SEE  OVERHAUL  )
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL RH (SEE  OVERHAUL  )
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY RH (SEE  OVERHAUL  )

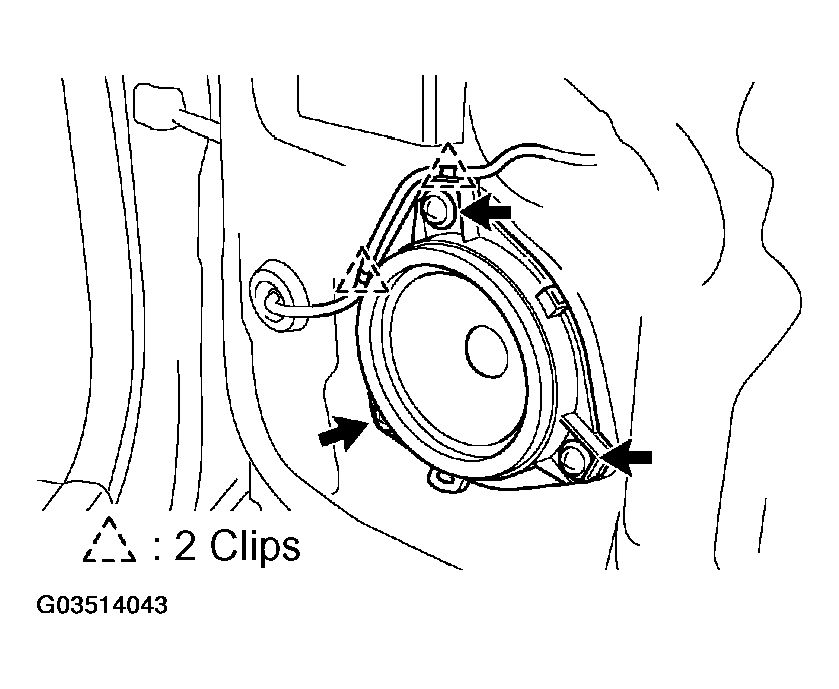

   Fig 1: Removing Screws And Front No.1 Speaker Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE FRONT NO.1 SPEAKER ASSY
   1. Disconnect the connector.
   2. Disengage the 2 clips.
   3. Remove the 3 screws and front No.1 speaker assy.
