Driving Position Memory Switch Circuit (W/ Memory): Wiring Diagram

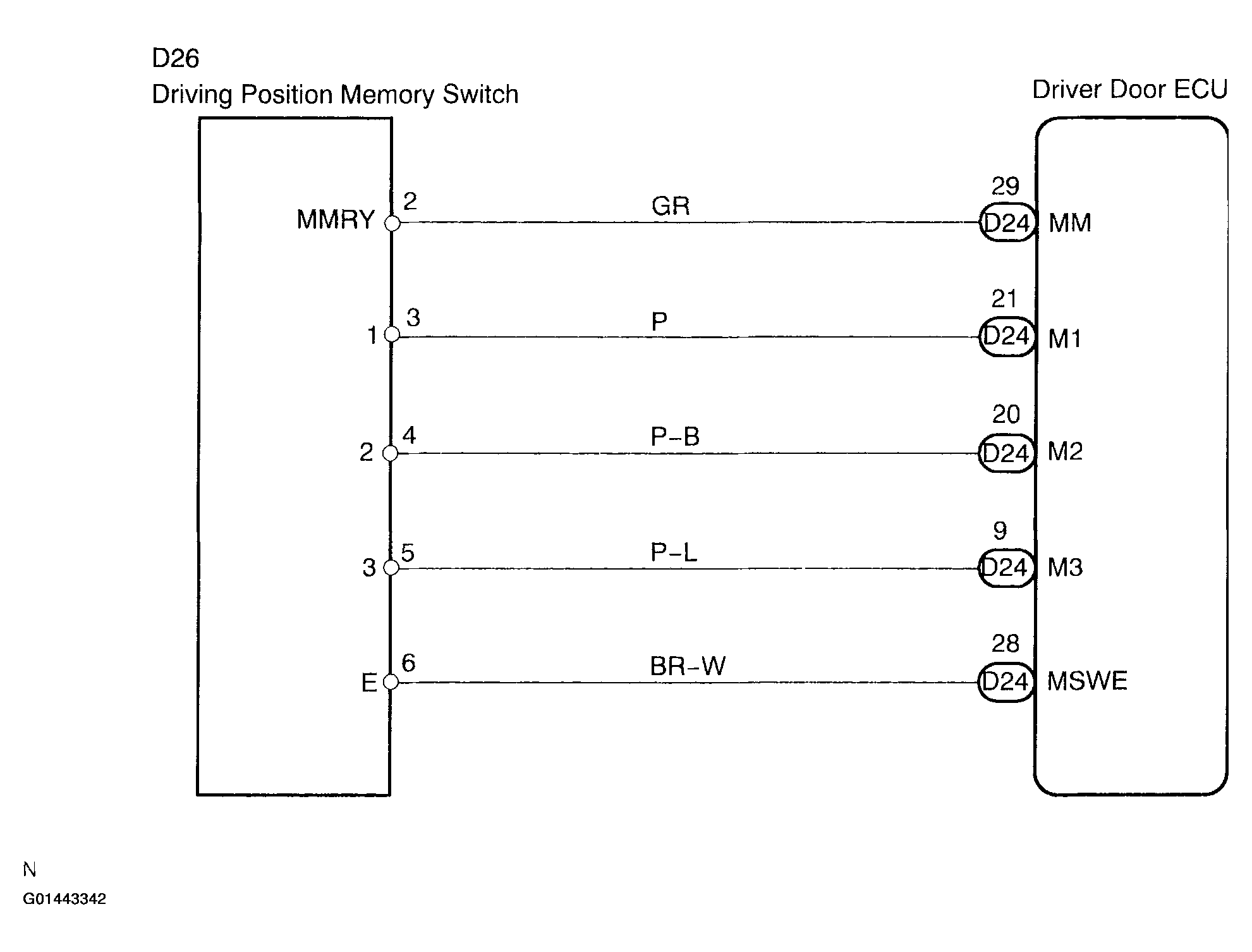

Fig 1: Driving Position Memory Switch Circuit (W/ Memory) - Wiring Diagram

G01443342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
