Manual Transmission Unit: Components

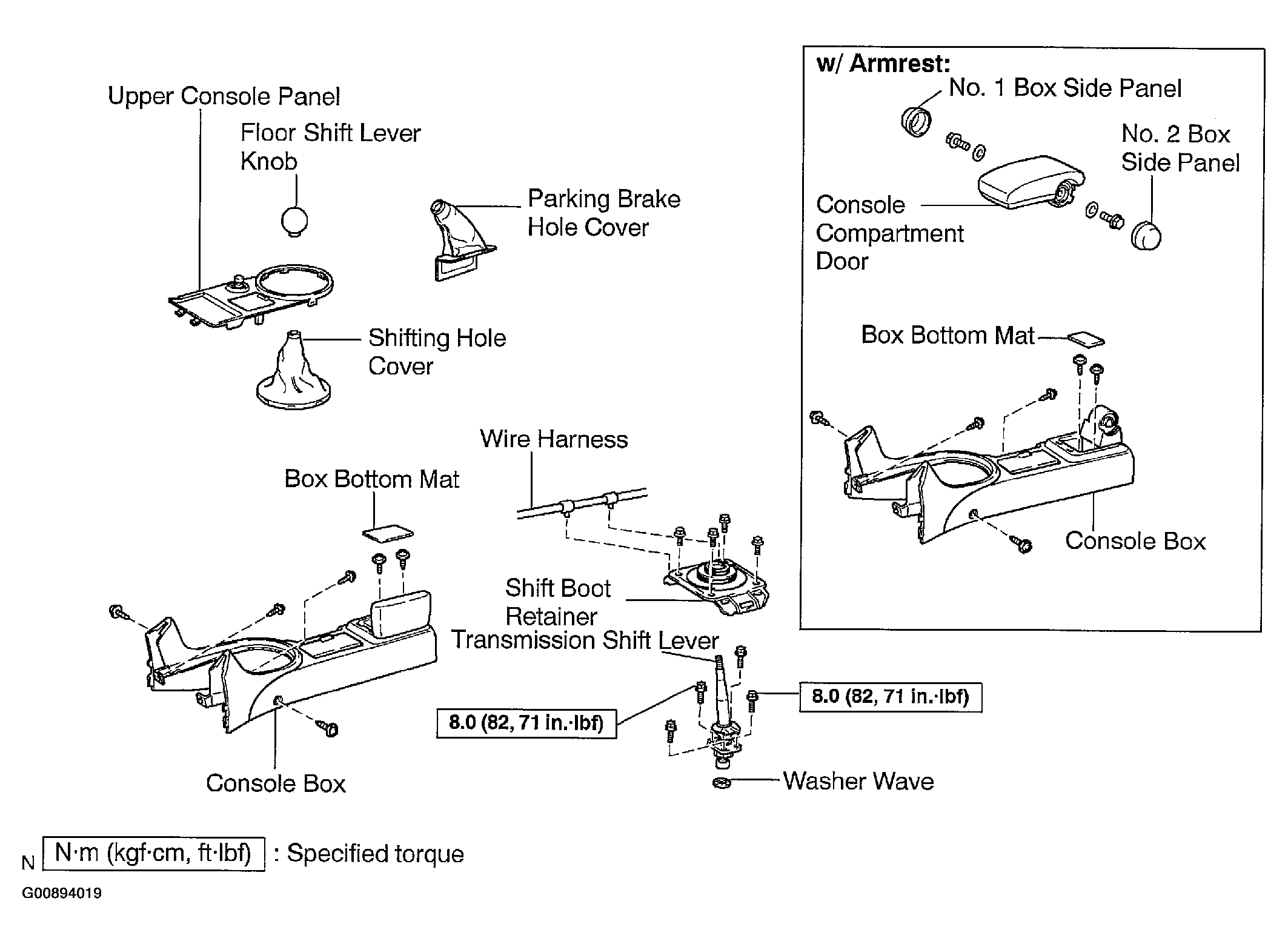

Fig 1: Identifying Manual Transmission Unit Components (1 Of 3)
G00894019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

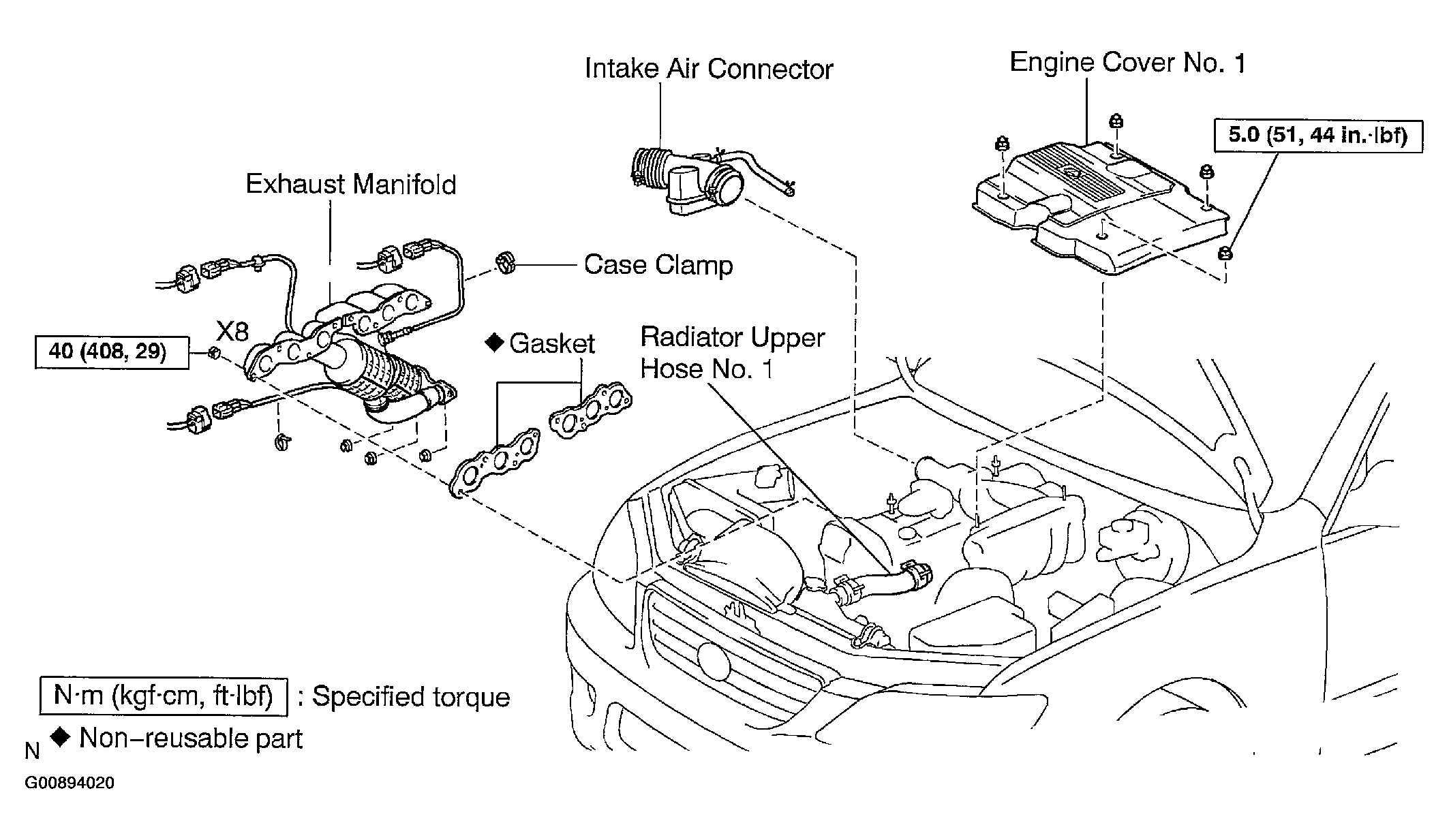

Fig 2: Identifying Manual Transmission Unit Components (2 Of 3)
G00894020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

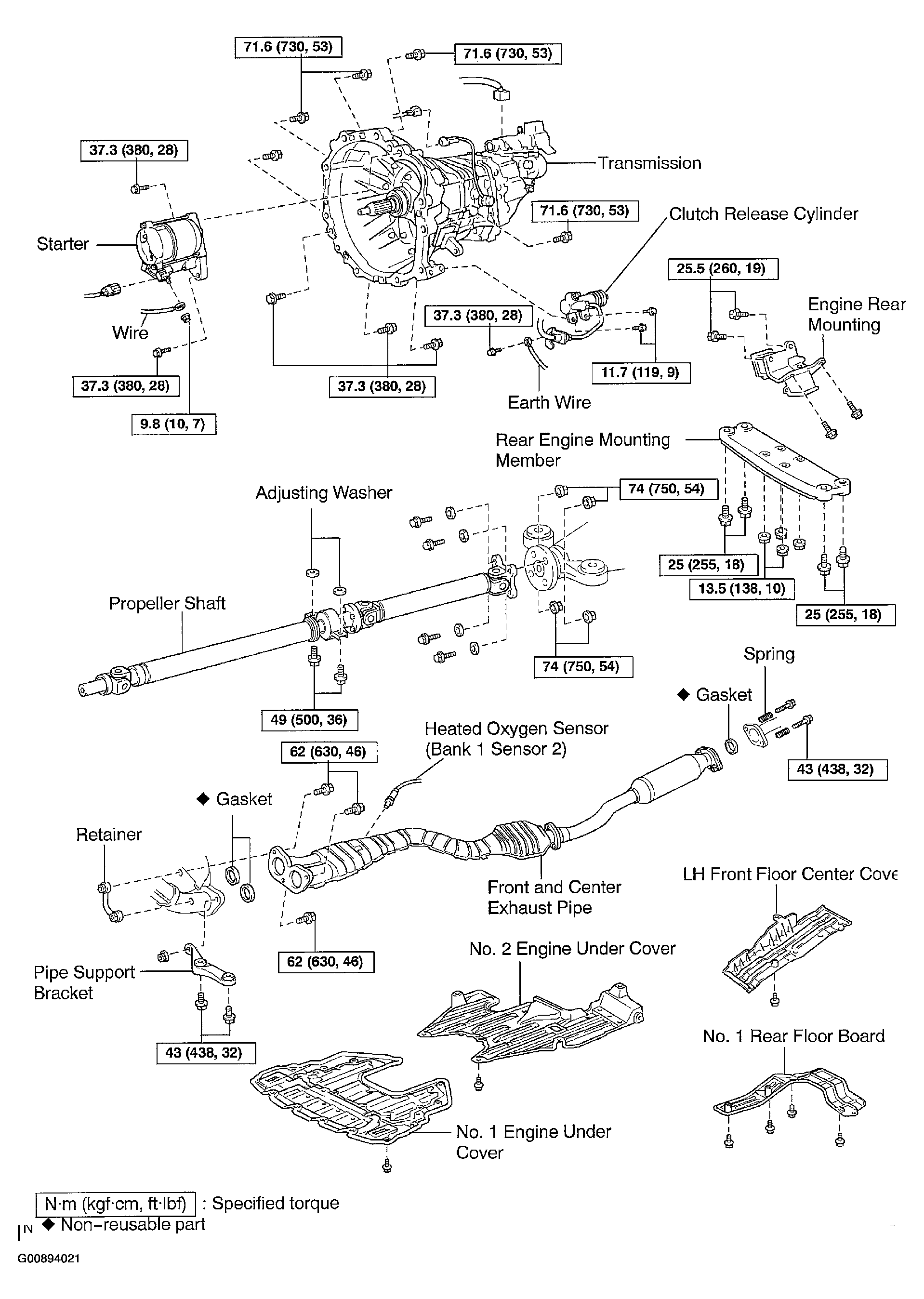

Fig 3: Identifying Manual Transmission Unit Components (3 Of 3)
G00894021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
