Manual Transmission Assembly: Components

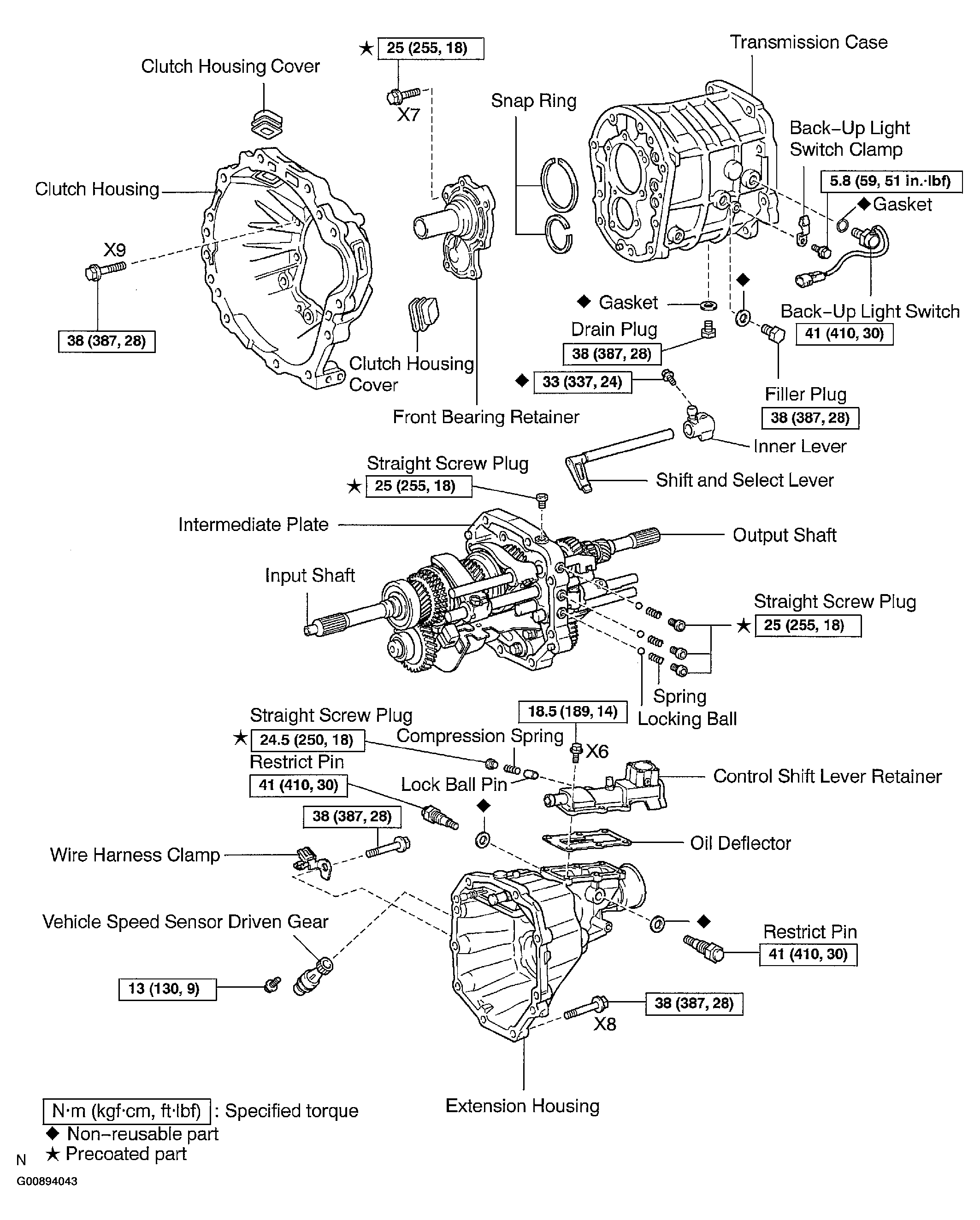

Fig 1: Identifying Manual Transmission Assembly Components (1 Of 2)
G00894043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

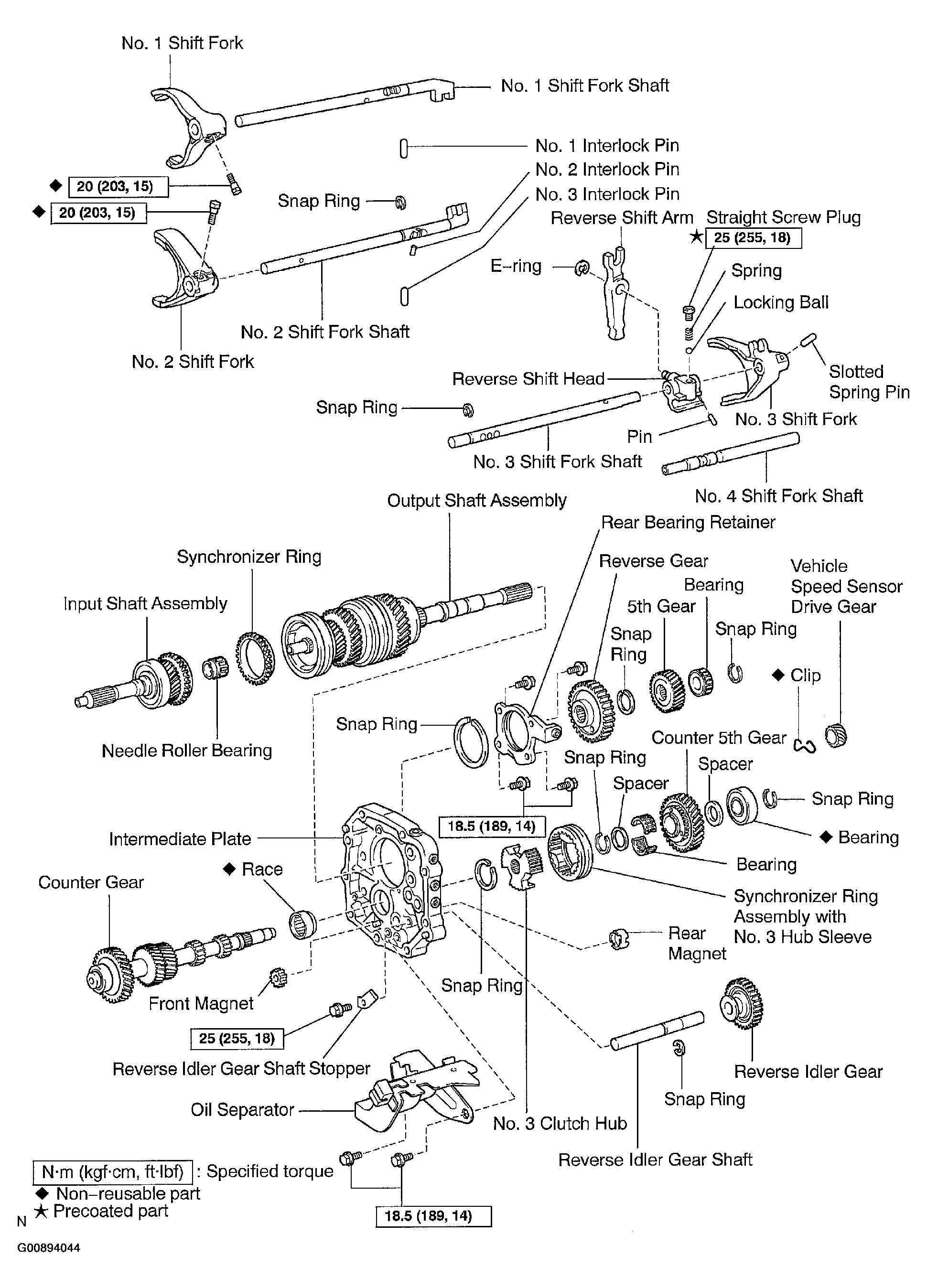

Fig 2: Identifying Manual Transmission Assembly Components (2 Of 2)
G00894044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
