Clutch Unit: Components

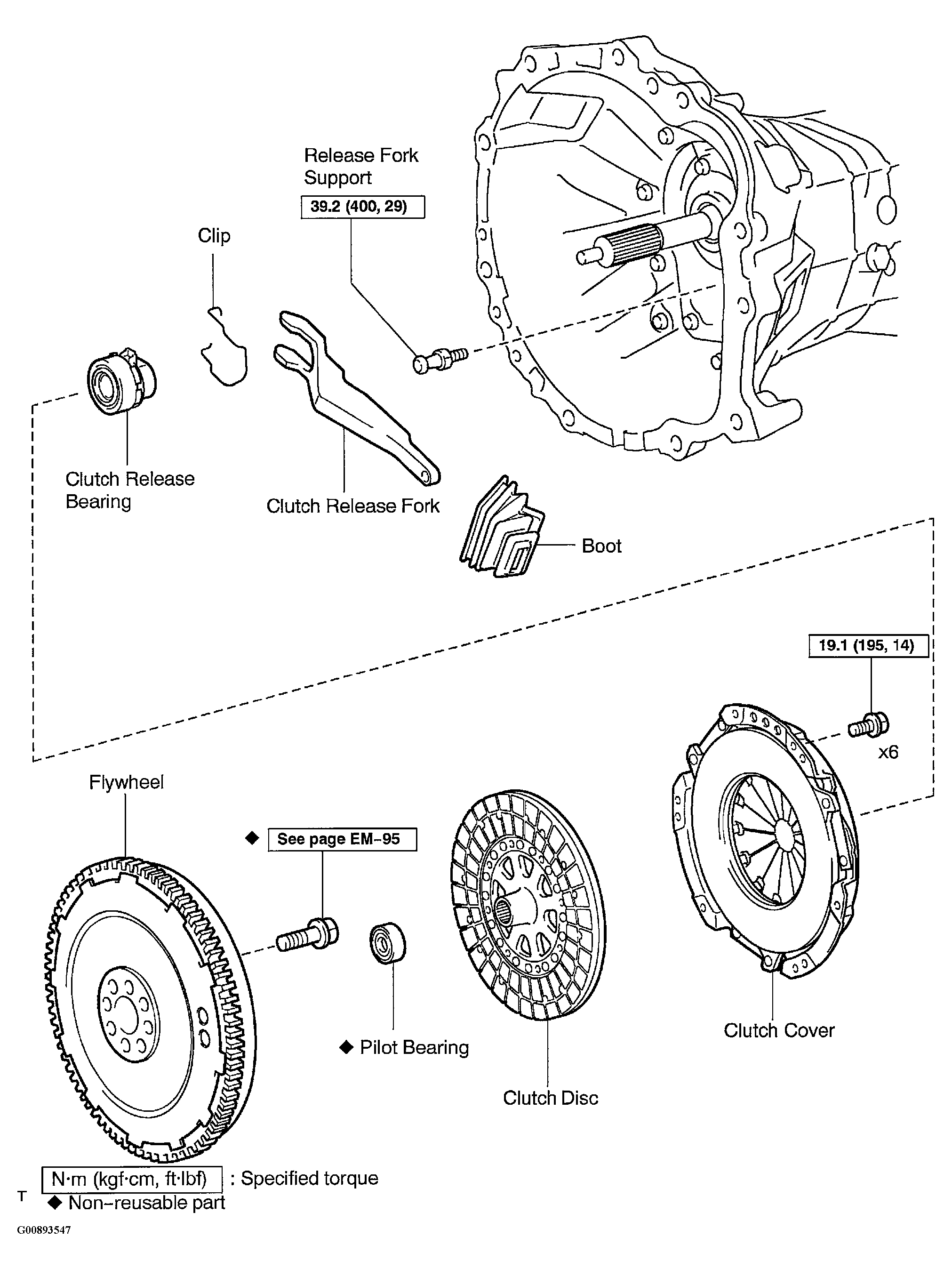

Fig 1: Identifying Clutch Unit Components

G00893547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
