Section 258 (Stop Lamp System): Location

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

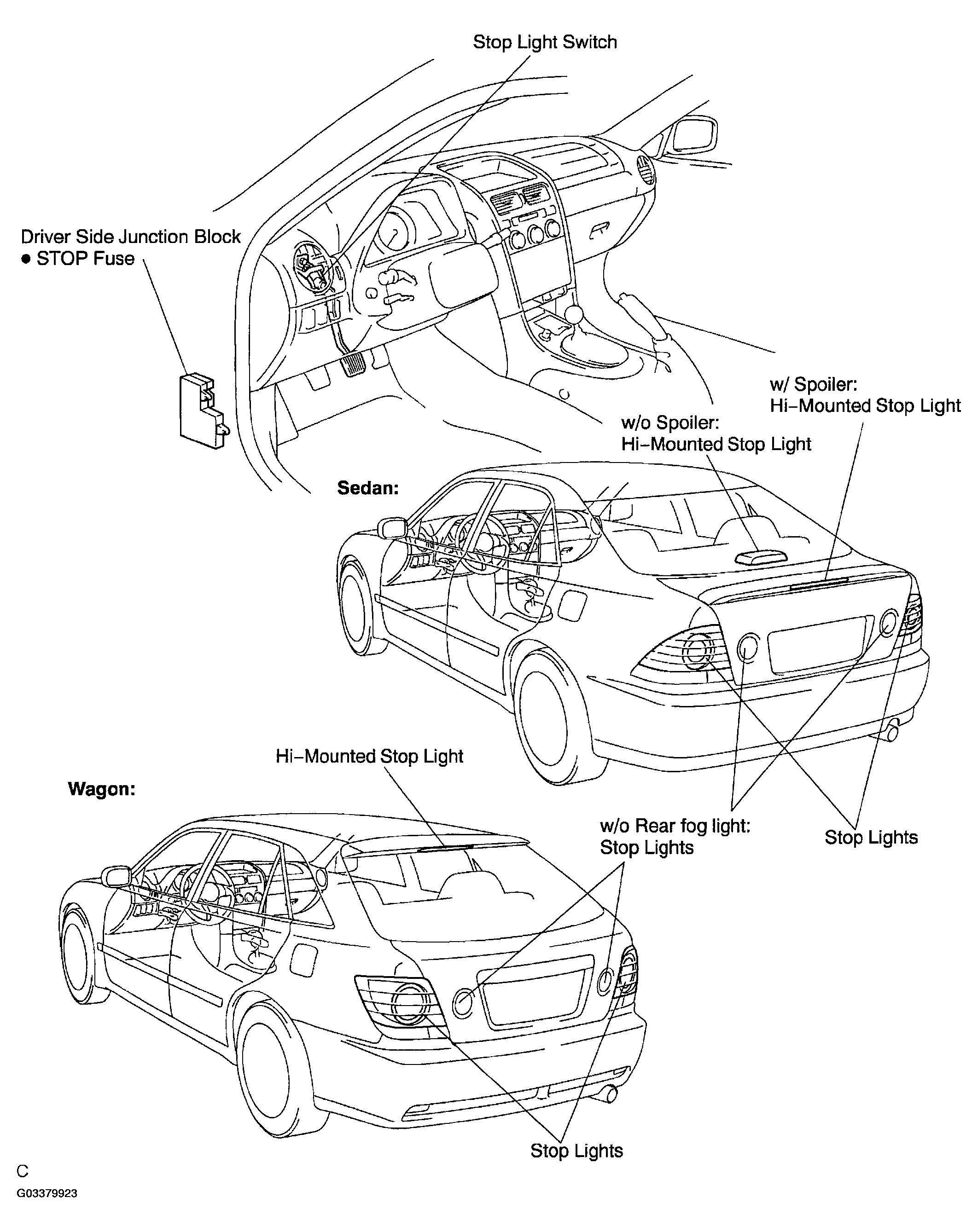

Fig 1: Identifying Stop Light System Components Location
G03379923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
