VSV For Pressure Switching Valve: Components

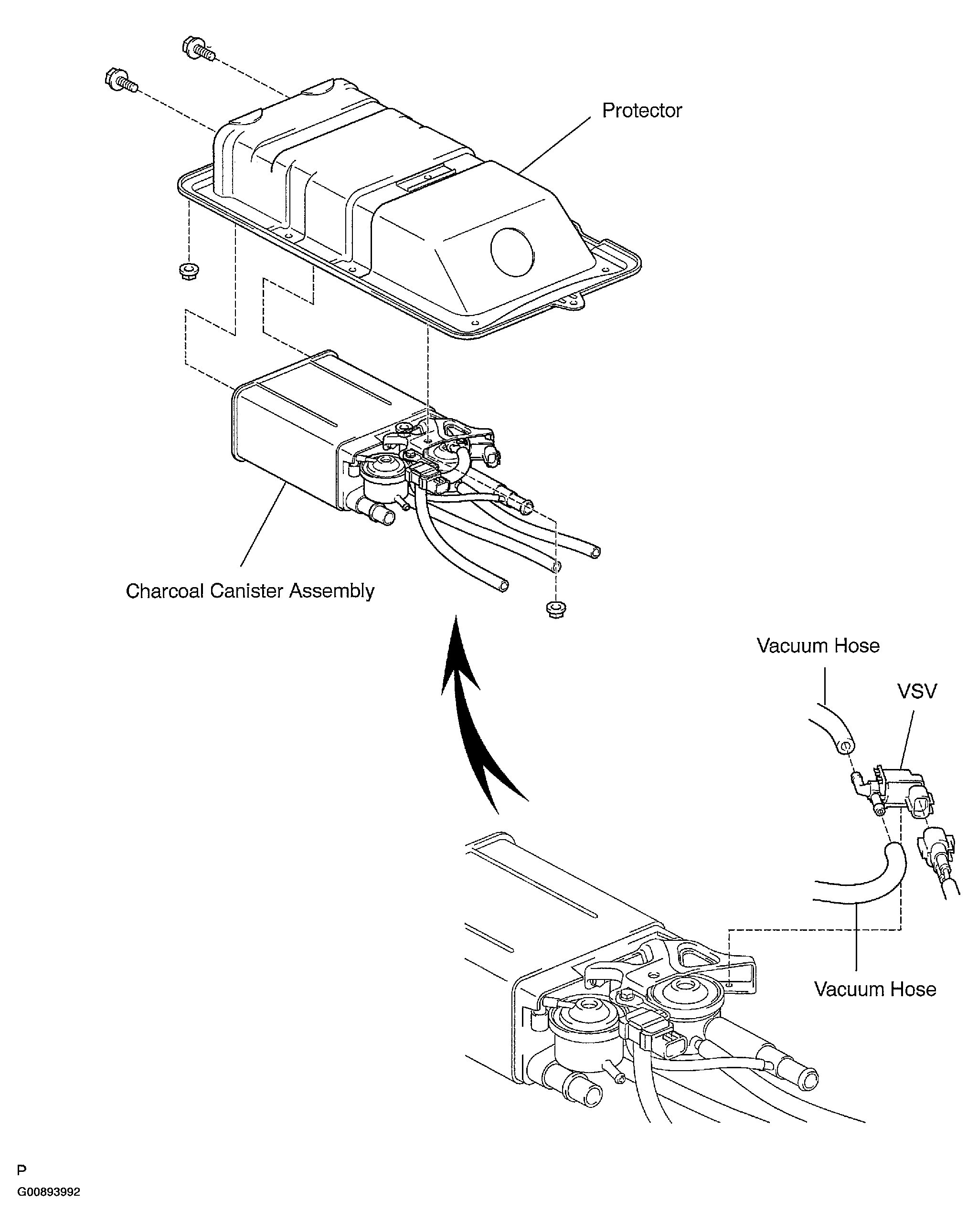

Fig 1: Identifying Components Of VSV For Pressure Switching Valve

G00893992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
