DTC P2121: Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance
>>
Typical Enabling Conditions
Typical Enabling Conditions

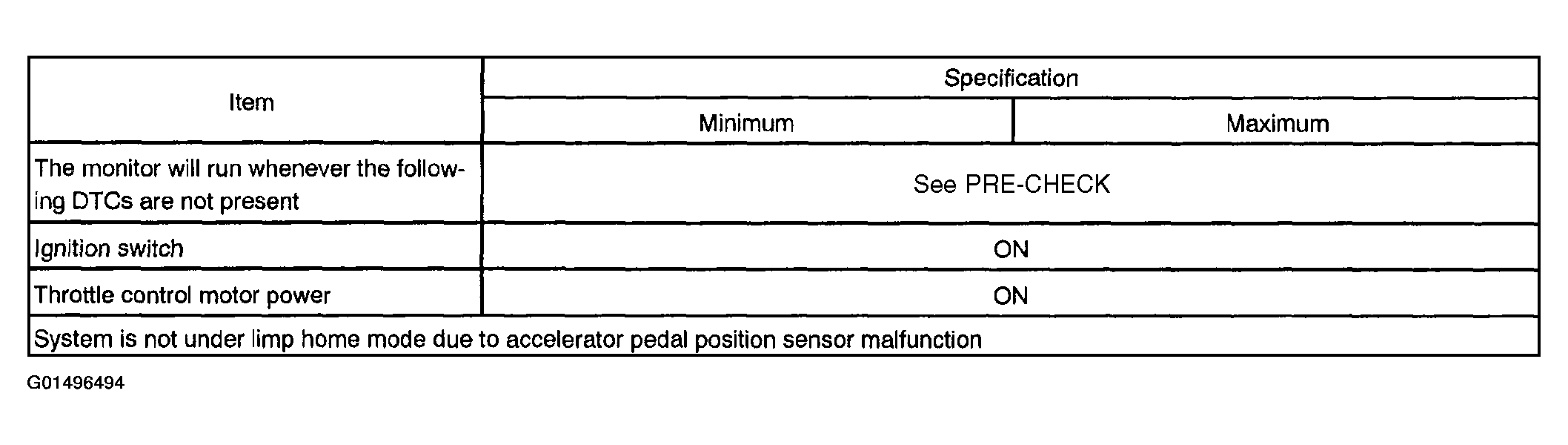

Fig 1: Typical Enabling Conditions Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
