Circuit Description

ECM controls idle speed most appropriately according to a signal from the power steering pressure sensor.

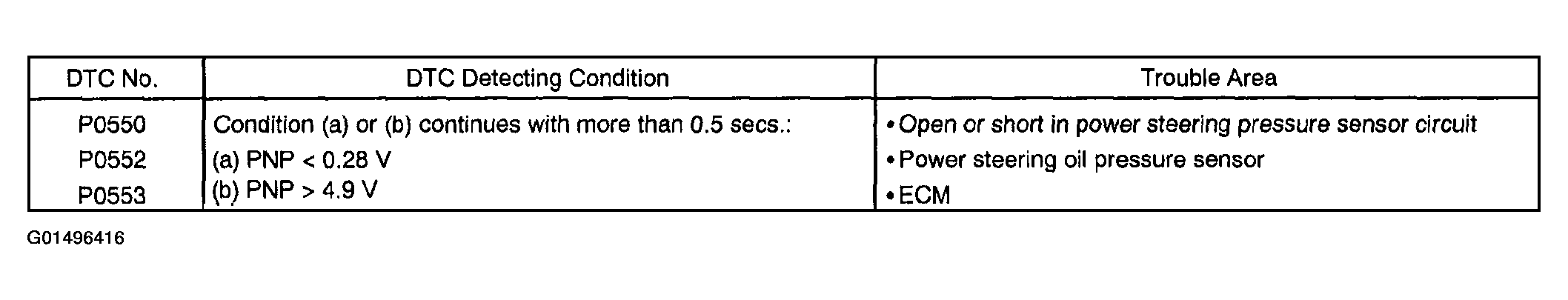

Fig 1: DTC P0550, P0552 & P0553 Chart
G01496416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
