Monitor Description

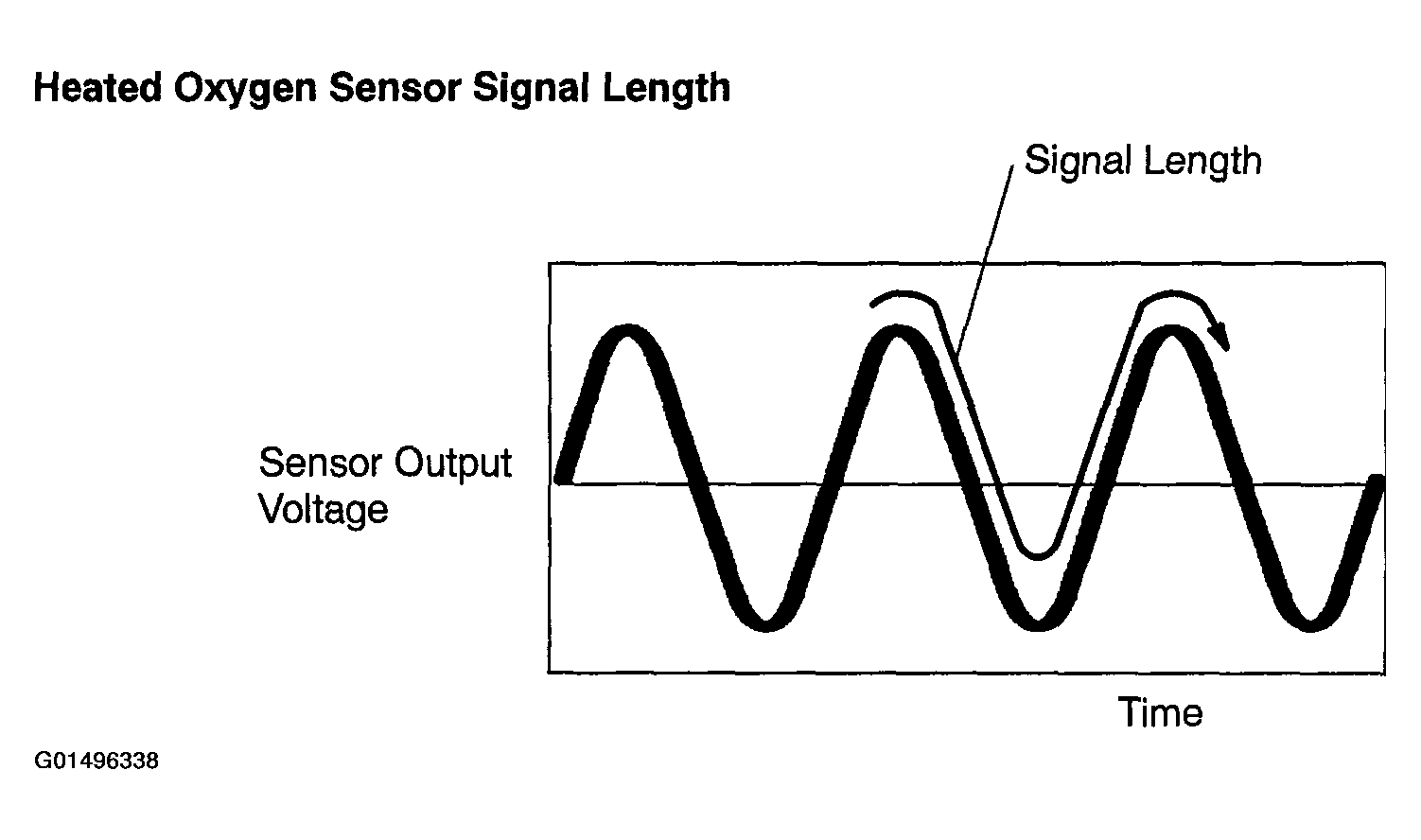

The vehicle is equipped with two heated oxygen sensors. One is mounted upstream from the TWC (Three-Way Catalytic) converter (Front Oxygen Sensor, "Sensor" sensor 2"). The catalyst efficiency monitor compares the sensor 1 and sensor 2 signals in order to calculate TWC ability to store the oxygen.

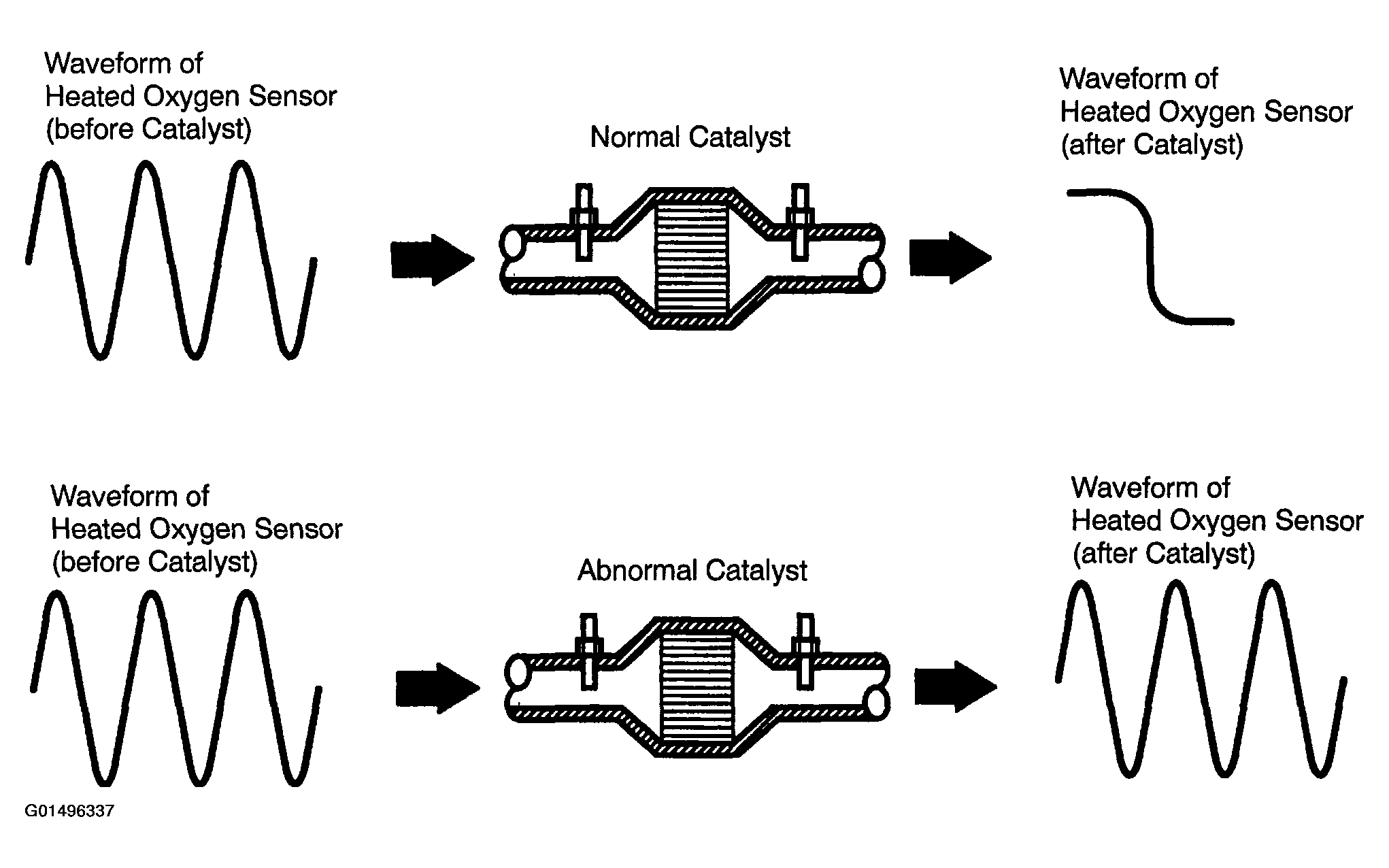

During normal operation, the TWC store the oxygen as needed. This results in low oxygen variations in the post TWC exhaust stream as shown below.
