O2S Test Result

Refer to PRE-CHECK for detailed information.

Rear HO2S voltage monitor

If the HO2S sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

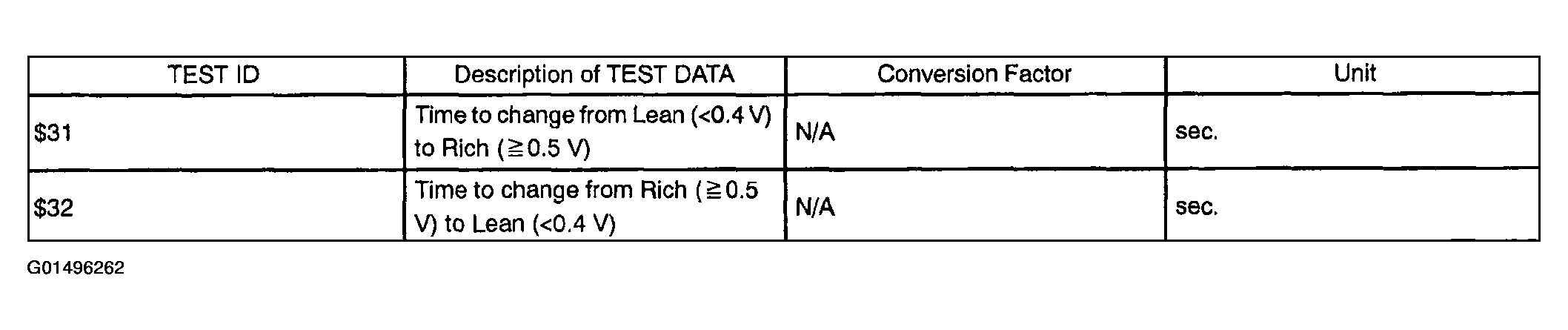

Fig 1: Rear HO2S Voltage Monitor Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

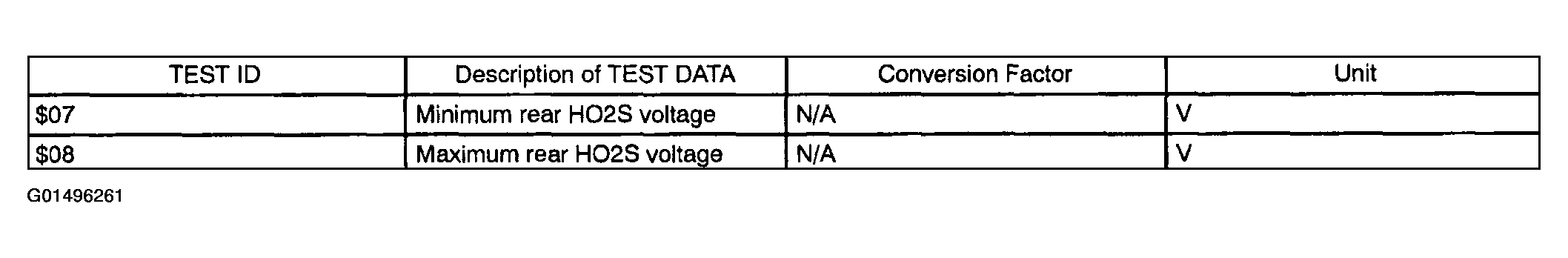

Fig 2: Rear HO2S Voltage Monitor Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear HO2S slow response monitor

If the elapsed time is out of the standard value, the ECM interprets this as a malfunction.

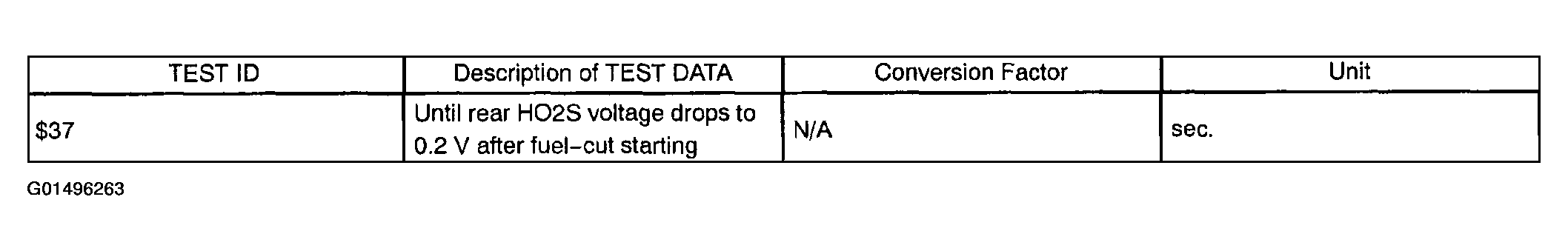

Fig 3: Rear HO2S Slow Response Monitor Chart

Rear HO2S element monitor

If all the values ($81, $84, $85 and &87) are out of the standard values, the ECM interprets this as a malfunction.

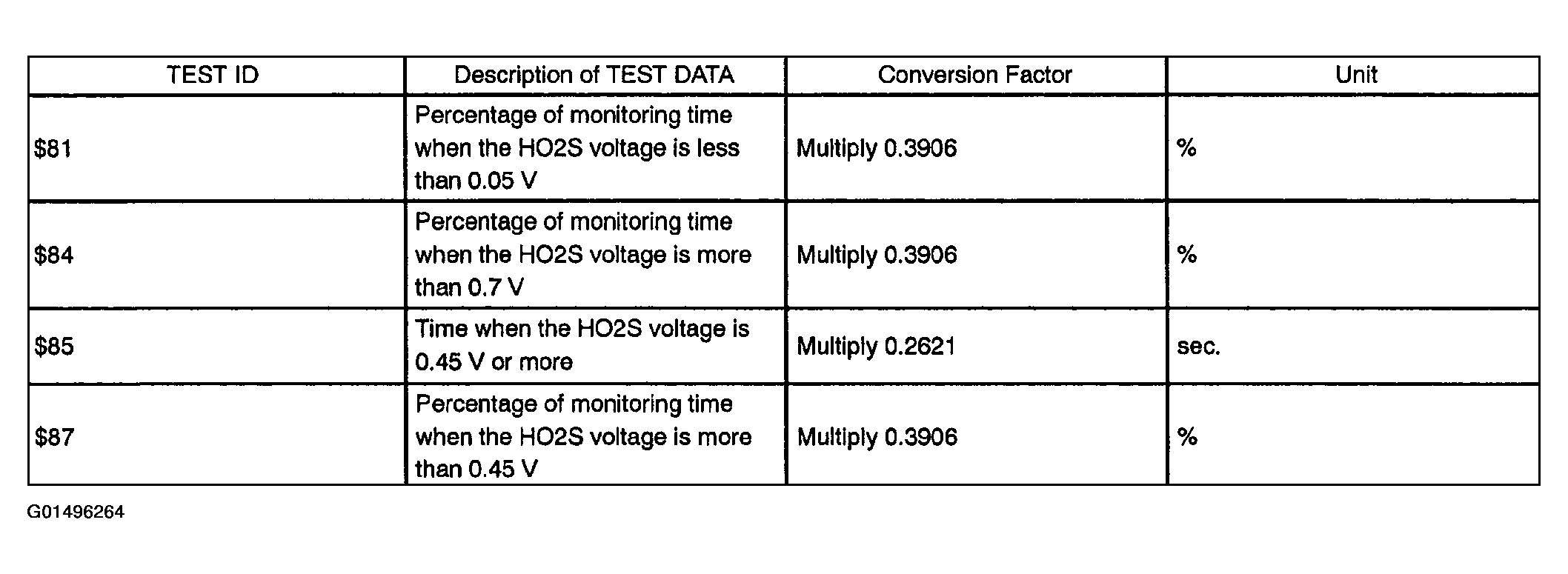

Fig 4: Rear HO2S Element Monitor Chart
