DTC P0121: Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance problem
>>
Typical Malfunction Thresholds
Typical Malfunction Thresholds

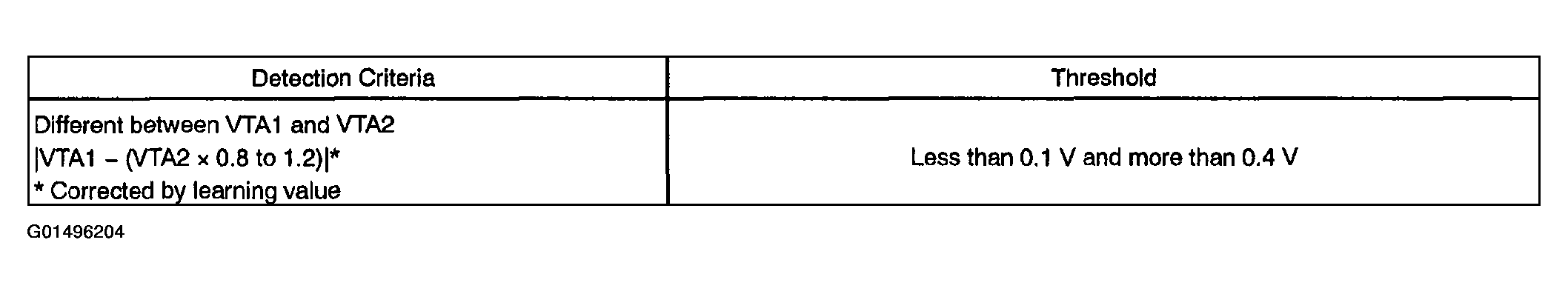

Fig 1: Typical Malfunction Thresholds Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
