DTC P0110: Intake Air Temperature Circuit, DTC P0112: Intake Air Temperature Circuit Low Input, DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

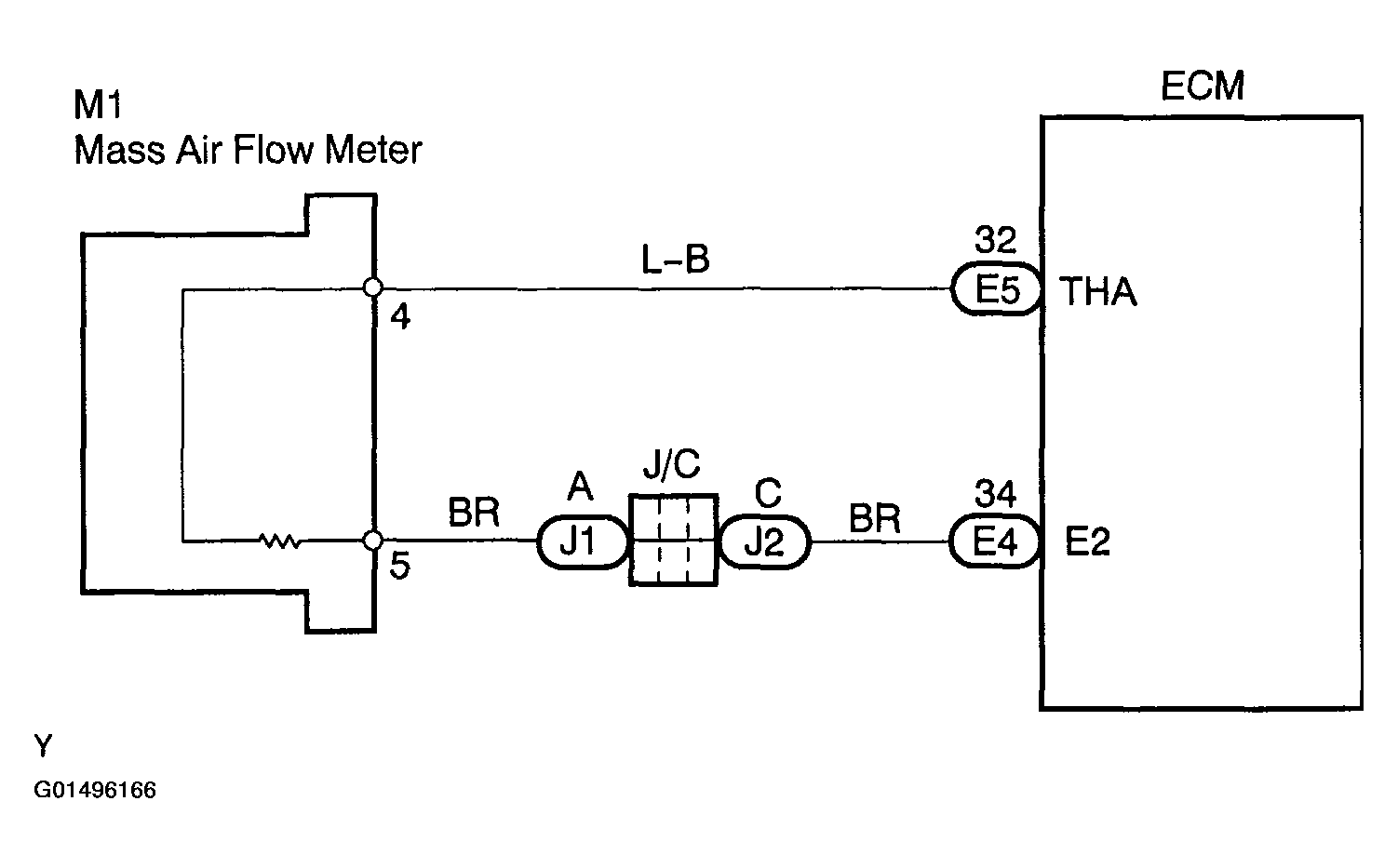

Fig 1: Mass Air Flow Meter Wiring Diagram
G01496166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
