Three-Way Catalytic Converter (TWC) System: Components

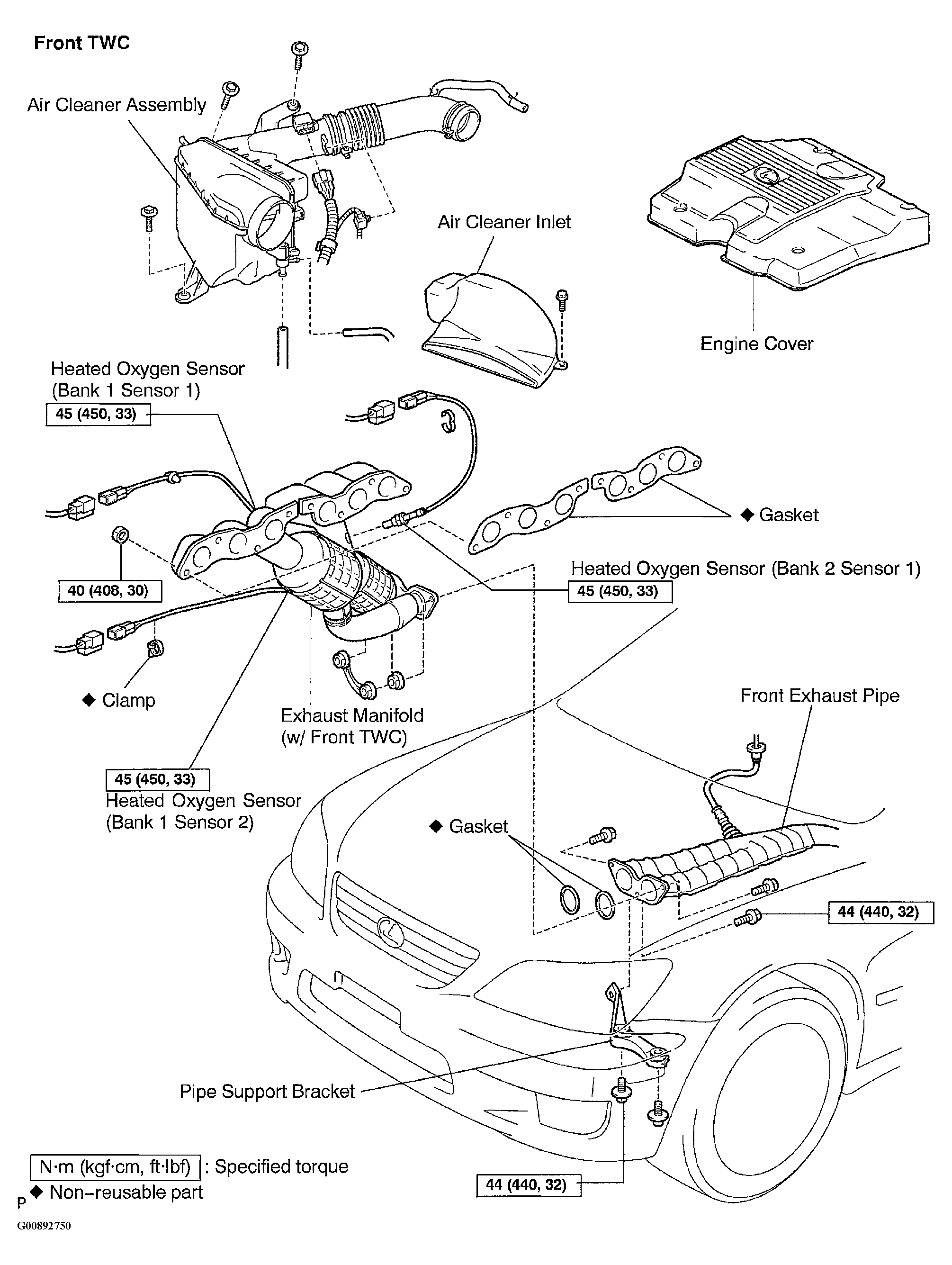

Fig 1: Identifying Components Of Three-Way Catalytic Converter (TWC) System Front TWC
G00892750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

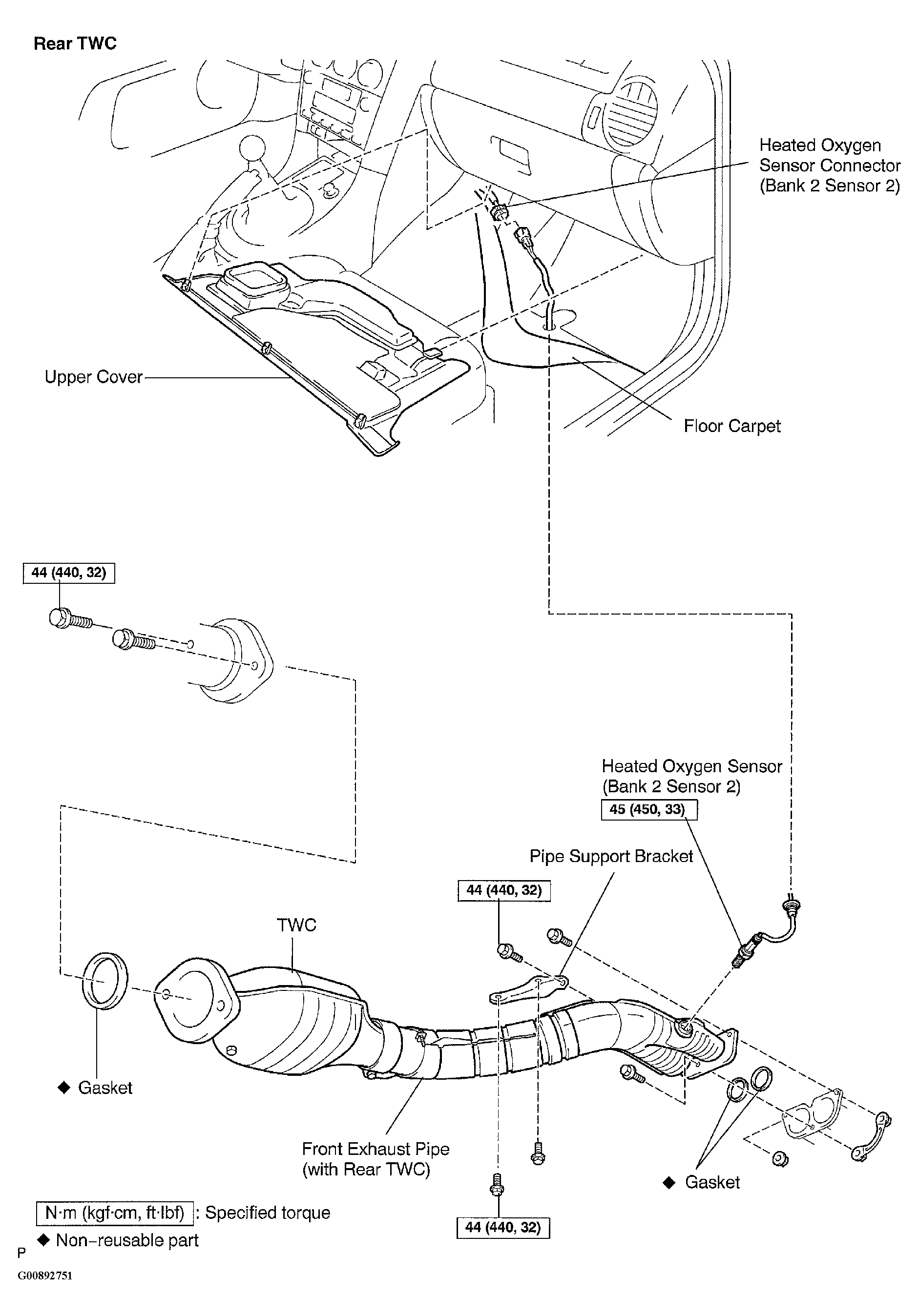

Fig 2: Identifying Components Of Three-Way Catalytic Converter (TWC) System Rear TWC
G00892751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
