Parts Layout And Schematic Drawing: Location

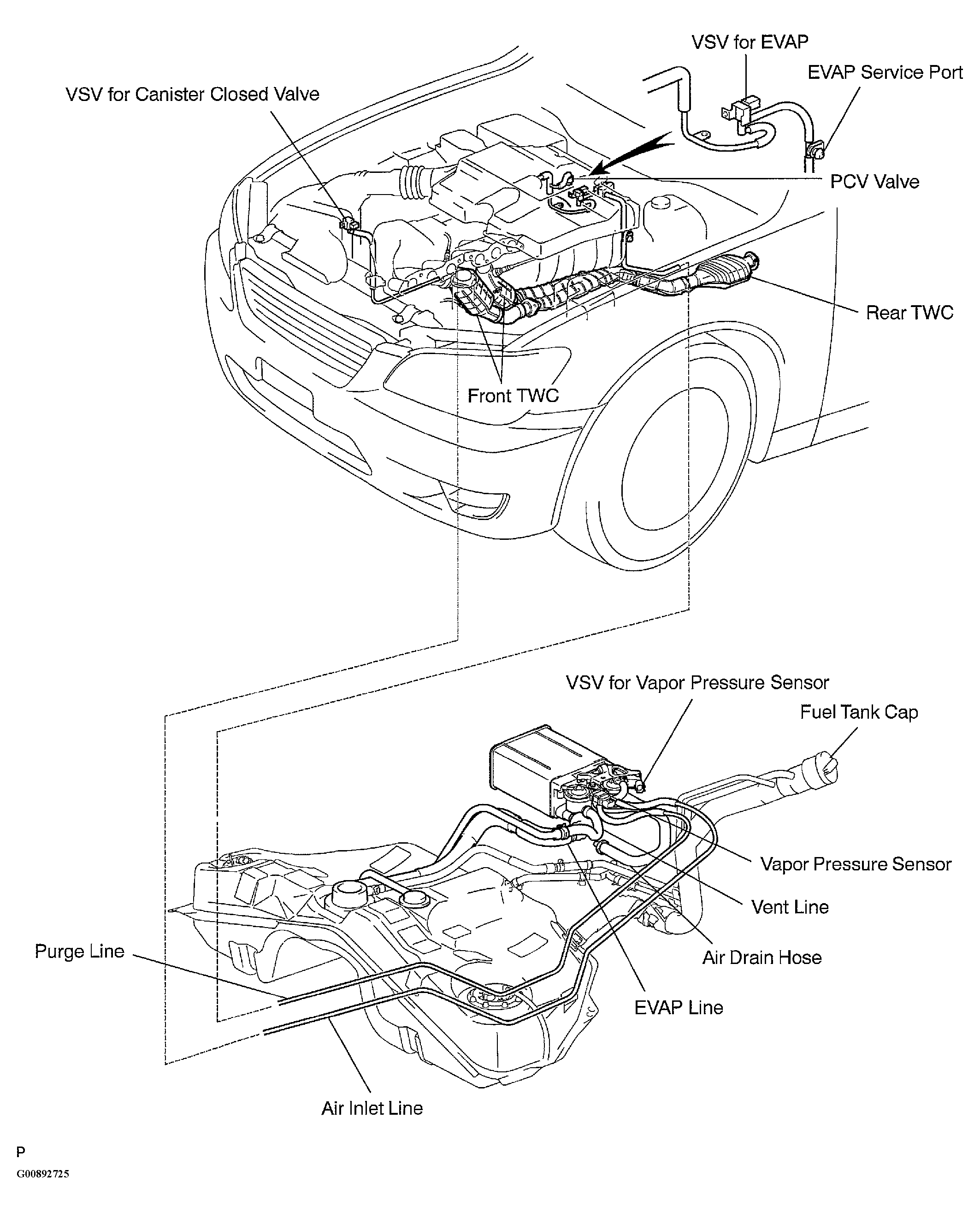

Fig 1: Identifying Location Of Emission Control System Parts

G00892725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
