Home >> Lexus >> 2004 >> IS 300 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Roof Headlining >> Sedan >> Components

Roof Headlining: Sedan: Components

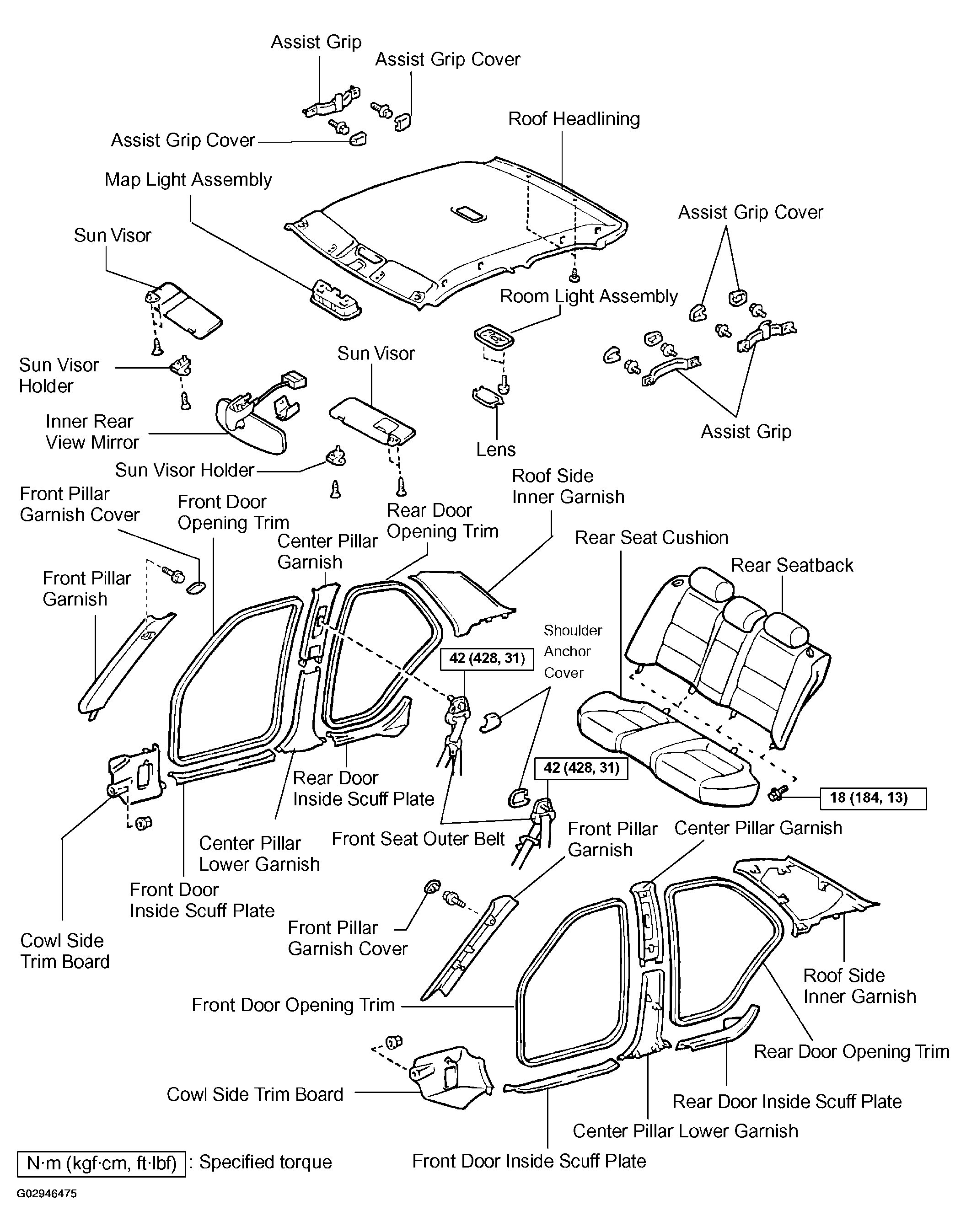

Fig 1: Identifying Roof Headlining Components

G02946475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
