Theft Deterrent System: Location

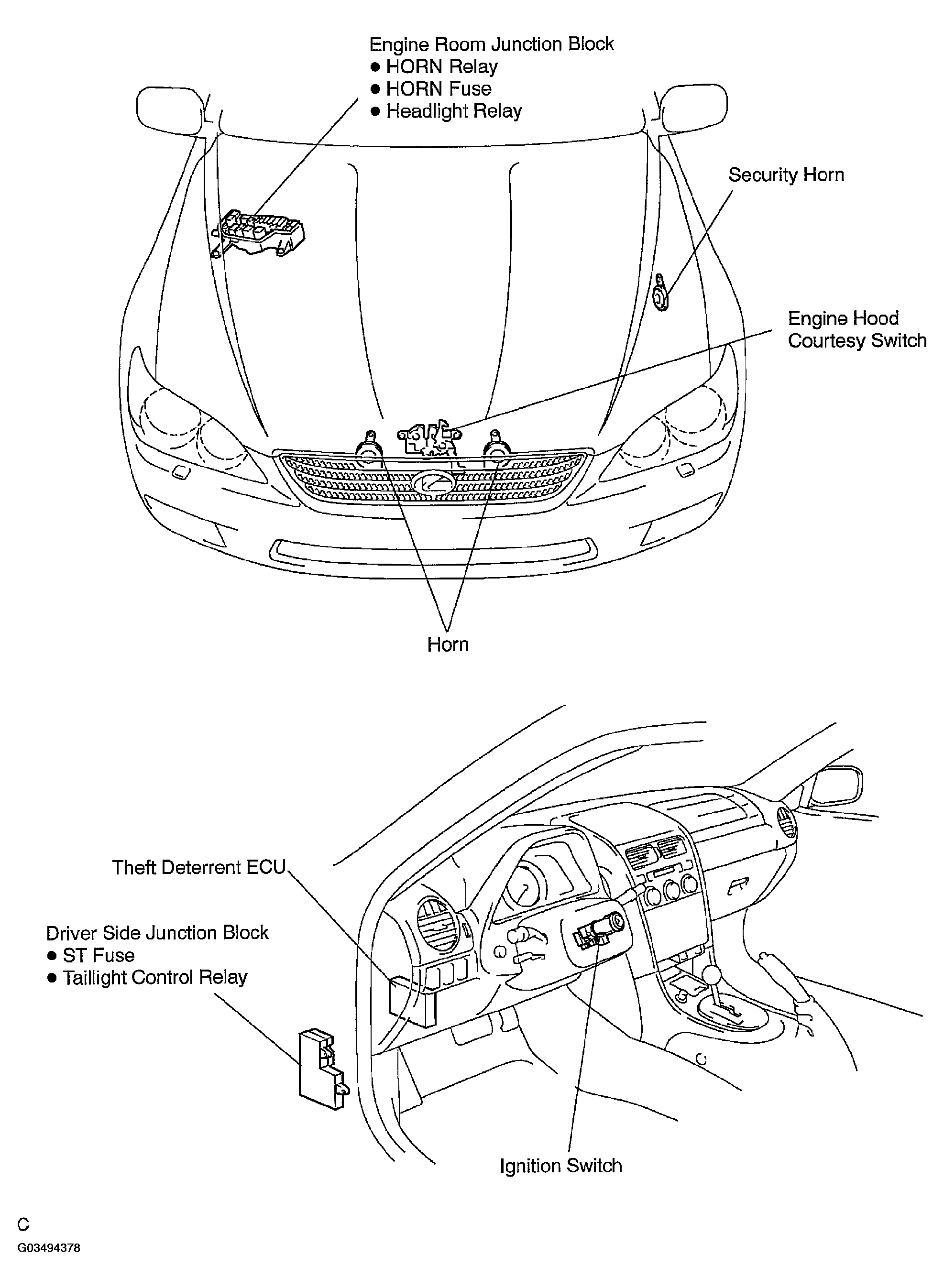

Fig 1: Locating Theft Deterrent System Components (1 Of 2)
G03494378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

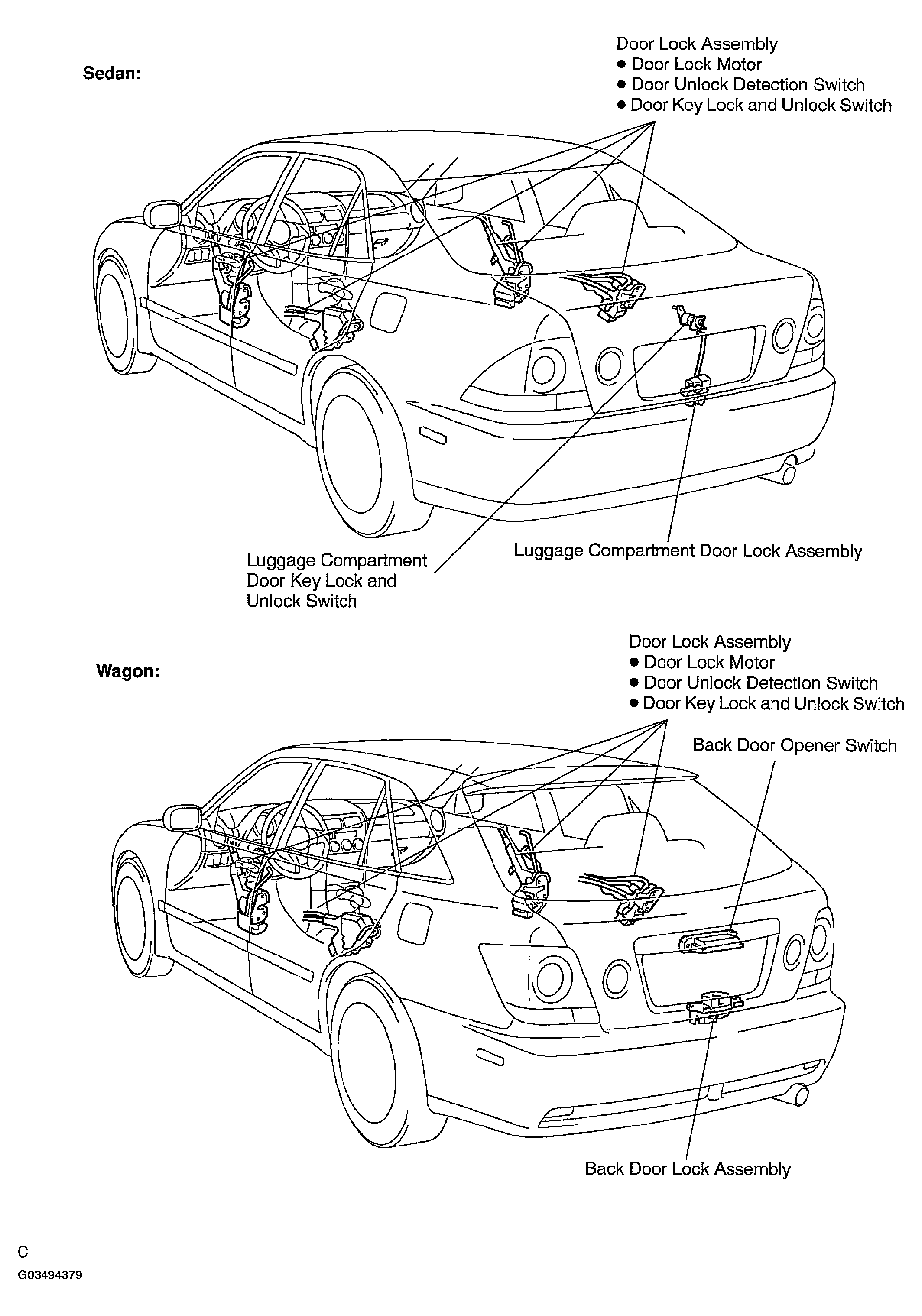

Fig 2: Locating Theft Deterrent System Components (2 Of 2)
G03494379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
