Air Conditioning Control Assembly: Components

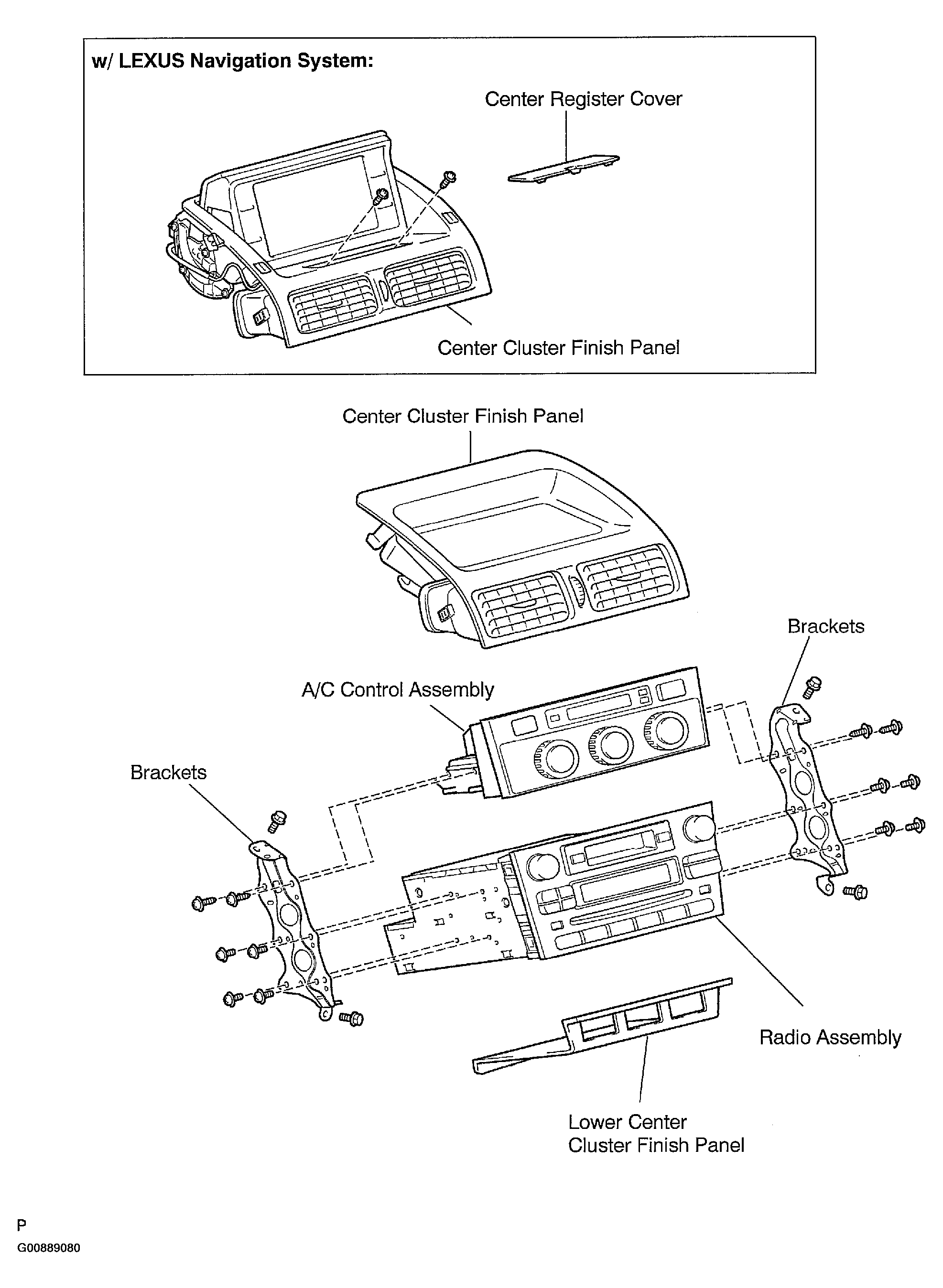

Fig 1: Identifying A/C Control Assembly Components (1 Of 2)
G00889080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

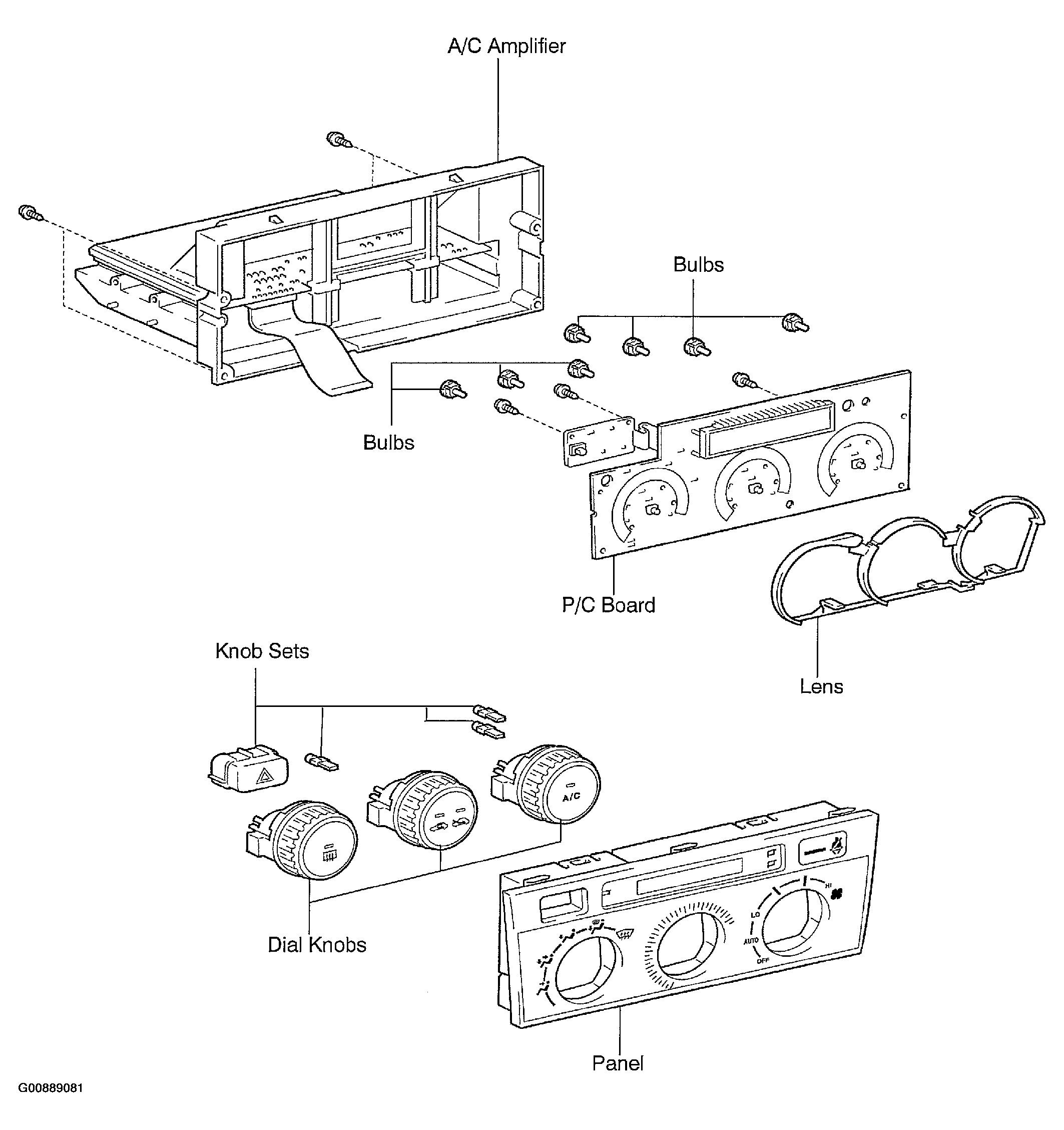

Fig 2: Identifying A/C Control Assembly Components (2 Of 2)
G00889081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
