Parts Layout And Schematic Drawing: Drawing

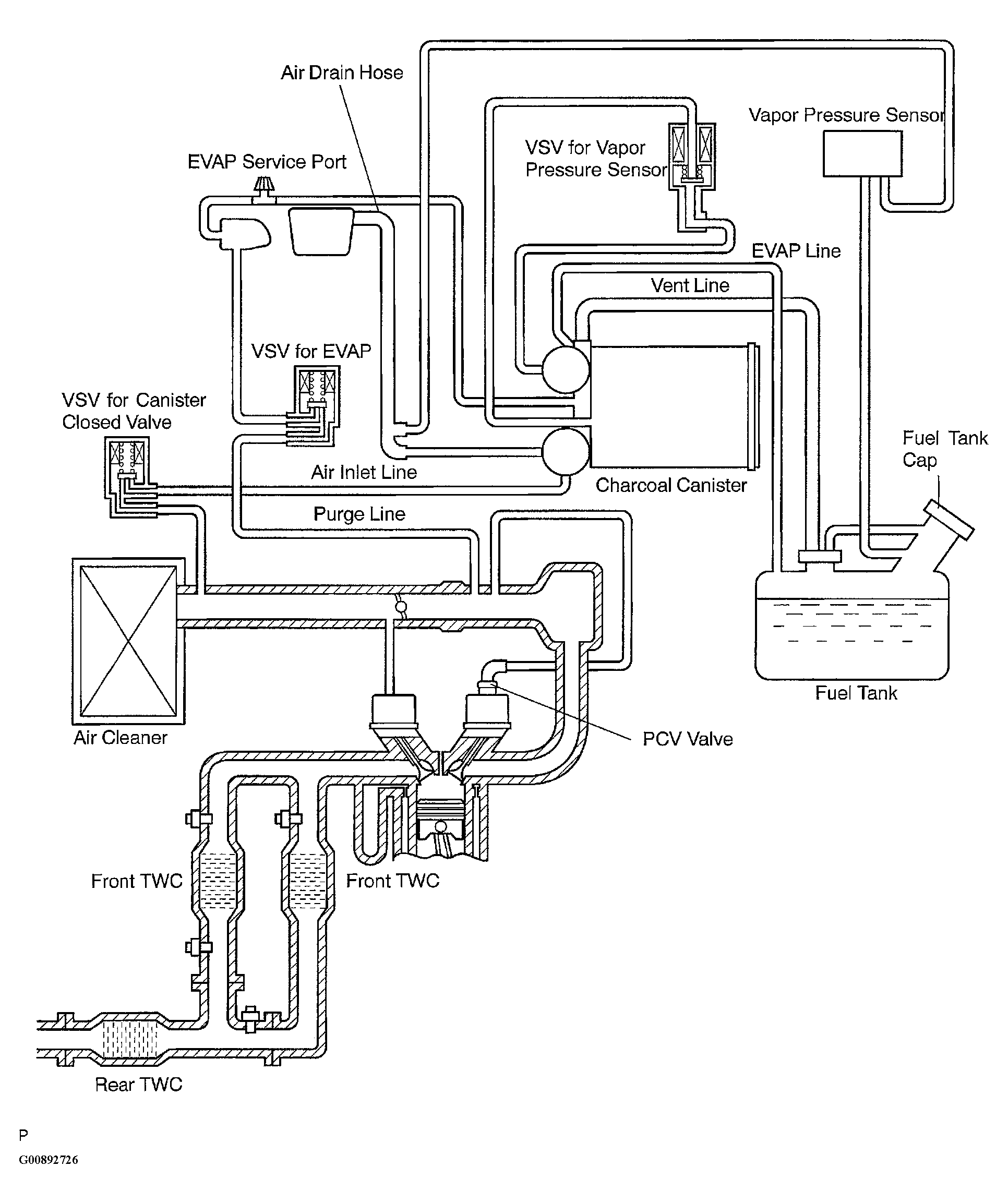

Fig 1: Schematic Drawing Of Emission Control System

G00892726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
