Automatic Transmission Unit: Components

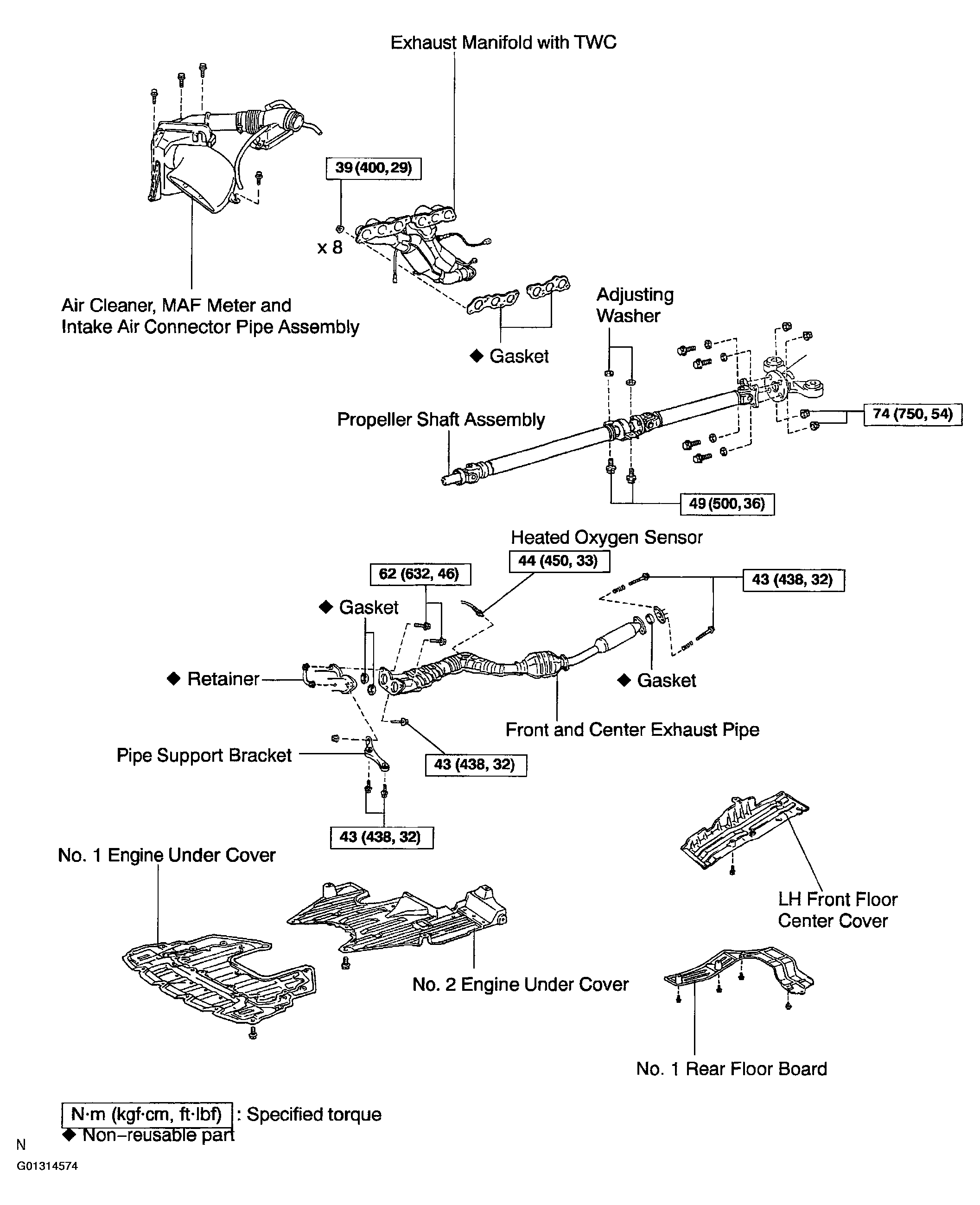

Fig 1: Exploded View Of Automatic Transmission Unit (1 Of 2)
G01314574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

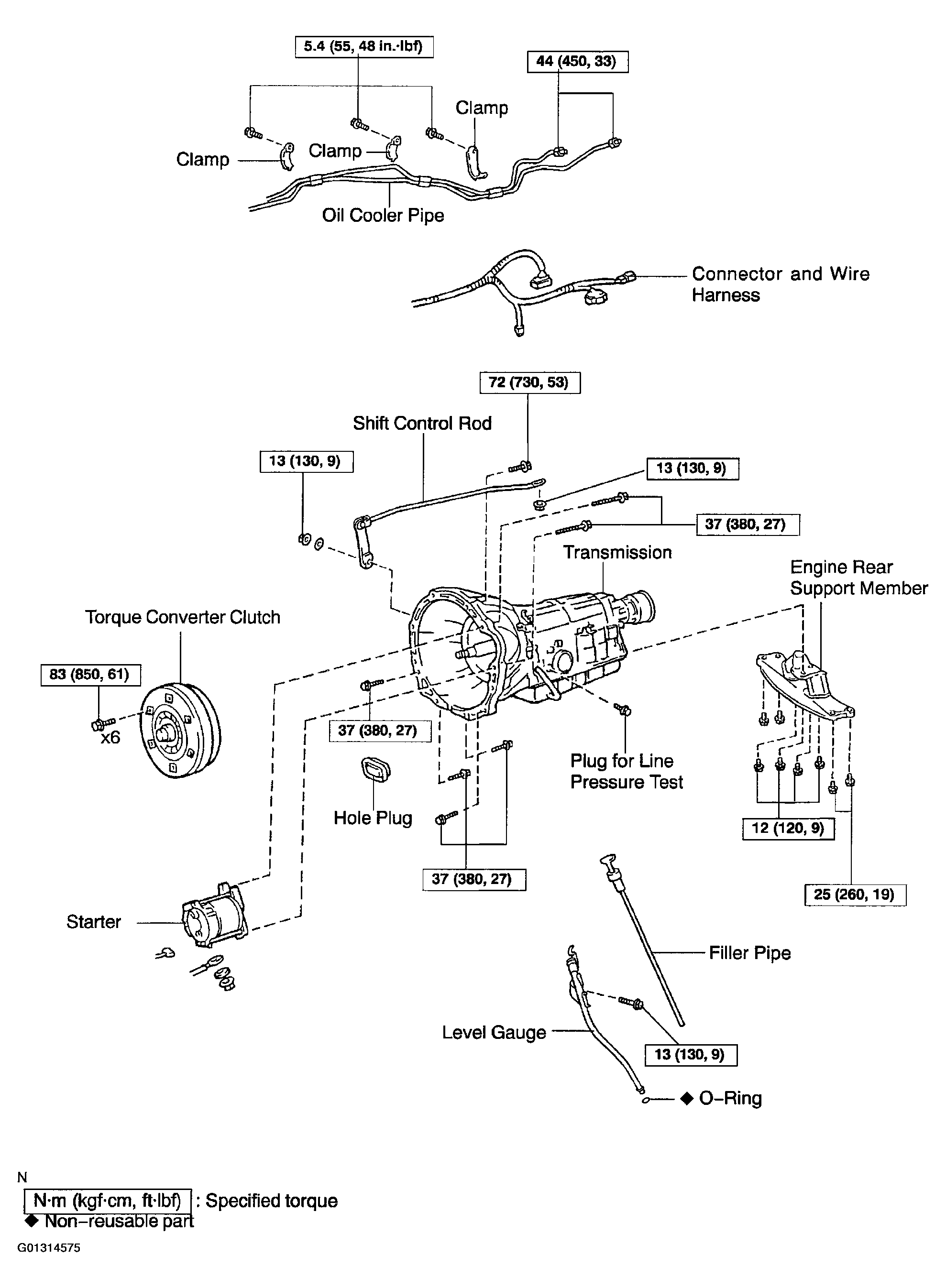

Fig 2: Exploded View Of Automatic Transmission Unit (2 Of 2)
G01314575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
