On-Vehicle Repair

  1. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
  2. REMOVE LH FRONT FLOOR CENTER COVER
  3. REMOVE NO. 1 REAR FLOOR BOARD
  4. REMOVE VALVE BODY (See  VALVE BODY ASSEMBLY  )
  5. REMOVE PARKING LOCK PAWL BRACKET

    Remove the 3 bolts and parking lock pawl bracket.

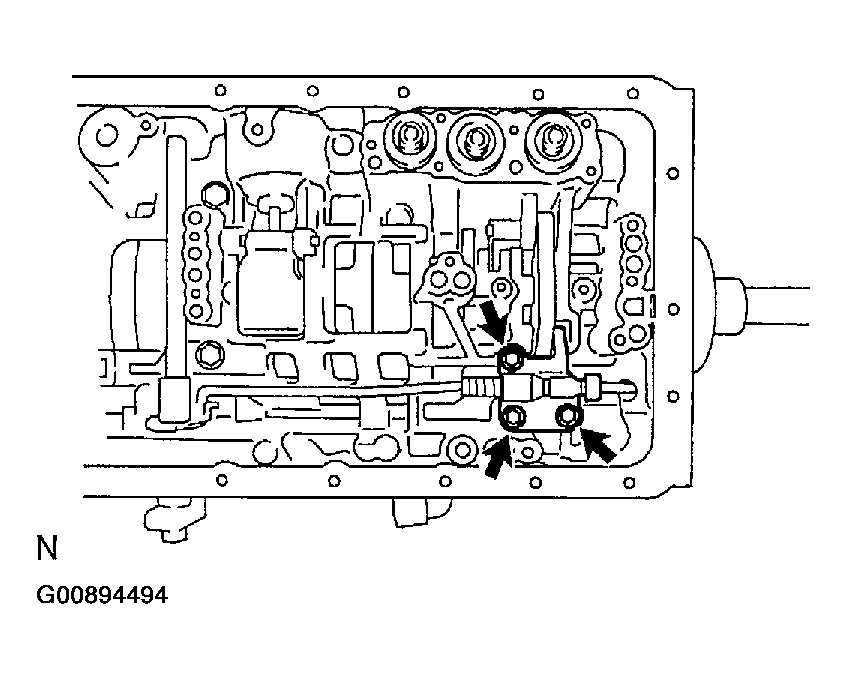

    Fig 1: Removing Parking Lock Pawl Bracket
    G00894494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SPRING FROM PARKING LOCK PAWL SHAFT

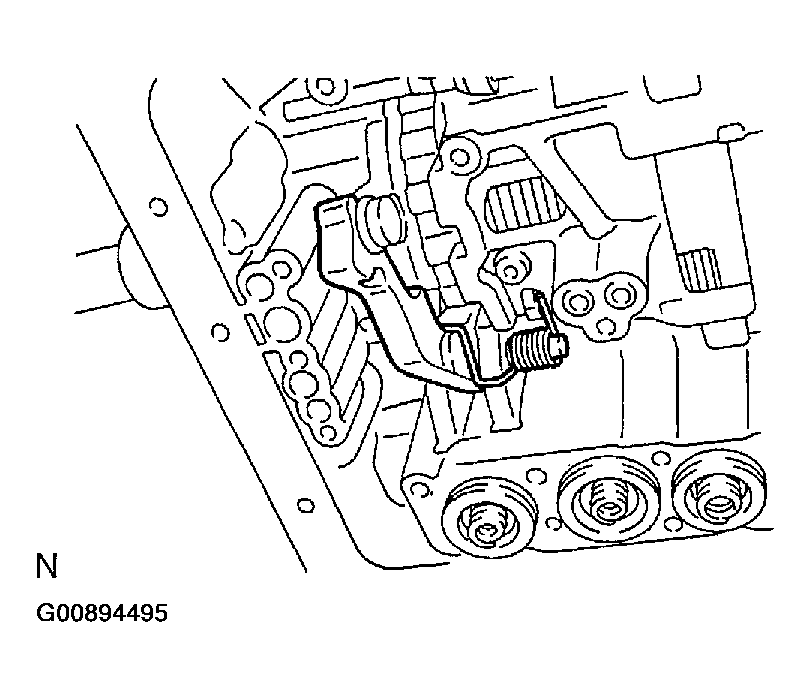

    7. Fig 2: Removing Spring From Parking Lock Pawl Shaft
    G00894495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE PARKING LOCK PAWL SHAFT AND PARKING LOCK PAWL
  8. INSTALL PARKING LOCK PAWL AND PARKING LOCK PAWL SHAFT
  9. INSTALL SPIRING TO PARKING LOCK PAWL SHAFT
  10. INSTALL PARKING LOCK PAWL BRACKET

    Install the parking lock pawl bracket with the 3 bolts.

    1. Torque: 7.4 N.m (75 kgf.cm, 65 in.lbf)

    HINT:

    • Push the lock rod fully forward.
    • Check that the parking lock pawl operates smoothly.
  11. INSTALL VALVE BODY (See  VALVE BODY ASSEMBLY  )
  12. INSTALL NO. 1 REAR FLOOR BOARD
  13. INSTALL LH FRONT FLOOR CENTER COVER
  14. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
