Chapter 1: Electronic Circuit Matrix Chart

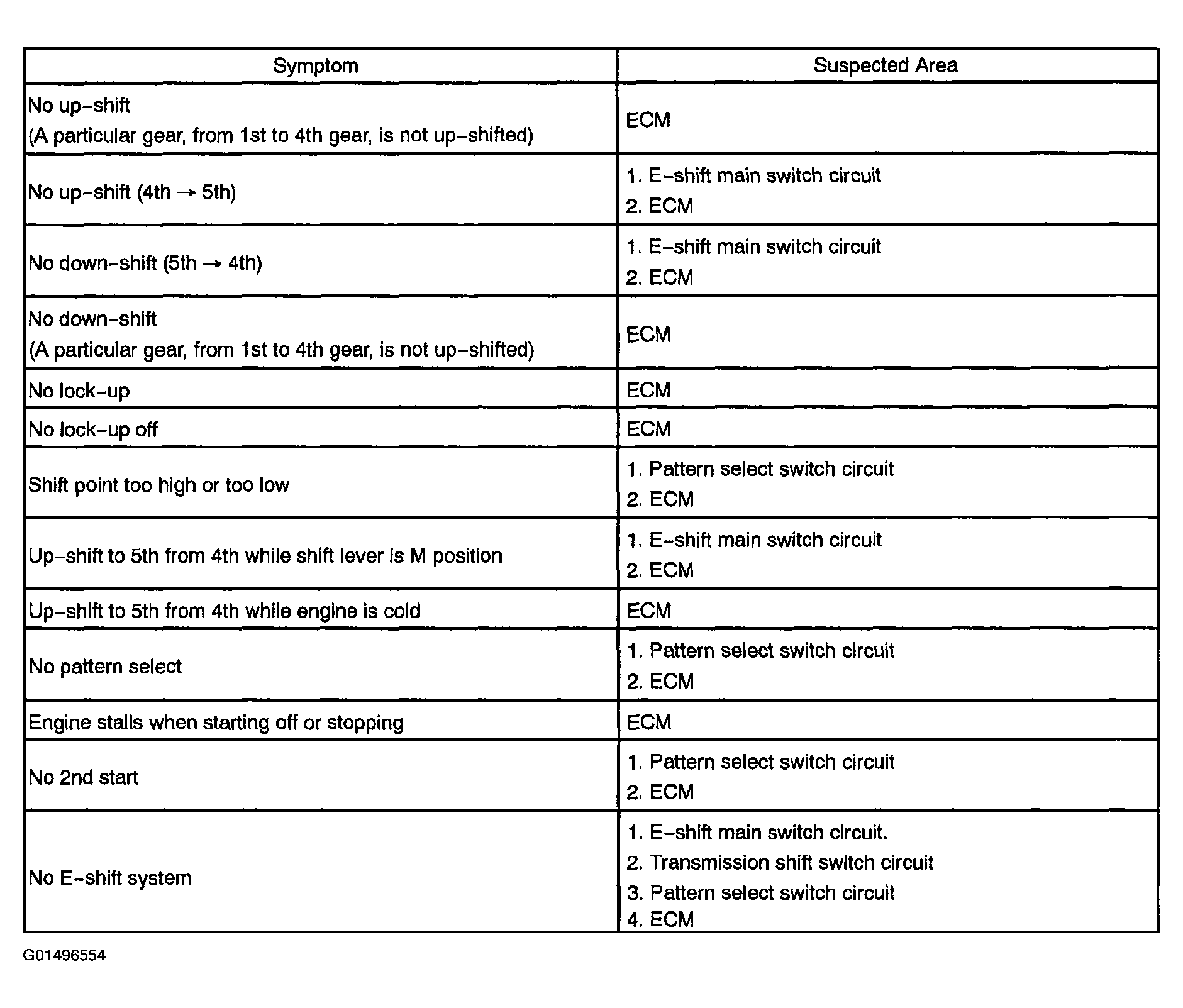

Fig 1: Chapter 1: Electronic Circuit Matrix Chart

G01496554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
