Pattern Select Switch Circuit: Wiring Diagram

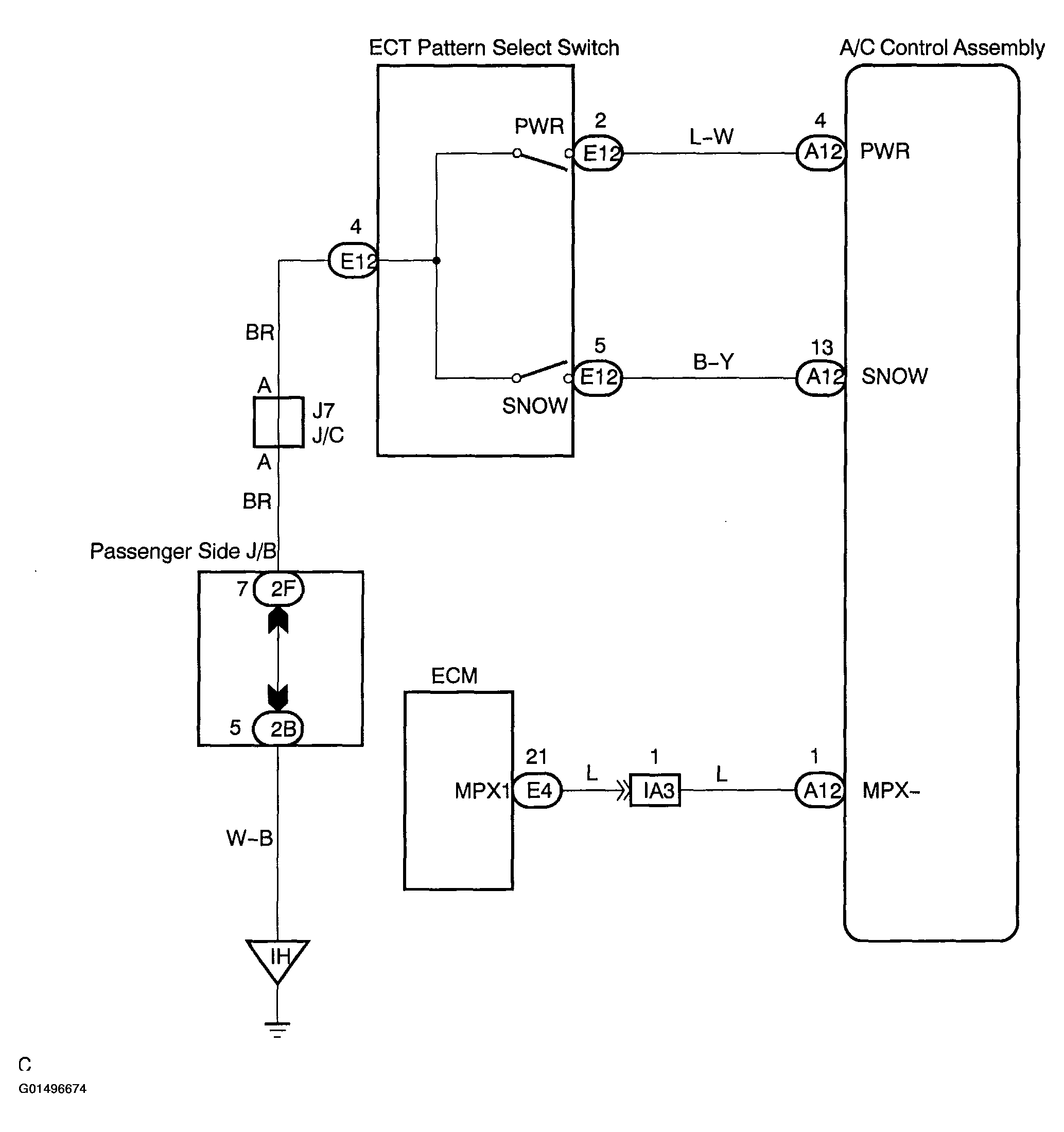

Fig 1: Pattern Select Switch Circuit Wiring Diagram

G01496674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
