A650E Transmission Solenoid Identification (TC004-05)
Publication date: 2005-08-04Reference number: TC004-05
A650E TRANSMISSION SOLENOID IDENTIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TC004-05, Date of Issue:
August 4, 2005
| LEXUS: | Applicable GS 300, GS 400, GS 430, IS 300, LS 400, LS 430, SC 400, & SC 430 |
| GROUP: | TRANSMISSION & CLUTCH |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
This service bulletin provides information on the proper identification of the 7 solenoids used in the A650E transmission.
Applicable Vehicles
- 1998 -- 2005 model year GS 300 vehicles.
- 1998 -- 2000 model year GS 400 vehicles.
- 2001 -- 2005 model year GS 430 vehicles.
- 2001 -- 2005 model year IS 300 vehicles.
- 1998 -- 2000 model year LS 400 vehicles.
- 2001 -- 2003 model year LS 430 vehicles.
- 1998 -- 2000 model year SC 400 vehicles.
- 2002 -- 2005 model year SC 430 vehicles.

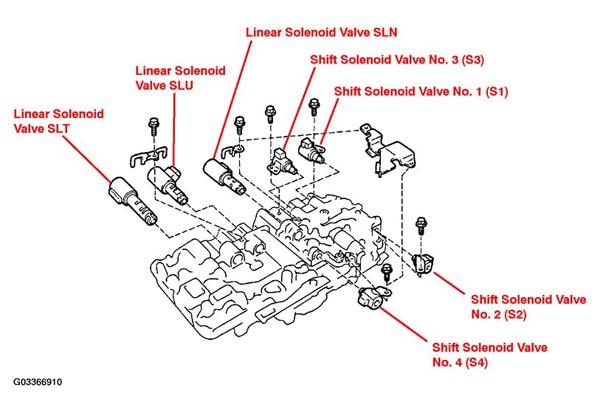

Transmission Solenoid Identification
Warranty Information
WARRANTY INFORMATION DESCRIPTION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Parts Information
Provided below is a chart listing the repair manual name of each solenoid used in the A650E transmission as well as the part name description provided in the electronic parts catalog.
PARTS INFORMATION DESCRIPTION
| REPAIR MANUAL SOLENOID NAME | PART CATALOG DESCRIPTION |
|---|---|
| S1 | Solenoid Assembly, Automatic Transmission 3--Way No. 1 |
| S2 | Solenoid Assembly, Transmission No. 3 (No. 1) |
| S3 | Solenoid Assembly, Automatic Transmission 3--Way No. 2 |
| S4 | Solenoid Assembly, Transmission No. 3 (No. 2) |
| SLN | Solenoid Assembly, Shift Control |
| SLT | Solenoid Assembly, Line Pressure Control |
| SLU | Solenoid Assembly, Lock--up Control |
NOTE:
Part numbers have not been included due to possible future part number changes. Refer to the parts catalog for proper current part number.
