Clutch Unit: Installation

1. Insert SST in the clutch disc, and then set them.
   1. SST 09301-00110
2. Align the matchmarks on the clutch cover and flywheel.
3. Following the procedures shown in Fig 1 , tighten the 6 bolts in the order starting the bolt locating near the knock pin on the top.

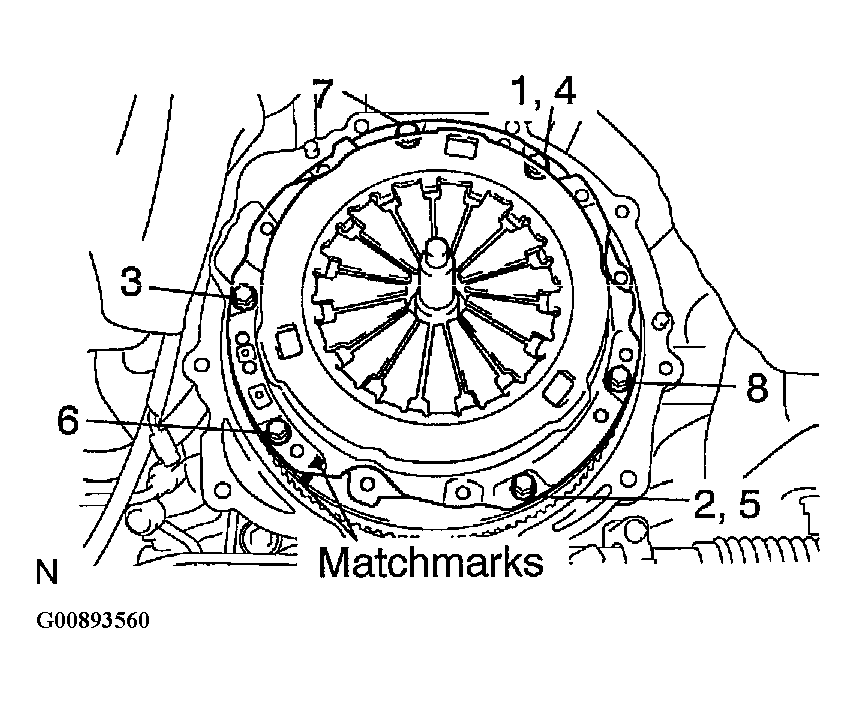

   Fig 1: Aligning Matchmarks On Clutch Cover & Flywheel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Torque: 19.1 N.m (195 kgf.cm, 14 ft.lbf)

   HINT:

   • Following the order in Fig 2 , tighten the bolts at a time evenly.
   • Move SST up and down, right and left lightly, after checking that the disc is in the center, tighten the bolts.

Using a dial indicator with roller instrument, check the diaphragm spring tip alignment.

1. Maximum non-alignment: 0.5 mm (0.020 in.)

If the alignment is not as specified, with SST, adjust the diaphragm spring tip alignment.

1. SST 09333-00013

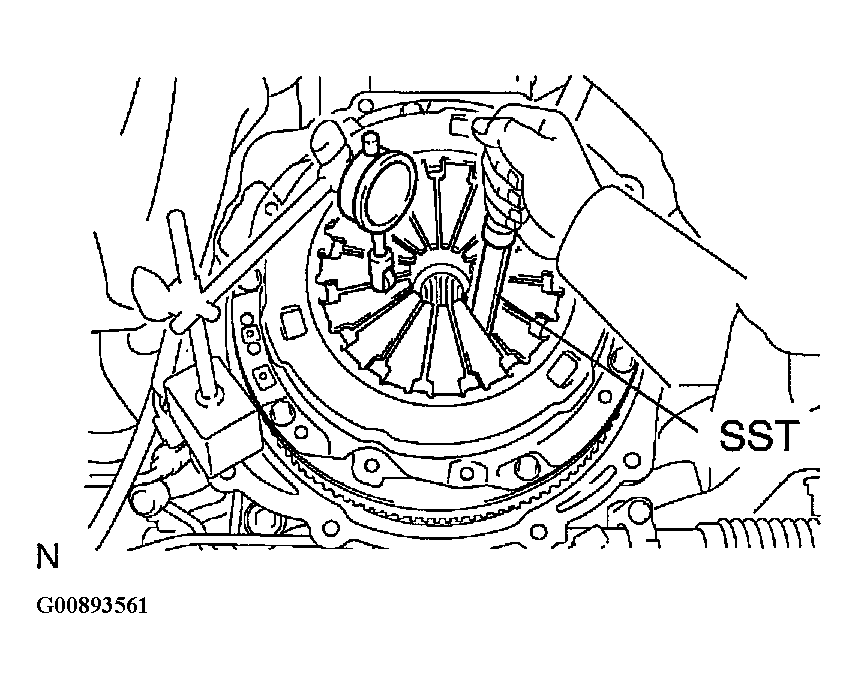

Fig 2: Checking Diaphragm Spring Tip Alignment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply release hub grease to the release fork and release bearing contact, release fork and push rod contact and release fork pivot points.

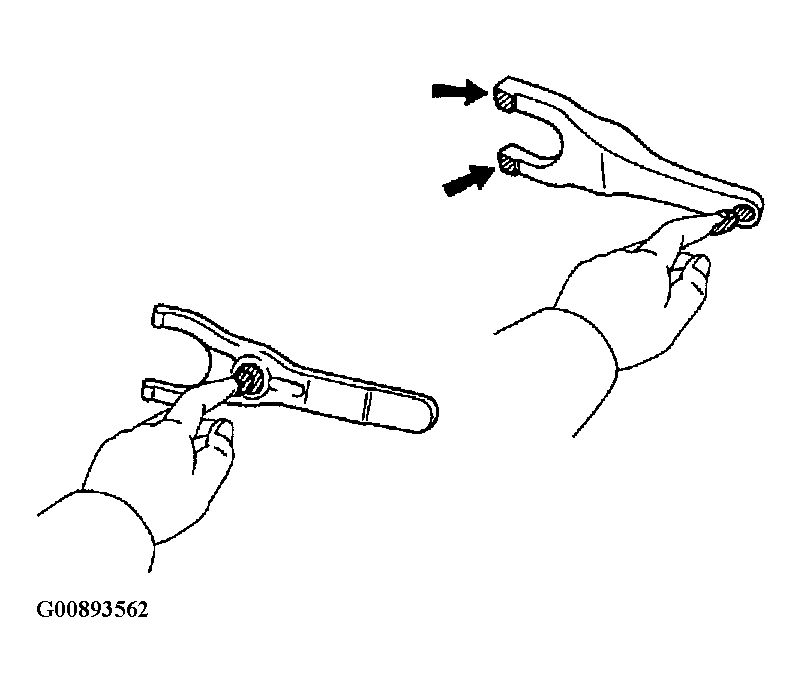

   Fig 3: Applying Release Hub Grease To Release Fork & Release Bearing Contact, Release Fork & Push Rod Contact & Release Fork Pivot Points

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply clutch spline grease to the clutch disc spline.

   HINT:

   Recommended grease part number 08887-01706 (100 g).

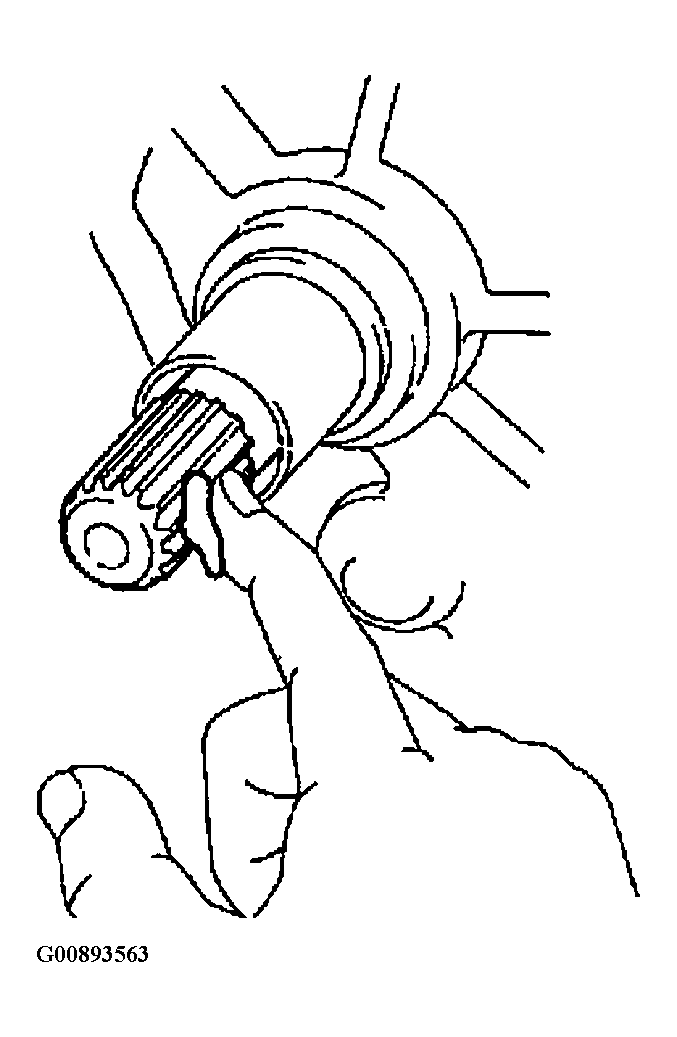

   Fig 4: Applying Clutch Spline Grease To Clutch Disc Spline

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the clip to the release bearing.
2. Install the release bearing to the release fork, and then install them to the transmission.
3. Install the boot to the transmission.
