Component Locations

WARNING: This page is about a different car, the 2003 Lexus GS 430, 2003 Lexus GS 300, 2002 Lexus GS 430, and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

For component locations, see Fig 1.

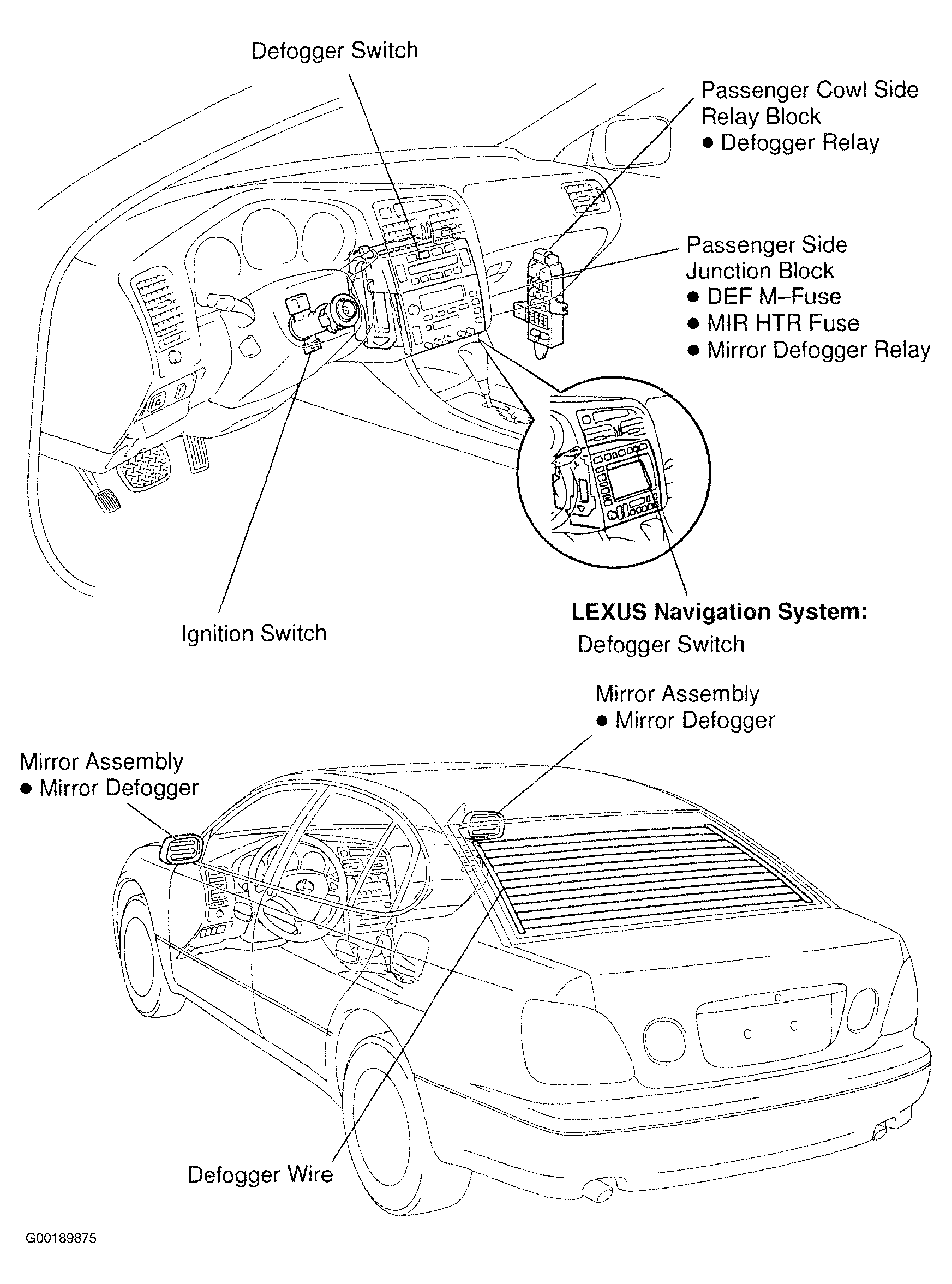

Fig 1: Identifying Rear Window Defogger & Heated Mirror Component Locations
G00189875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
