How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Perform troubleshooting in accordance with the procedure on the following page.

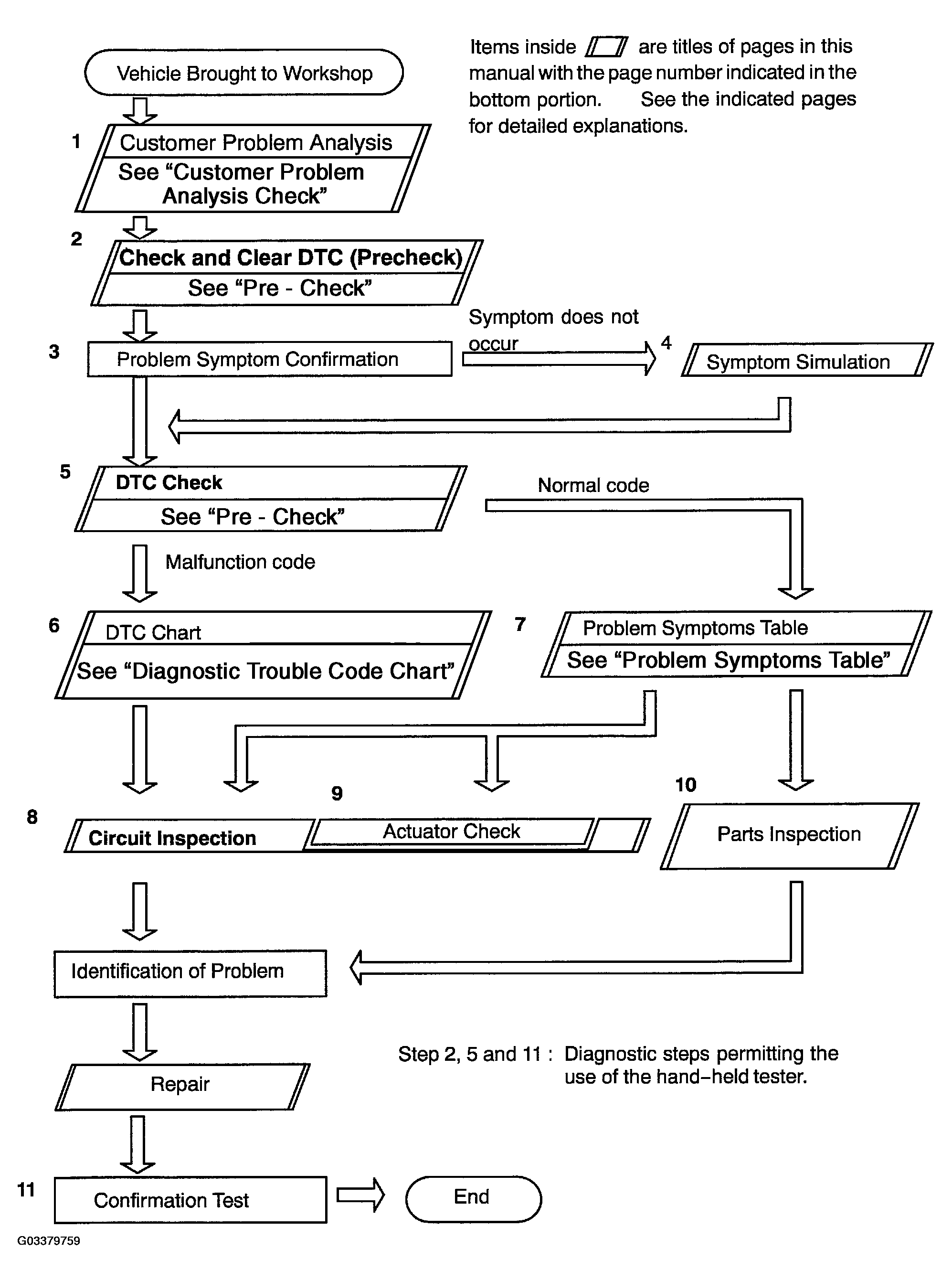

Fig 1: Troubleshooting Procedure Flow Chart
