Section 162 (2002 Air Conditioning): Condenser: Removal

WARNING: This page is about a different car, the 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Discharge Refrigerant From Refrigeration System
1. HINT:
2. At the time of installation, please refer to the following item. Evacuate air from refrigeration system.
3. Charge system with refrigerant and inspect for leakage of refrigerant.
4. Specified amount: 600 +/- 50 g (21.16 +/- 1.76 oz.)
Remove Air Cleaner Duct And Air Cleaner Assembly
Remove ECU Outlet Duct
Remove 2 Radiator Upper Supports
Remove the 2 bolts and upper supports.
Disconnect Discharge Hose And Liquid Tube
Remove the 2 bolts and disconnect the hose and tube.

Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.
1. HINT:
2. At the time of installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install them to the hose and tube.

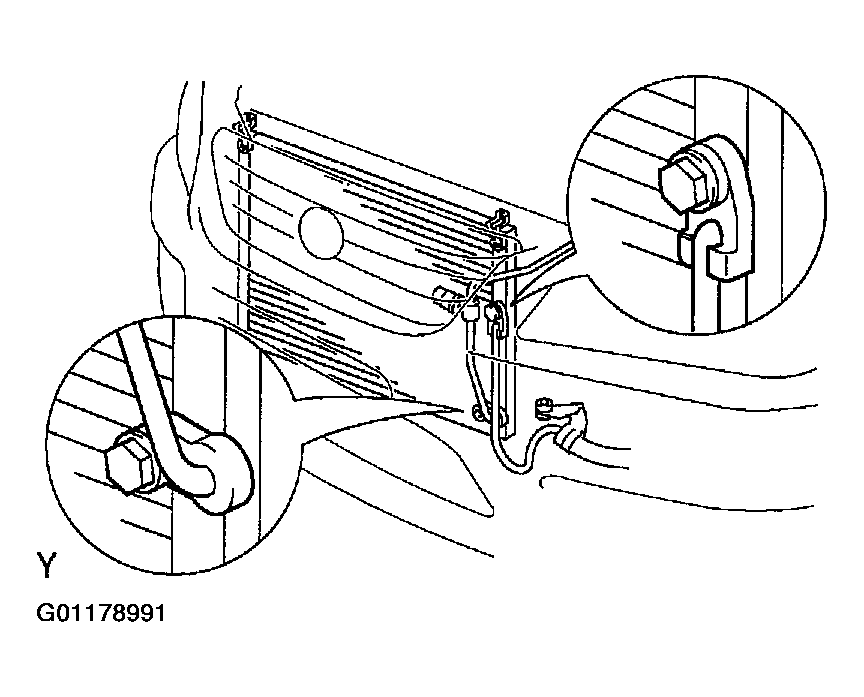

Fig 1: Identifying Bolts To Disconnect Hose & Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Condenser
1. Remove the 4 bolts and 2 brackets.
2. Push the radiator toward engine.
3. Push the condenser toward radiator and pull it upward.
1. HINT:
2. At the time of installation, please refer to the following item. If condenser is replaced, add compressor oil to the condenser.
3. Add 40 cc (1.4 fl. oz)
4. Compressor oil: ND - OIL 8 or equivalent

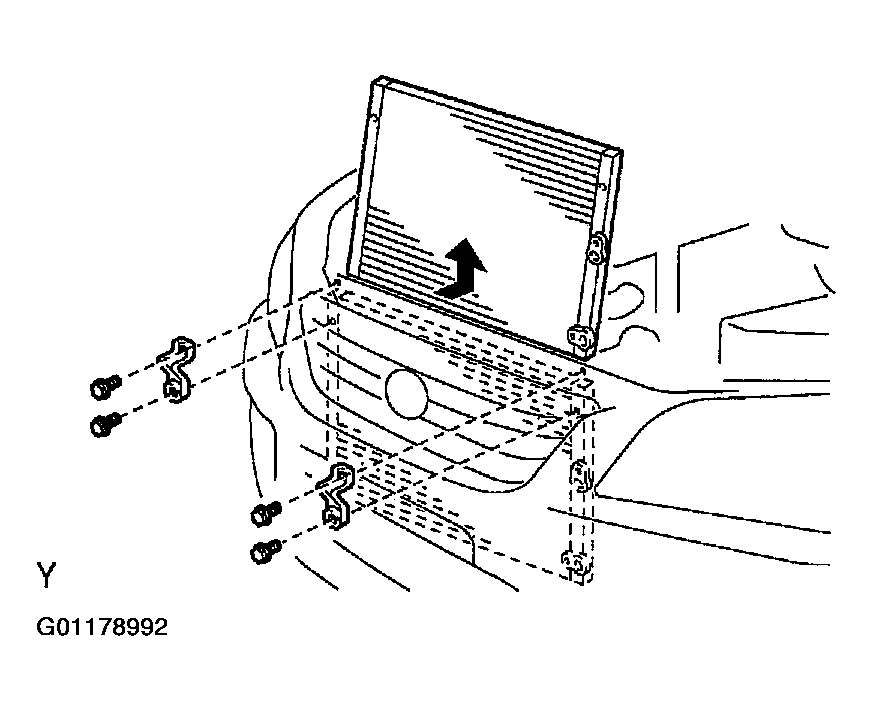

Fig 2: Removing Condenser & Brackets
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
