Component Locations

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

For rear defogger and heated mirror component locations, see Fig 1.

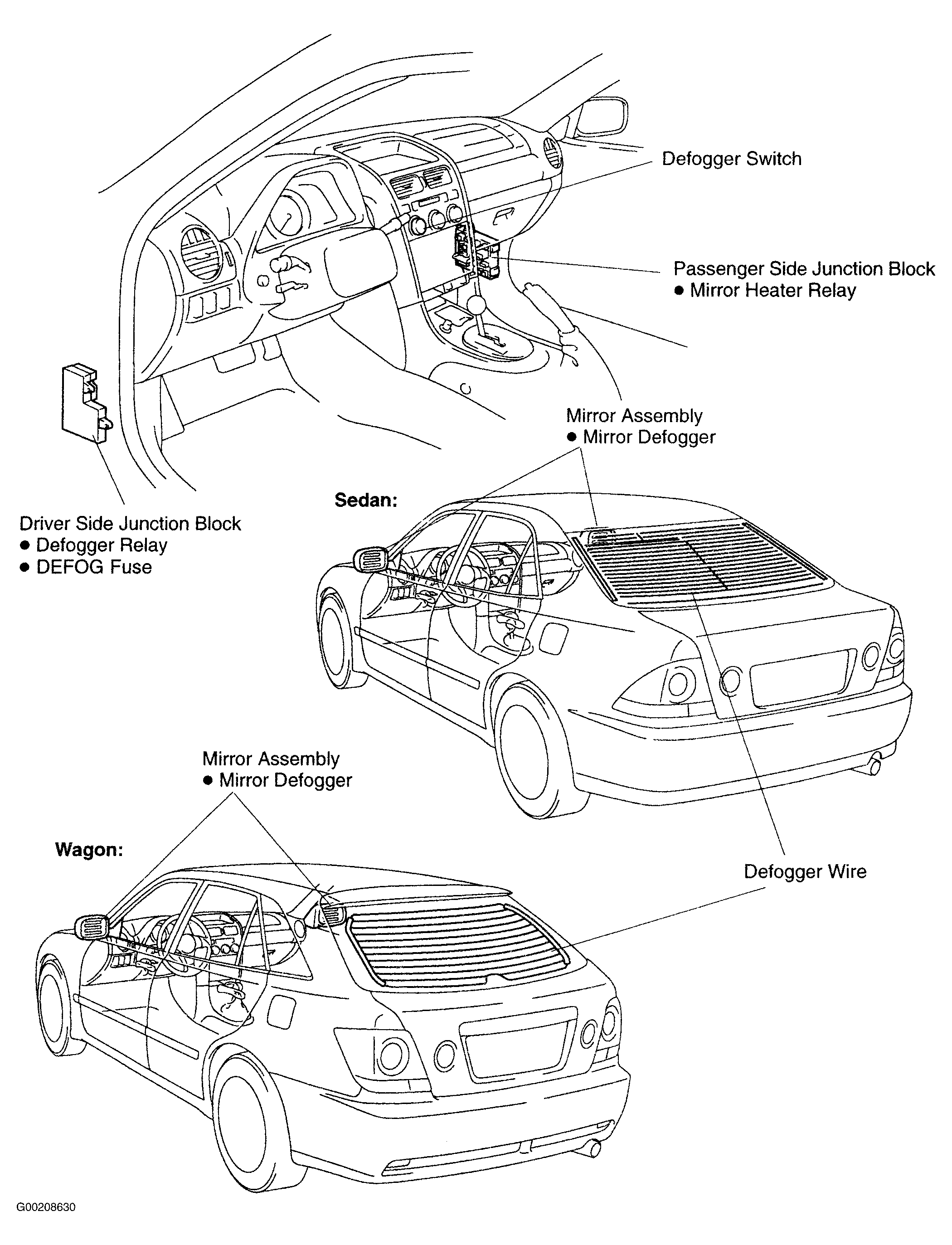

Fig 1: Identifying Rear Defogger & Heated Mirror Component Locations
G00208630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
