Fuel Pressure Pulsation Damper: Installation

1. Install the fuel inlet pipe and pulsation damper with 2 new gaskets.

   HINT:

   Different the gaskets are used for the upper (large side) and lower (small side).

   Fig 1: Installing Fuel Inlet Pipe And Pulsation Damper With Gaskets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, tighten the pulsation damper.
   1. SST 09612-24014 (09617-24011)
   2. Torque: 32.5 N.m (325 kgf.cm, 24 ft.lbf)
   Fig 2: Tightening Pulsation Damper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bolt holding the fuel inlet pipe to the intake manifold.
   1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
4. Install the nut holding the No. 2 vacuum pipe to the intake manifold.
   1. Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)
   Fig 3: Installing Nut & Bolt Holding No. 2 Vacuum Pipe & Fuel Inlet Pipe

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

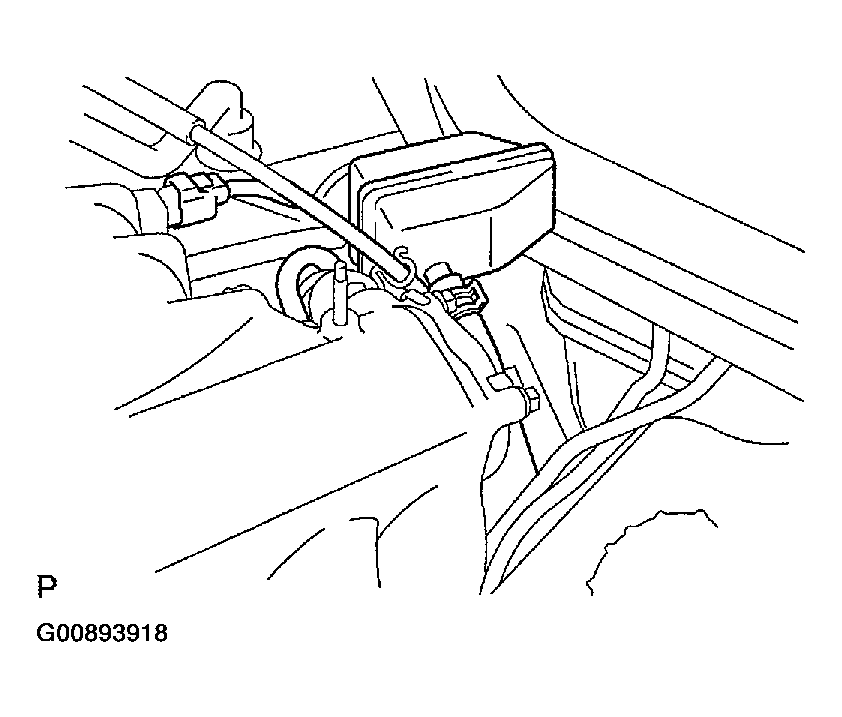

Fig 4: Connecting Connector & Hoses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the vacuum hose (from No. 2 vacuum pipe) to the air intake chamber.
2. Connect the EVAP hose to the EVAP pipe.
3. Connect the VSV connector for the EVAP.

Install the engine cover with the 4 nuts.
