Circuit Description

Refer to DTC P0130: Oxygen Sensor Circuit (Bank 1 Sensor 1), DTC P0150: Oxygen Sensor Circuit (Bank 2 Sensor 1), DTC P2195: Oxygen Sensor Signal Stack Lean (Bank 1 Sensor 1), DTC P2196: Oxygen Sensor Signal Stack Rich (Bank 1 Sensor 1), DTC P2197: Oxygen Sensor Signal Stack Lean (Bank 2 Sensor 1), DTC P2198: Oxygen Sensor Signal Stack Rich (Bank 2 Sensor 1)  .

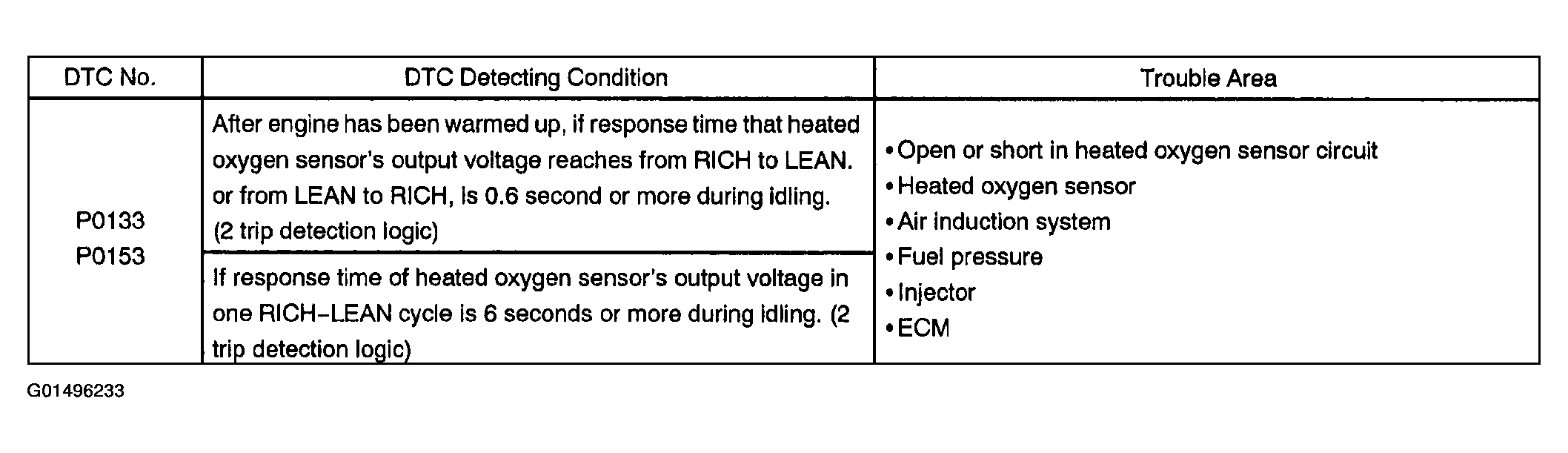

Fig 1: DTC P0133 & P0153 Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Bank 1 refers to bank that includes cylinder No.2.
• Bank 2 refers to bank that does not include cylinder No.2.
• Sensor 1 refers to the sensor closer to the engine body.
