Monitor Strategy

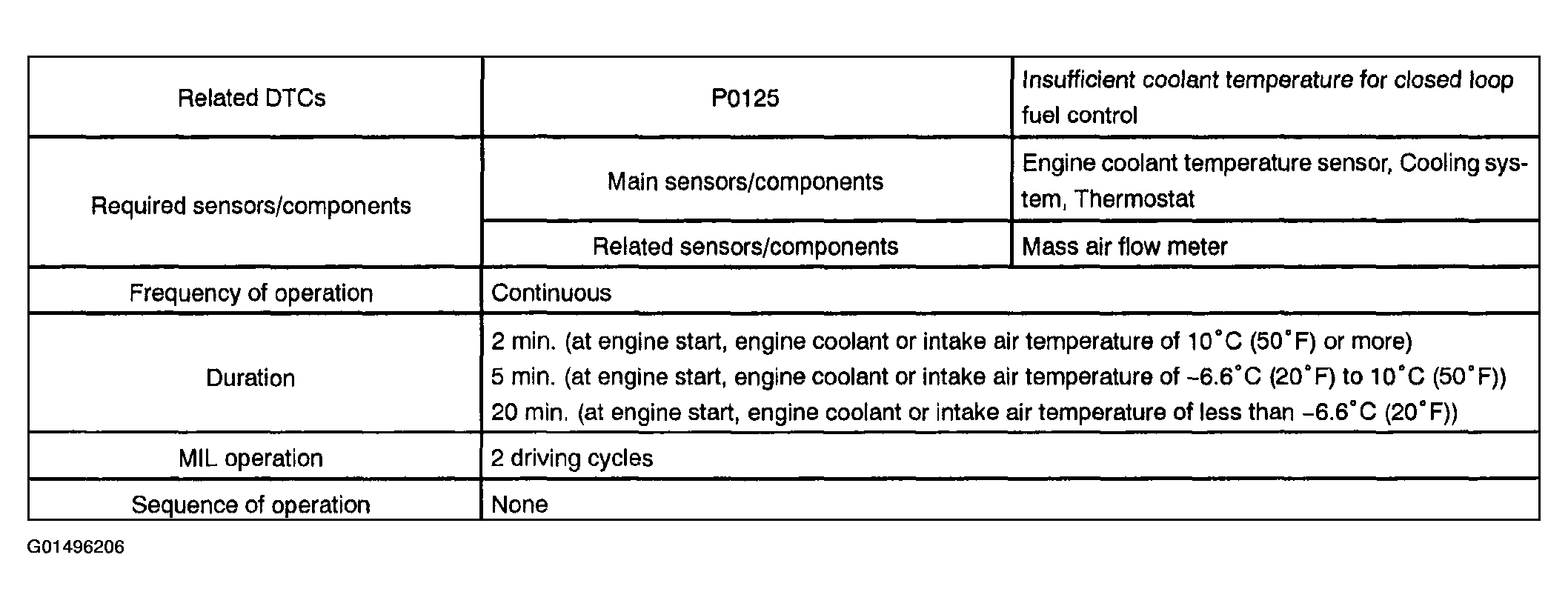

Fig 1: Monitor Strategy Chart
G01496206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
