Roof Headlining: Wagon: Components

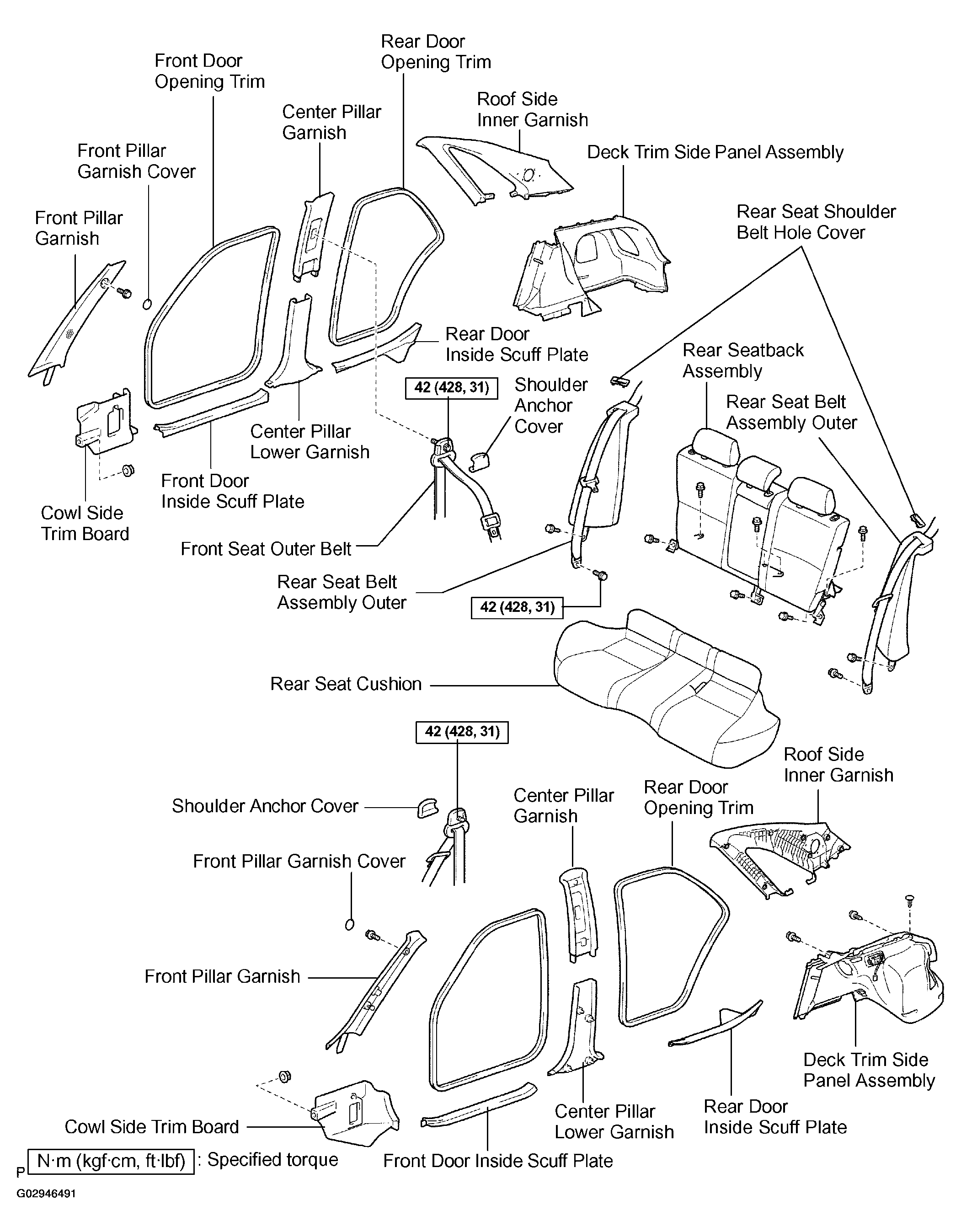

Fig 1: Identifying Roof Headlining Components (1 Of 3)
G02946491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

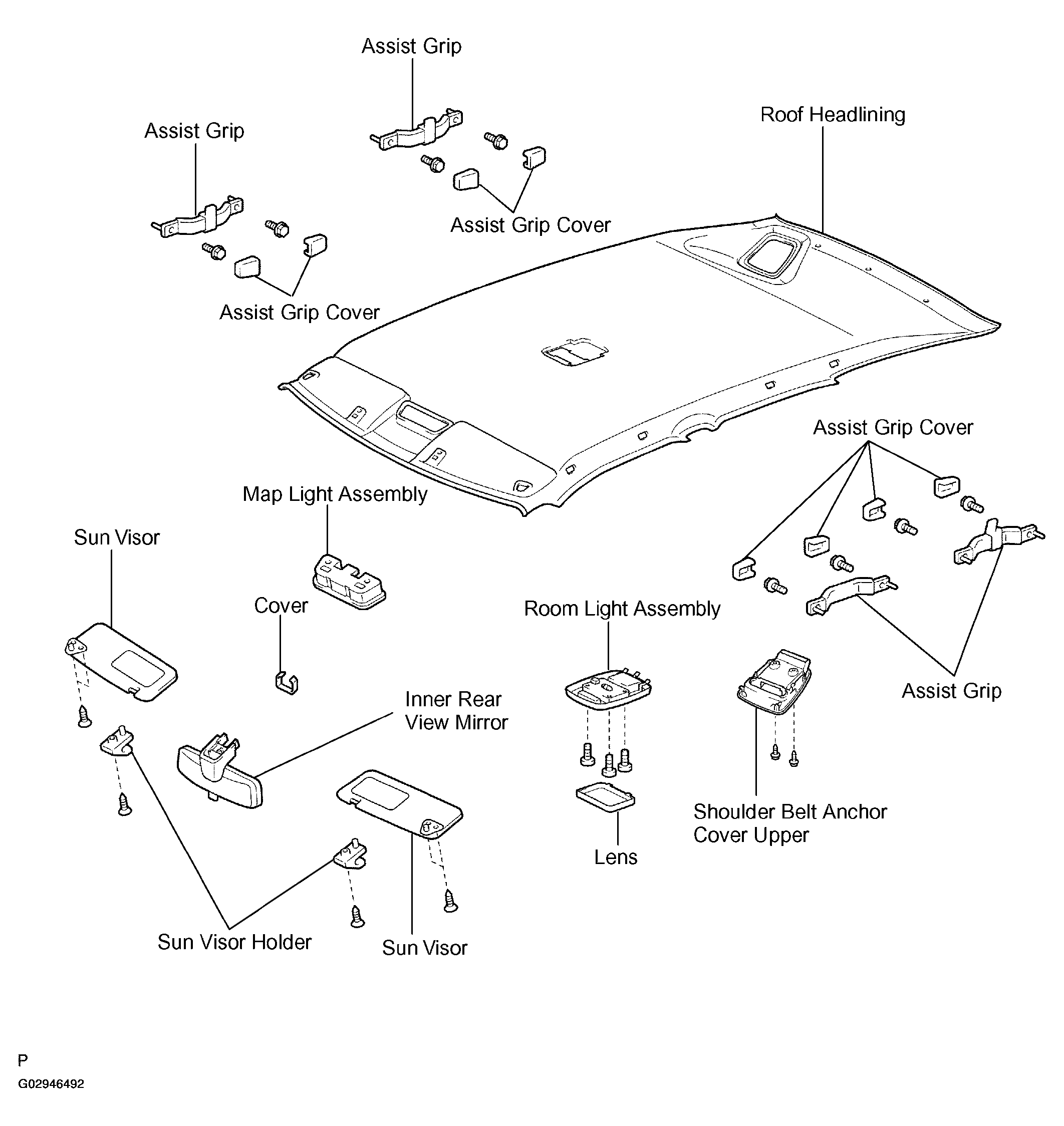

Fig 2: Identifying Roof Headlining Components (2 Of 3)
G02946492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

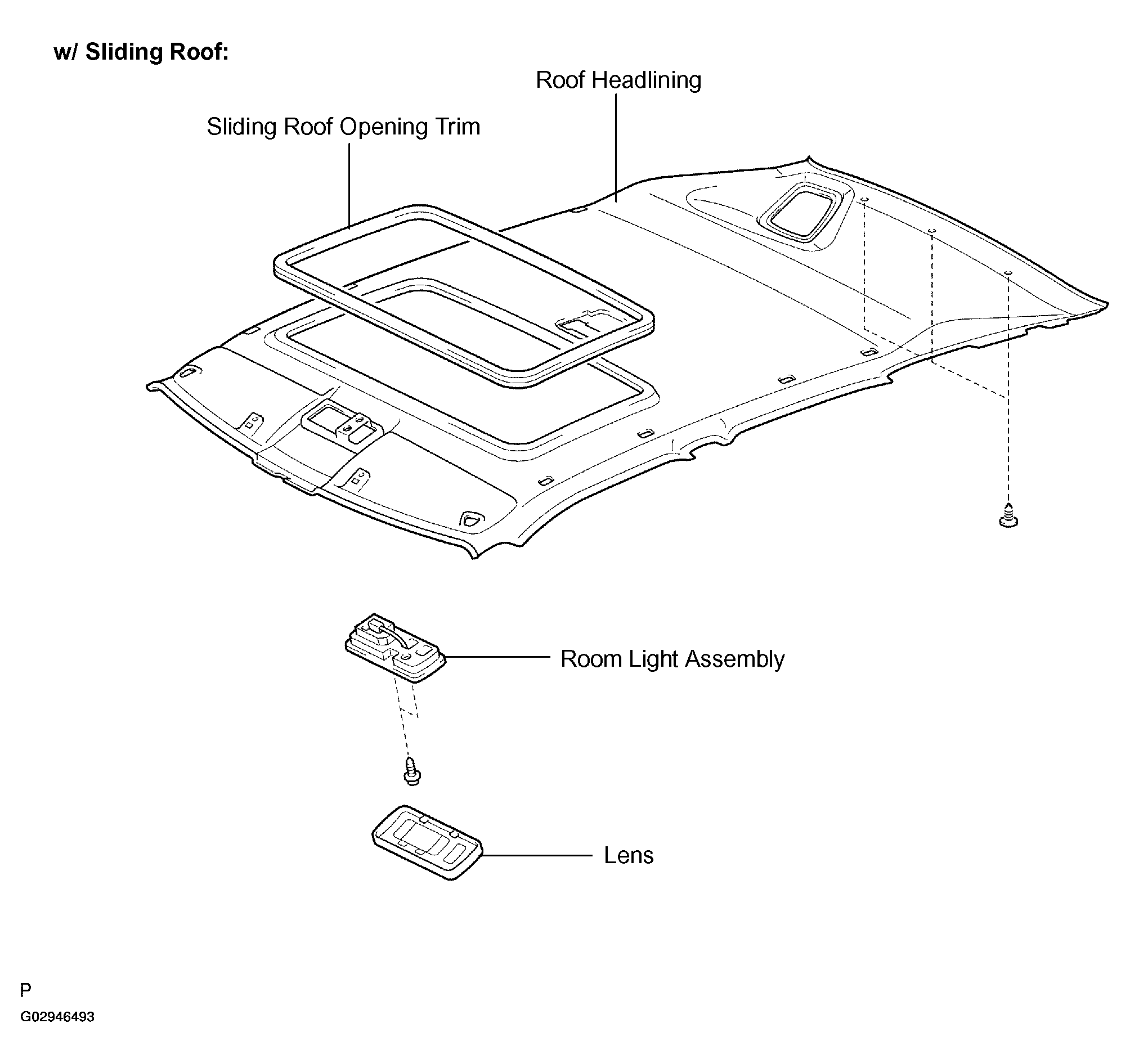

Fig 3: Identifying Roof Headlining Components (3 Of 3)
G02946493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
