Roof Headlining: Sedan: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart, (see STANDARD BOLT (SERVICE SPECIFICATIONS) )

1. REMOVE REAR SEAT CUSHION (See  REMOVAL  )
2. REMOVE REAR SEATBACK (See  REMOVAL  )
3. REMOVE FRONT DOOR INSIDE SCUFF PLATE
   1. Using a screwdriver, remove the front door inside scuff plate as shown in Fig 1 .

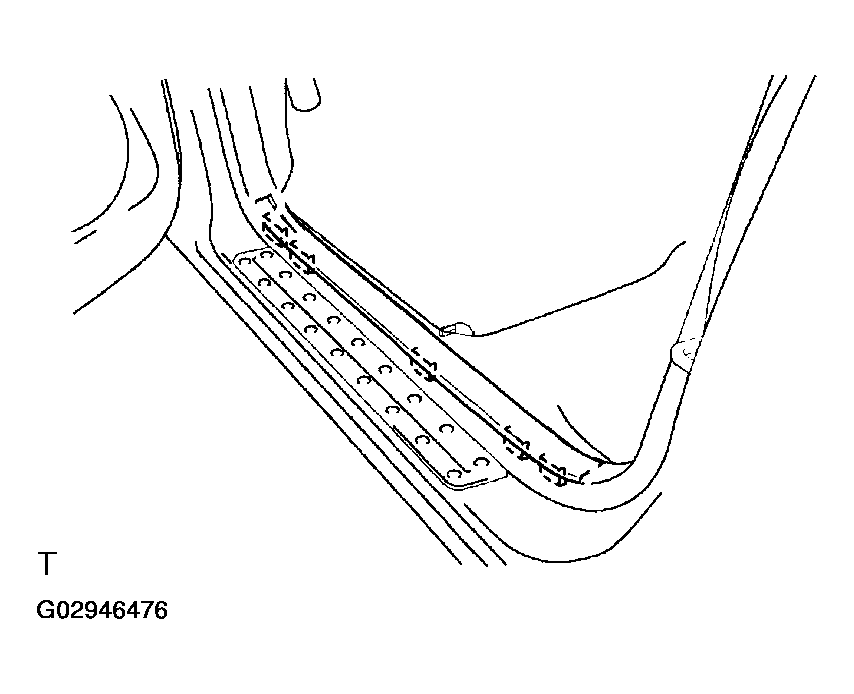

      Fig 1: Removing Front Door Inside Scuff Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

   2. Employ the same manner described above to the other side.
4. REMOVE REAR DOOR INSIDE SCUFF PLATE
   1. Using a screwdriver, remove the rear door inside scuff plate as shown in Fig 2 .
      Fig 2: Removing Rear Door Inside Scuff Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

   2. Employ the same manner described above to the other side.
5. REMOVE COWL SIDE TRIM BOARD
   1. Remove the clip and cowl side trim board.

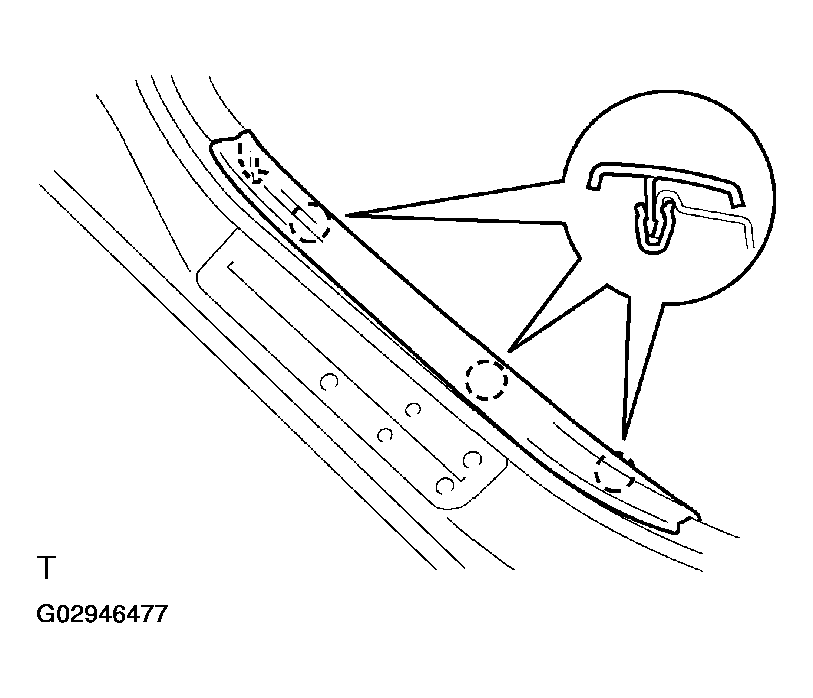

      Fig 3: Removing Clip And Cowl Side Trim Board

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Employ the same manner described above to the other side.
6. REMOVE FRONT DOOR OPENING TRIMS
7. REMOVE REAR DOOR OPENING TRIMS
8. REMOVE CENTER PILLAR LOWER GARNISH
   1. Using a screwdriver, remove the center pillar lower garnish.

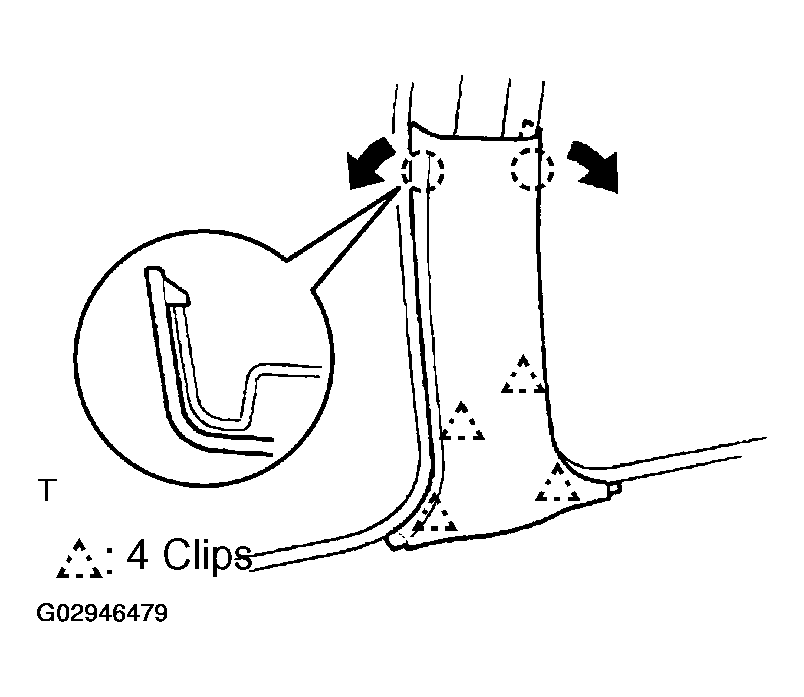

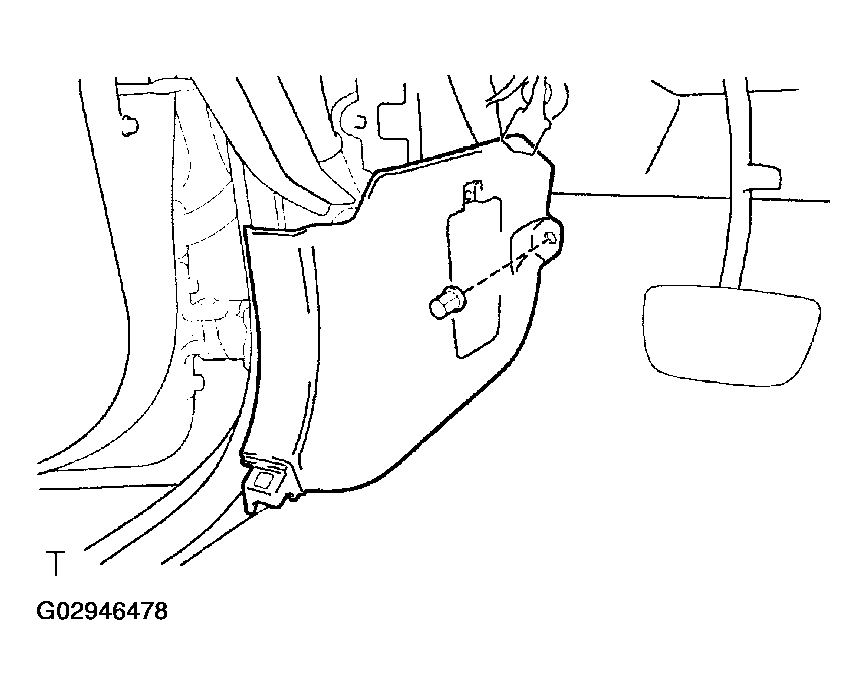

      Fig 4: Removing Center Pillar Lower Garnish

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

   2. Employ the same manner described above to the other side.
9. REMOVE FRONT SEAT OUTER BELT SHOULDER ANCHOR
   1. Using a screwdriver, remove the anchor cap.

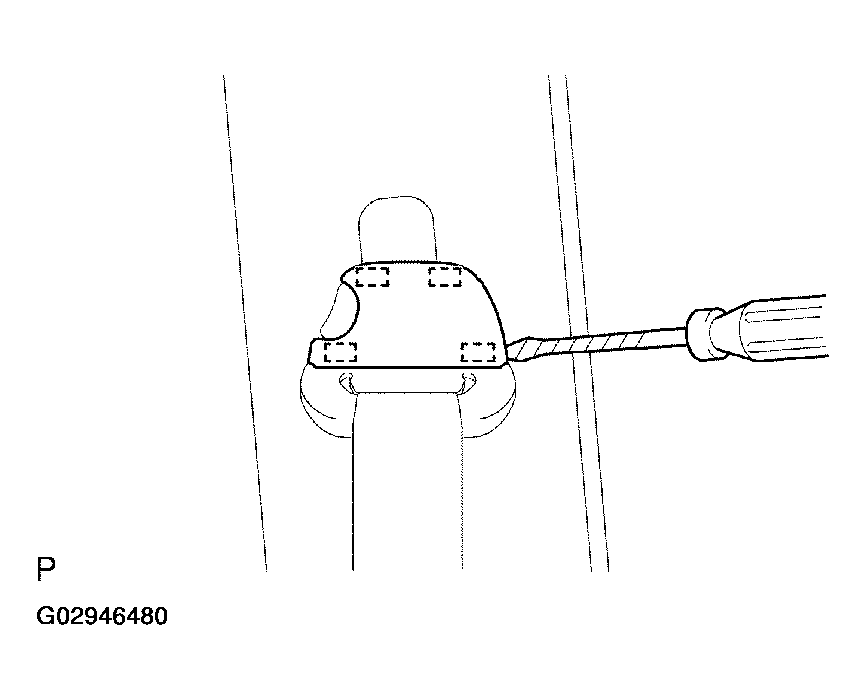

      Fig 5: Removing Anchor Cap

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the bolt and front seat outer belt shoulder anchor.
      1. Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
   3. Employ the same manner described above to the other side.
10. REMOVE CENTER PILLAR GARNISH
    1. Remove the 2 screws.
    2. Using a screwdriver, remove the center pillar garnish.

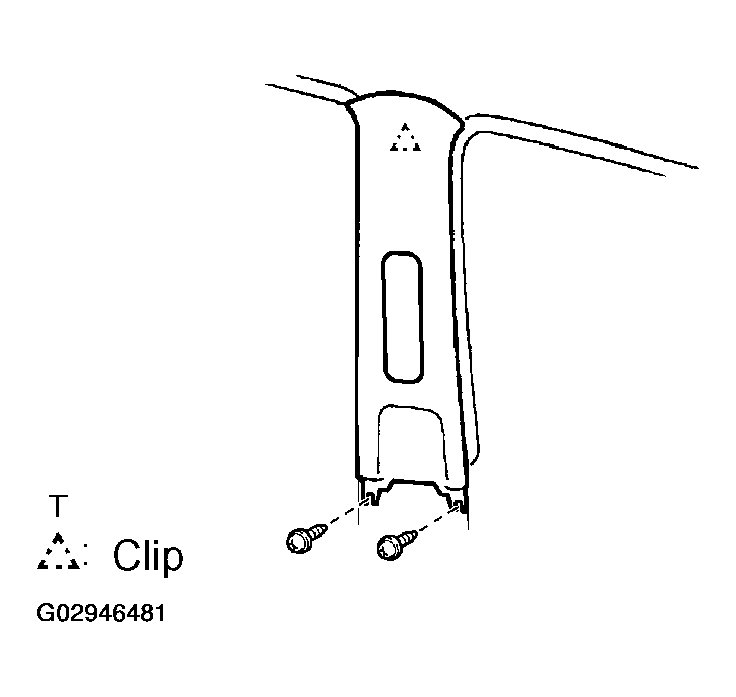

       Fig 6: Removing Center Pillar Garnish

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Tape the screwdriver tip before use.

    3. Employ the same manner described above to the other side.
11. REMOVE ROOF SIDE INNER GARNISH
    1. Using a screwdriver, remove the roof side inner garnish.

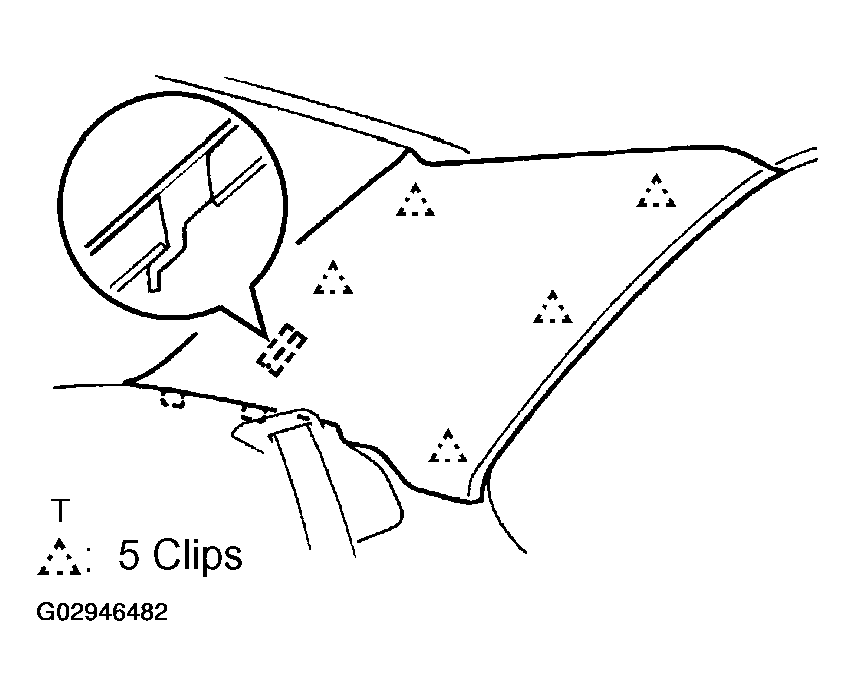

       Fig 7: Removing Roof Side Inner Garnish

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Tape the screwdriver tip before use.

    2. Employ the same manner described above to the other side.
12. REMOVE FRONT PILLAR GARNISH
    1. Using a screwdriver, remove the front pillar garnish cover.
       Fig 8: Removing Front Pillar Garnish Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the bolt.
    3. Using a screwdriver, remove the front pillar garnish.

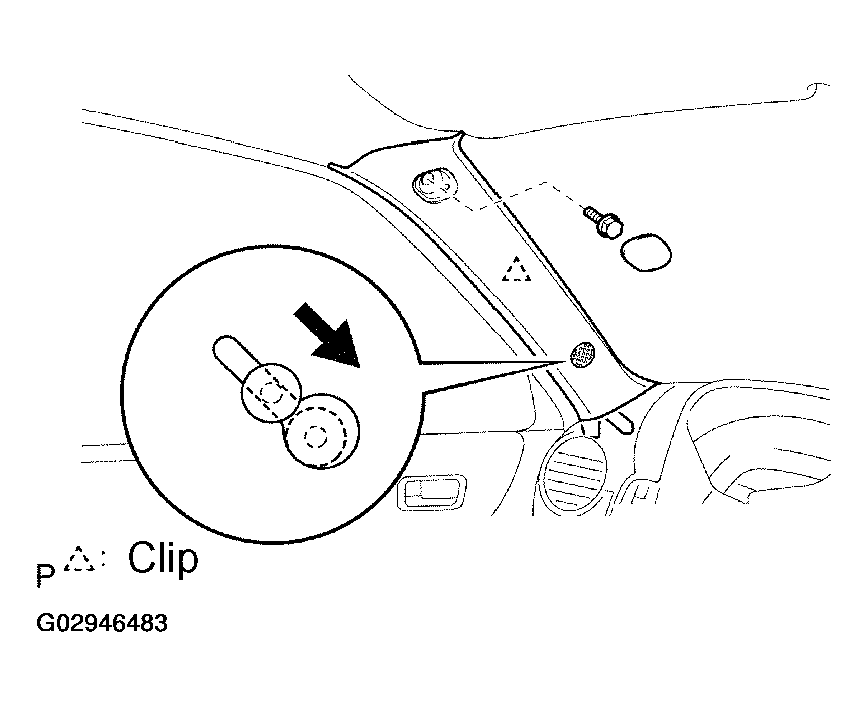

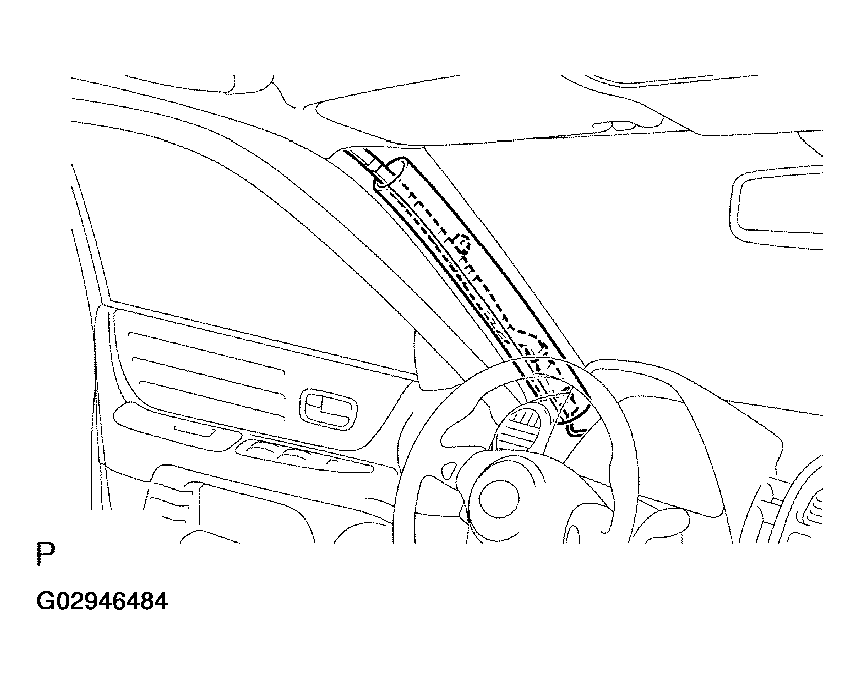

       Fig 9: Removing Front Pillar Garnish

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt.
    5. Pack the airbag with protection cover.
    6. Employ the same manner described above to the other side.
13. w/o Sliding roof:
    1. REMOVE MAP LIGHT ASSEMBLY
    1. Using a moulding remover, remove the lens.
    2. Remove the 2 screws and the map light assembly.
    3. Disconnect the connector.

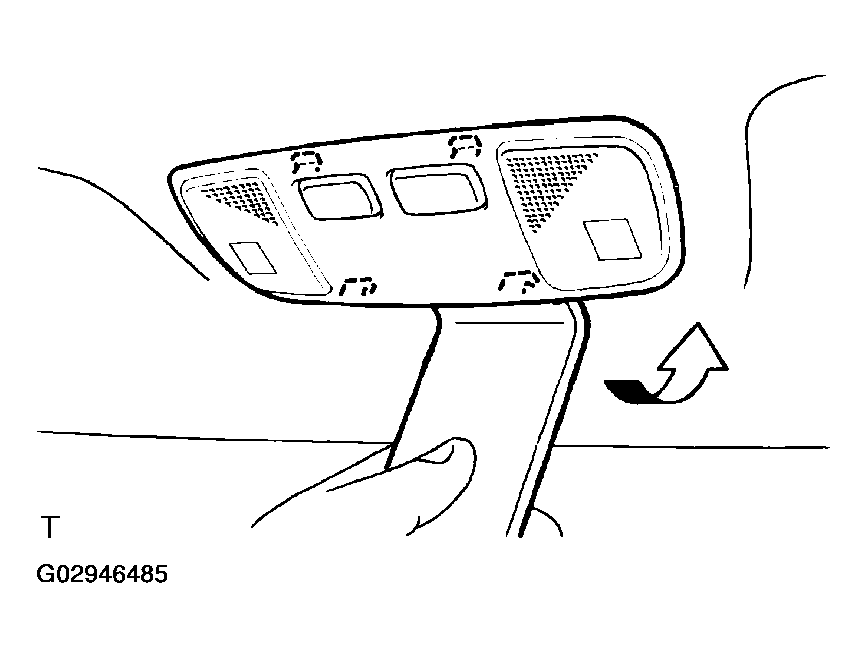

       Fig 10: Removing Map Light Assembly (W/O Sliding Roof)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. w/Sliding roof:
    1. REMOVE MAP LIGHT ASSEMBLY
    1. Using a moulding remover, remove the cover.
    2. Remove the 2 screws and the map light assembly.
    3. Disconnect the connector.

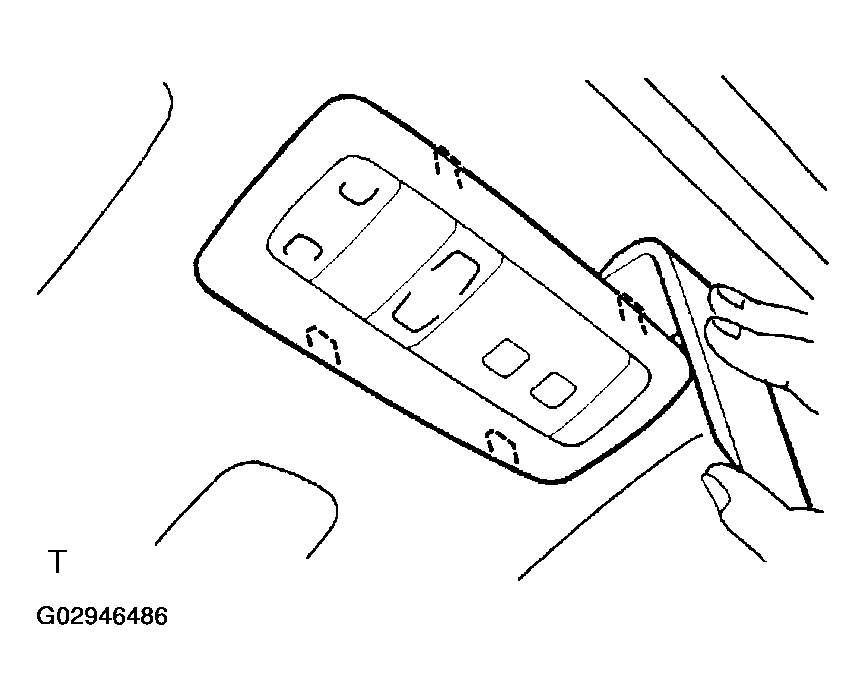

       Fig 11: Removing Map Light Assembly (W/Sliding Roof)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, remove the lens.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the 2 screws and the room light assembly.
    3. Disconnect the connector.

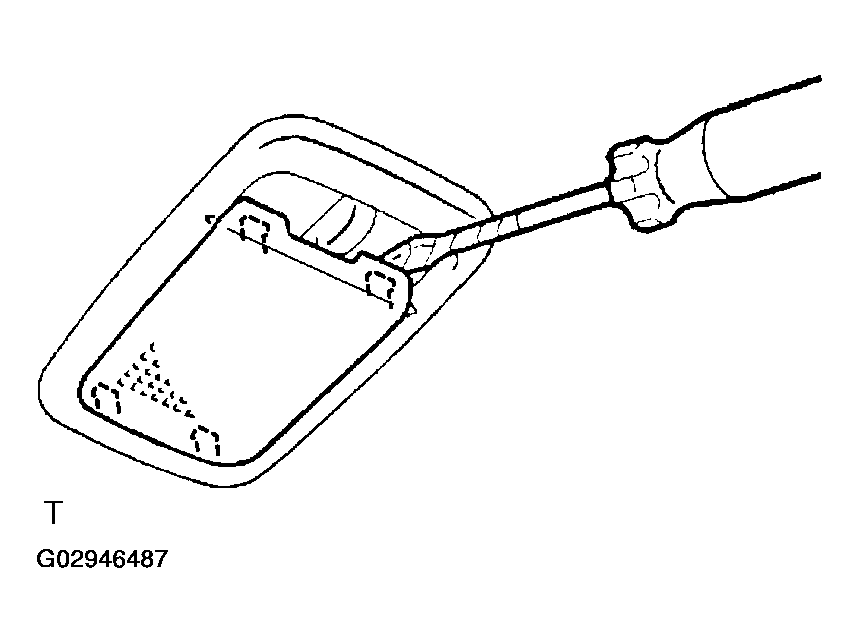

    Fig 12: Removing Room Light Assembly

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. w/Sliding roof:
    1. REMOVE ROOF OPENING TRIM
17. REMOVE INNER REAR VIEW MIRROR
    1. Using a screwdriver, remove the inner rear view mirror stay holder cover.

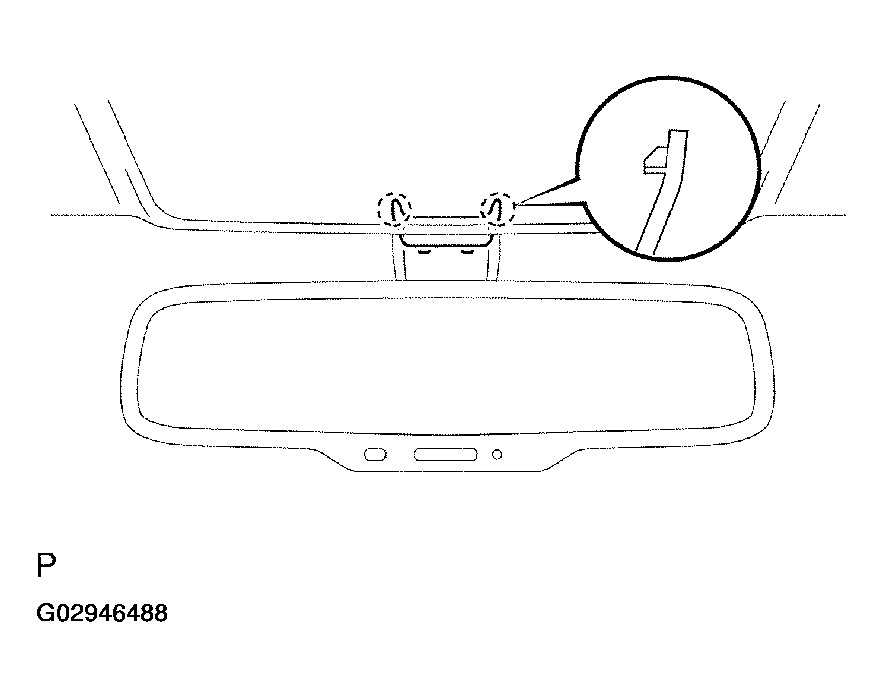

       Fig 13: Removing Inner Rear View Mirror Stay Holder Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Tape the screwdriver tip before use.

    2. Electro chromic inner mirror:

       Disconnect the connector.

    3. Remove the mirror assembly by turning the stay part of the mirror counterclockwise.

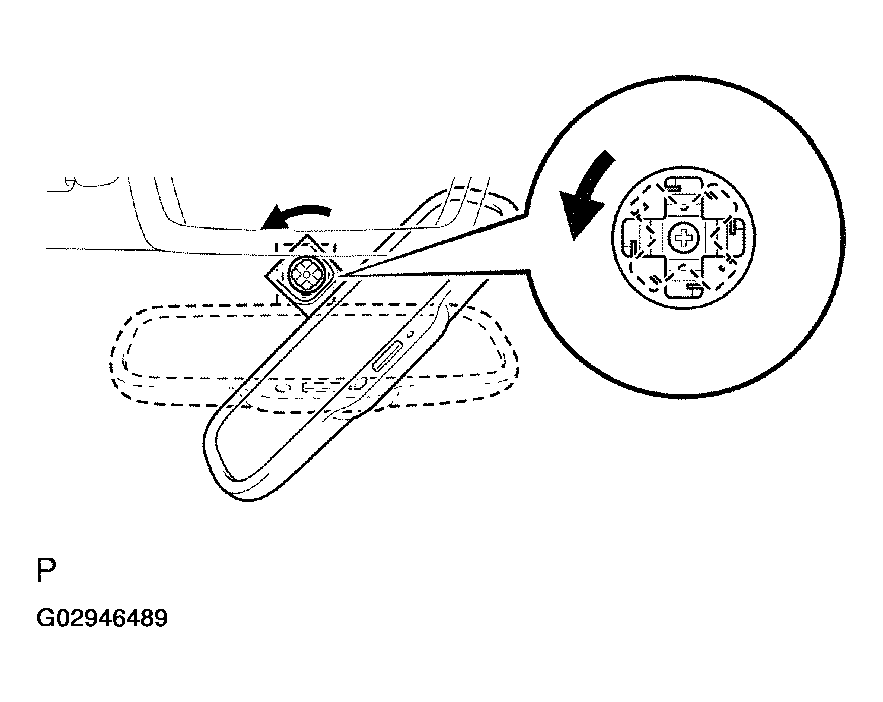

       Fig 14: Removing Mirror Assembly Turning Stay Part Of Mirror Counterclockwise

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE ASSIST GRIPS
    1. Using a screwdriver, remove the caps.

       HINT:

       Tape the screwdriver tip before use.

    2. Remove the 6 bolts and 3 assist grips.
19. REMOVE SUN VISORS
    1. Remove the 4 screws and pull the sun visors downward.
    2. Disconnect the connectors.
20. REMOVE SUN VISOR HOLDERS

    Remove the 2 screws and 2 holders.

21. REMOVE ROOF HEADLINING
    1. Remove the 2 clips.
    2. Pull the roof headlining downward to remove it.

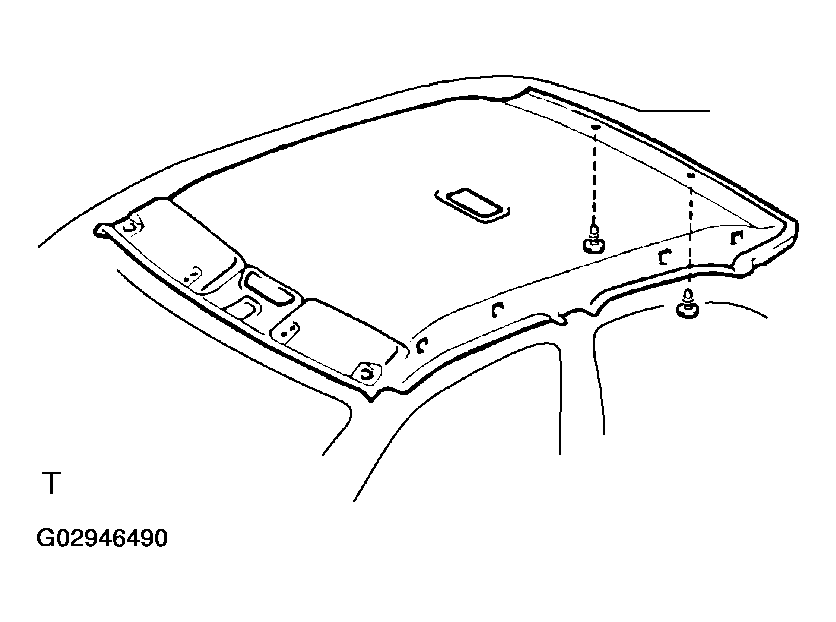

       Fig 15: Removing Roof Headlining

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
