Rear Door: Components

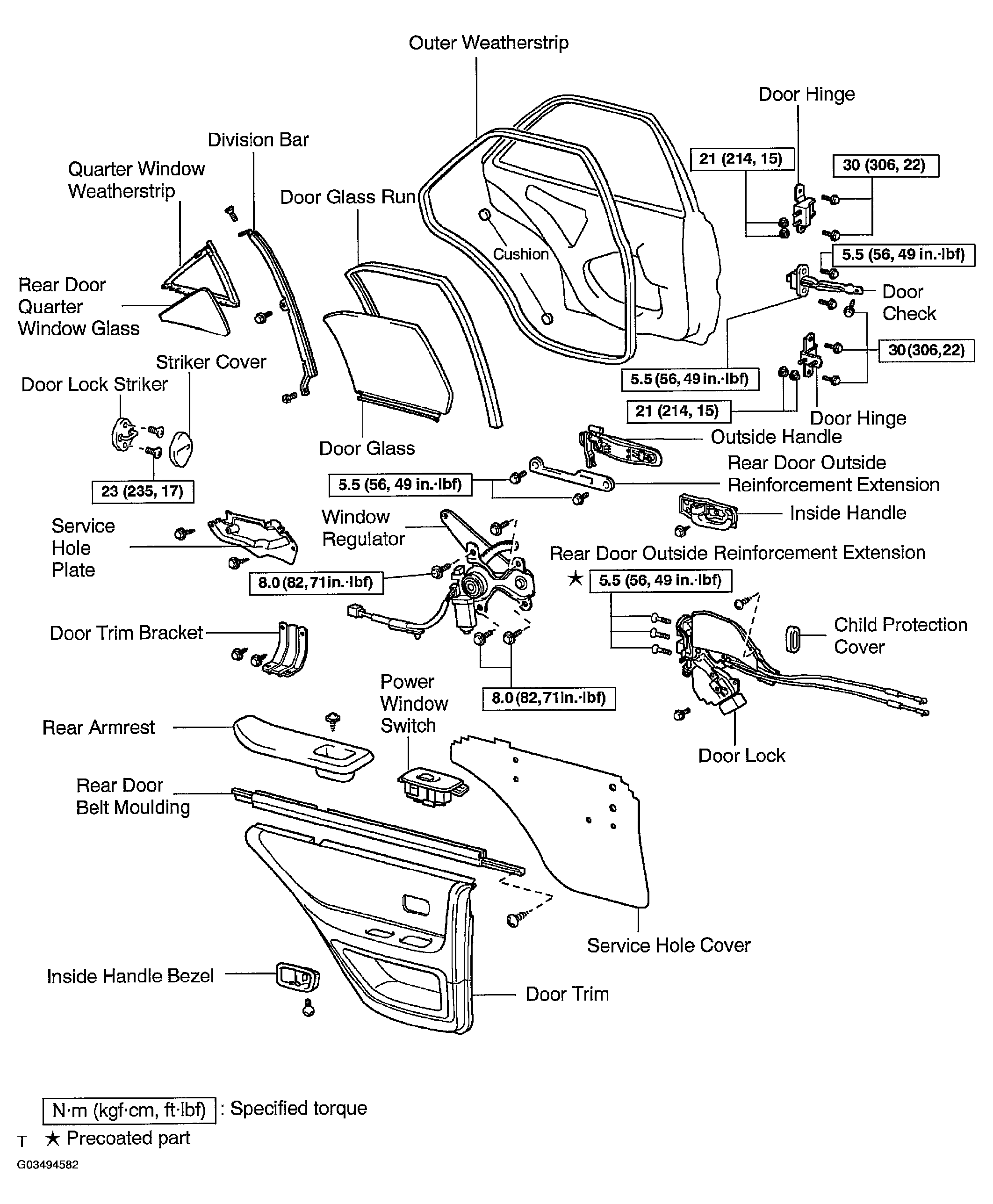

Fig 1: Identifying Rear Door Component

G03494582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
